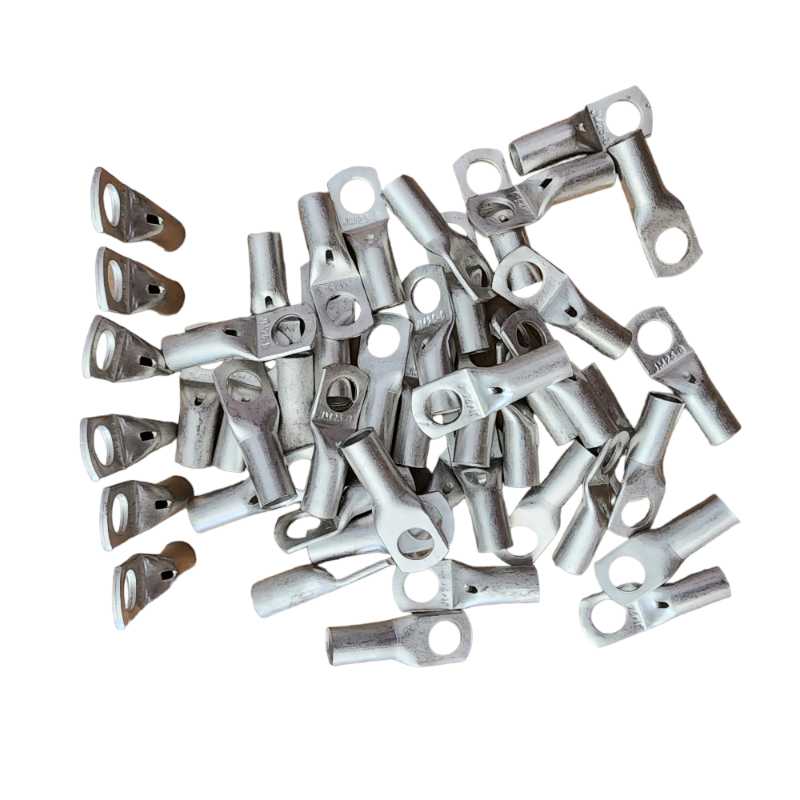

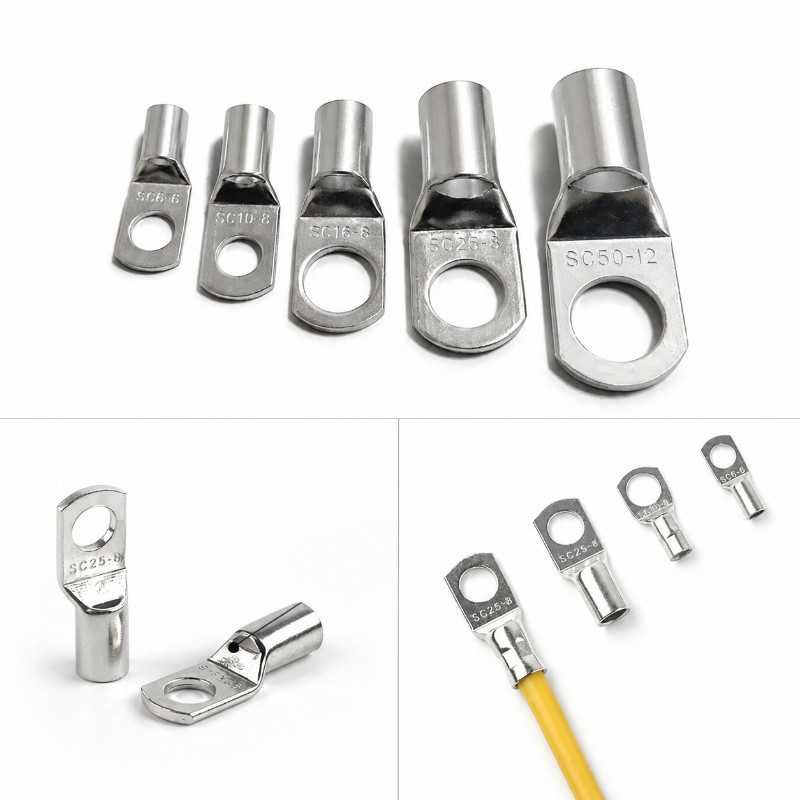

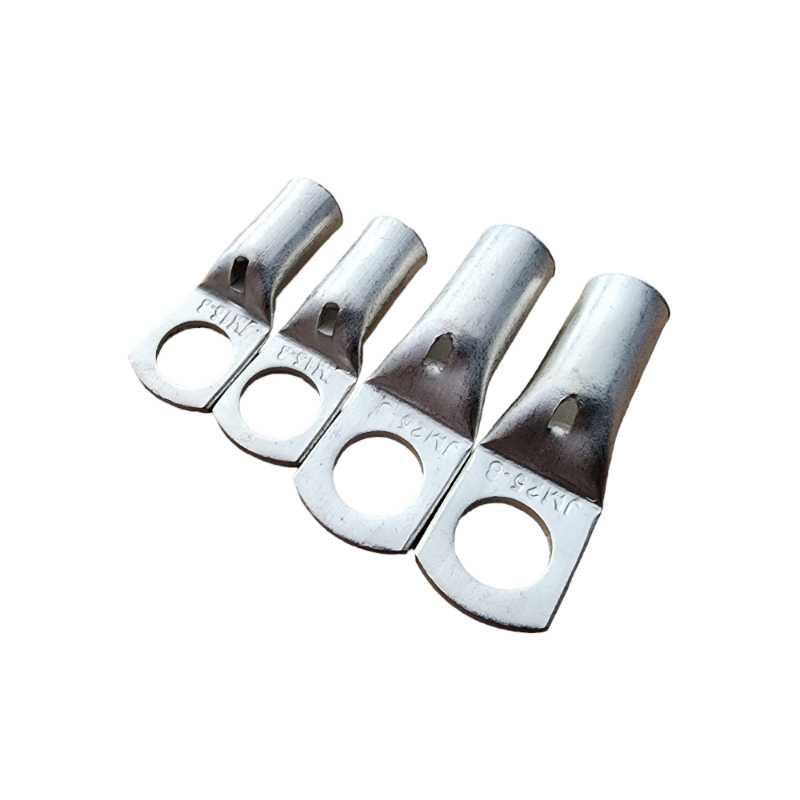

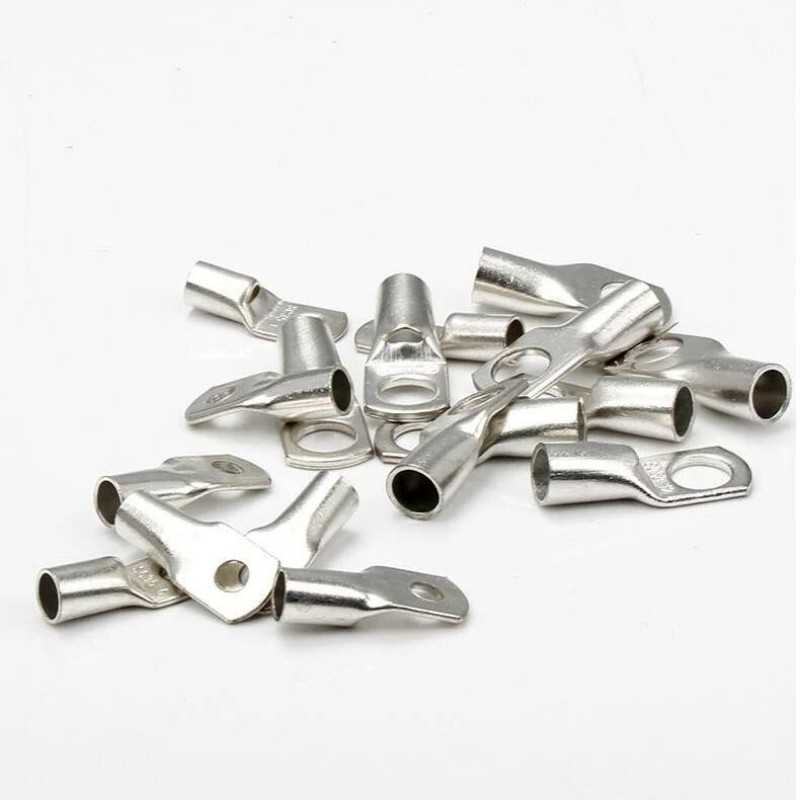

16mm² Copper Battery Cable Lug

Product Description

Key Features

16mm² Cable Compatibility

Pure Copper Construction

Nickel-Plated Finish

Excellent Electrical Conductivity

Low Electrical Resistance

Improved Corrosion & Oxidation Resistance

Heavy-Duty Construction

Suitable for High-Current DC Connections

Designed for 16mm² Flexible Battery Cable

Suitable for LiFePO4 Batteries

Suitable for Lithium Battery Systems

Suitable for Solar Systems

Suitable for Inverter Batteries

Suitable for UPS Systems

Suitable for EV Battery Packs

Suitable for Battery Cabinets

Suitable for Energy Storage Systems

Technical Specifications

Specification Details

Product Type Battery Cable Lug / Terminal Lug

Cable Size 16mm²

Material Pure Copper

Surface Finish Nickel Plated

Construction Heavy-Duty

Cable Compatibility 16mm² Battery Cable

Electrical Application DC Battery Connection

Battery Chemistry LiFePO4 & Compatible Lithium Batteries

Applications Solar, Inverter, UPS, EV & Energy Storage

Important: 16mm² refers to the compatible cable conductor size. The mounting-hole diameter must be checked separately according to the battery, busbar or equipment terminal.

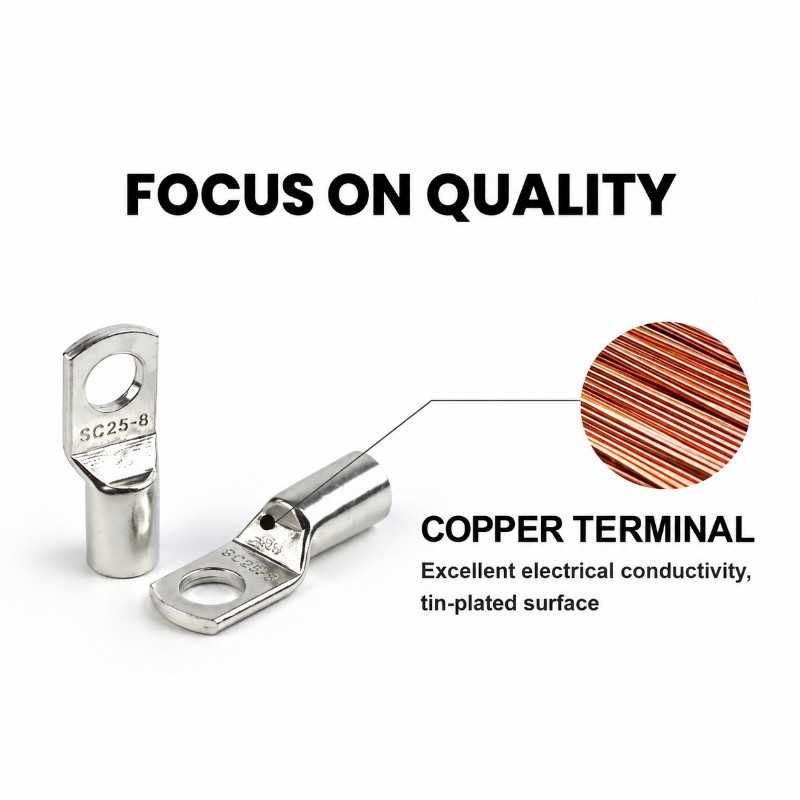

Pure Copper Construction

The lug is manufactured from pure copper, providing excellent electrical conductivity for battery and DC power connections.

Benefits of Pure Copper

Excellent conductivity

Low electrical resistance

Efficient current transfer

Reduced connection losses

Reliable high-current connection

Suitable for battery and inverter applications

Nickel-Plated Surface

The copper lug is finished with a nickel-plated coating.

Nickel plating helps provide additional protection against:

Oxidation

Corrosion

Surface deterioration

Environmental exposure

This makes the lug suitable for demanding battery and DC power installations.

Designed for 16mm² Battery Cable

This lug is specifically designed for:

16mm² Battery Cable

It is an ideal matching terminal for 16mm² full-gauge pure copper flexible DC cable.

A properly sized cable combined with a correctly crimped lug helps create a secure and reliable electrical connection.

Suitable LiFePO4 Battery Applications

The 16mm² nickel-plated copper lug can be used for appropriately designed:

12V LiFePO4 Batteries

12.8V 27Ah

12.8V 50Ah

12.8V 100Ah

24V LiFePO4 Batteries

25.6V 50Ah

25.6V 100Ah

25.6V 200Ah

48V / 51.2V LiFePO4 Batteries

51.2V 50Ah

51.2V 100Ah

51.2V 200Ah

Note: Battery Ah capacity does not determine lug size by itself. Cable size, required current and terminal/stud size should all be considered.

Suitable Applications

🔋 LiFePO4 Battery Packs

Suitable for making reliable DC connections in LiFePO4 battery assemblies where 16mm² cable is required.

⚡ Inverter Batteries

Suitable for battery-to-inverter connections when the cable, lug and terminal are correctly sized.

☀️ Solar Systems

Suitable for solar battery and energy-storage installations.

🏠 Home Backup

Useful for appropriately designed residential LiFePO4 backup systems.

🔌 UPS Systems

Suitable for compatible DC battery connections in UPS systems.

🚗 EV Battery Packs

Can be used in suitable EV battery applications where the cable and terminal specifications match the required current.

🏢 Energy Storage

Suitable for appropriately designed commercial and residential energy-storage systems.

Installation Guide

For a secure and reliable connection:

Select the correct 16mm² cable.

Strip the cable to the appropriate length.

Fully insert the copper conductor into the lug barrel.

Use a suitable heavy-duty crimping tool.

Ensure the crimp is secure.

Connect the lug to the correct terminal/stud.

Tighten according to the equipment manufacturer's recommended torque.

Ensure the connection is properly insulated and protected.

Important

For high-current battery applications, proper mechanical crimping is recommended. Do not rely on solder alone for the main battery connection.

Why Choose Nickel-Plated Copper Lug?

Pure Copper

Excellent electrical conductivity and low resistance.

Nickel Plating

Provides additional surface protection against oxidation and corrosion.

16mm² Compatibility

Designed specifically for 16mm² battery cable.

Flexible Cable Support

Suitable for flexible multi-strand battery cables.

Heavy-Duty Design

Suitable for demanding battery, solar and inverter installations.

Recommended Combination

For a professional battery installation:

16mm² Full-Gauge Pure Copper Flexible DC Cable

16mm² Pure Copper Nickel-Plated Battery Lug

Proper Heavy-Duty Crimping

Correctly Rated DC Fuse/Breaker

This combination provides a reliable foundation for appropriately designed DC battery connections.

Package Includes

1 × 16mm² Pure Copper Nickel-Plated Battery Cable Lug

Important Note

Please verify the 16mm² cable size and terminal/stud hole size before ordering. The 16mm² specification refers to the cable conductor size, while the lug's mounting-hole diameter is a separate specification.
