Voltpro Energy 16S 51.2V 100Ah LiFePO4 Battery Box JK Inverter BMS Support & LED SOC Indicator Bar

Product Description

The Voltpro Energy 16S 100Ah LiFePO4 Battery Box is a premium, heavy-duty metal enclosure designed for building custom 24V 200Ah LiFePO4 battery systems.

This stylish battery casing supports both Smart BMS and compatible JK Inverter BMS installation and provides provision for the required communication components. Instead of a conventional LCD or touchscreen, this model features an integrated LED SOC Indicator Bar, allowing users to quickly identify the battery's approximate State of Charge (SOC) through the illuminated LED indicators.

The combination of a black and white premium finish with the integrated LED SOC bar gives the completed battery a modern, clean and attractive appearance, making it ideal for customers who want both functionality and aesthetics.

Product Overview

The Voltpro Energy 16S 100Ah Battery Box is designed for battery builders, solar installers, technicians and energy-storage professionals who want to assemble a professional-looking 24V 200Ah LiFePO4 battery.

The enclosure provides suitable space for a compatible Smart BMS or JK Inverter BMS, along with required internal battery components.

The key feature of this model is its LED SOC Indicator Bar.

Instead of installing a traditional screen, the LED bar provides a simple visual indication of the battery's approximate charge level. This keeps the front of the battery clean and uncluttered while adding a modern visual element.

Key Features

Designed for 24V 200Ah LiFePO4 Battery

16S 100Ah Battery Box Design

Heavy-Duty Metal Construction

Premium Black & White Color Combination

Supports compatible Smart BMS

Supports compatible JK Inverter BMS

Communication component/port provision

Integrated LED SOC Indicator Bar

Quick visual indication of battery SOC

No LCD Screen Required

No Touchscreen Required

Modern and attractive battery appearance

Professional battery enclosure

Suitable for solar systems

Suitable for inverter applications

Suitable for UPS systems

Suitable for home backup

Suitable for commercial energy storage

Suitable for professional and DIY battery assembly

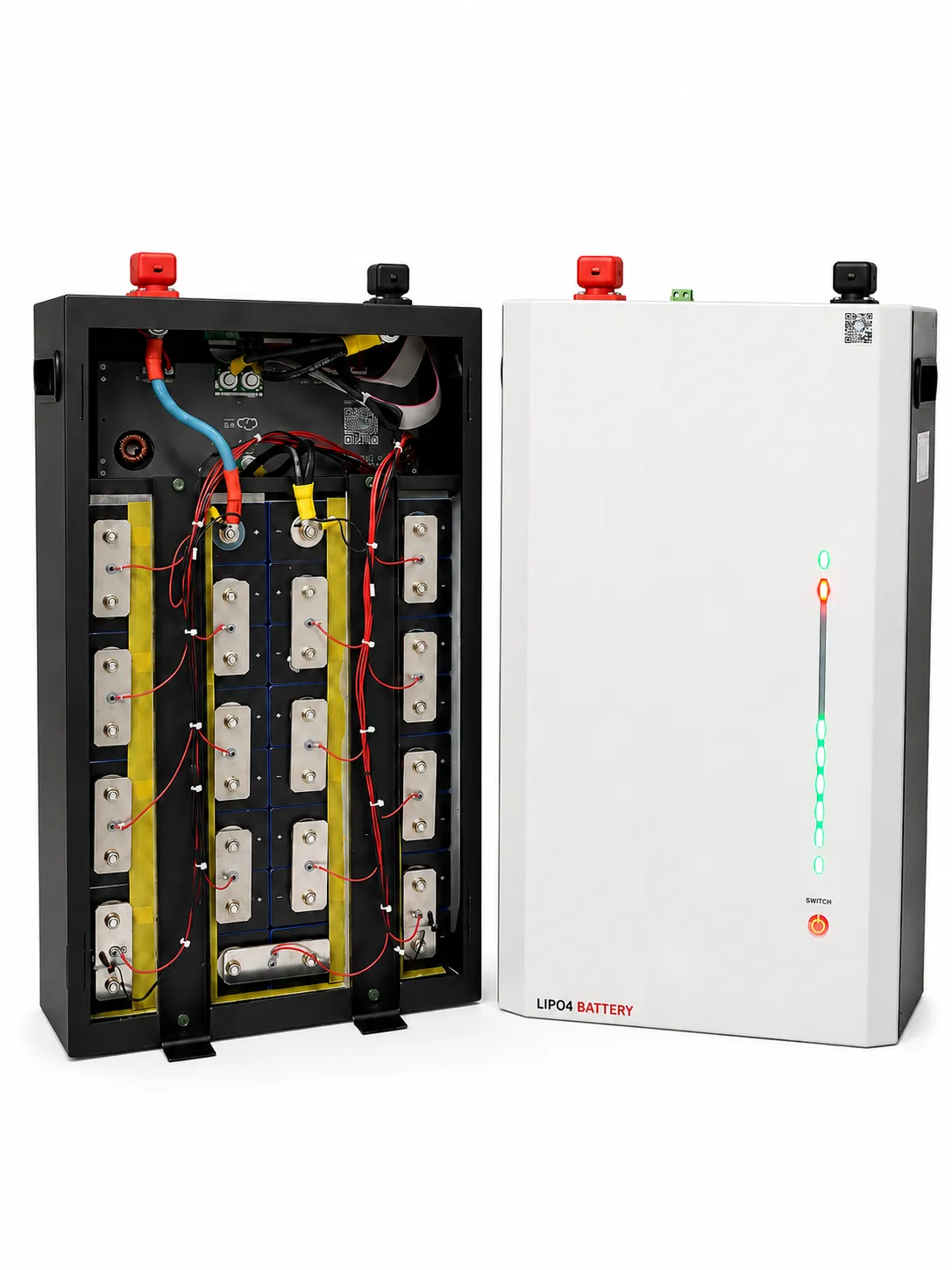

LED SOC Indicator Bar

The main feature of this battery box is its integrated LED SOC Indicator Bar.

The LED bar provides a quick visual indication of the battery's approximate State of Charge (SOC).

Instead of requiring a user to turn on a display or check the battery through an application, the LED indicator provides an easy visual reference directly from the front of the battery.

Benefits of the LED SOC Bar

Quick visual SOC indication

Easy to understand

Clean front-panel appearance

No large LCD required

No touchscreen required

Low-profile monitoring solution

Modern battery design

Enhances the overall appearance of the battery

Convenient for everyday battery monitoring

Important: The exact LED levels, colors and SOC ranges depend on the LED indicator circuit/controller used with the completed battery.

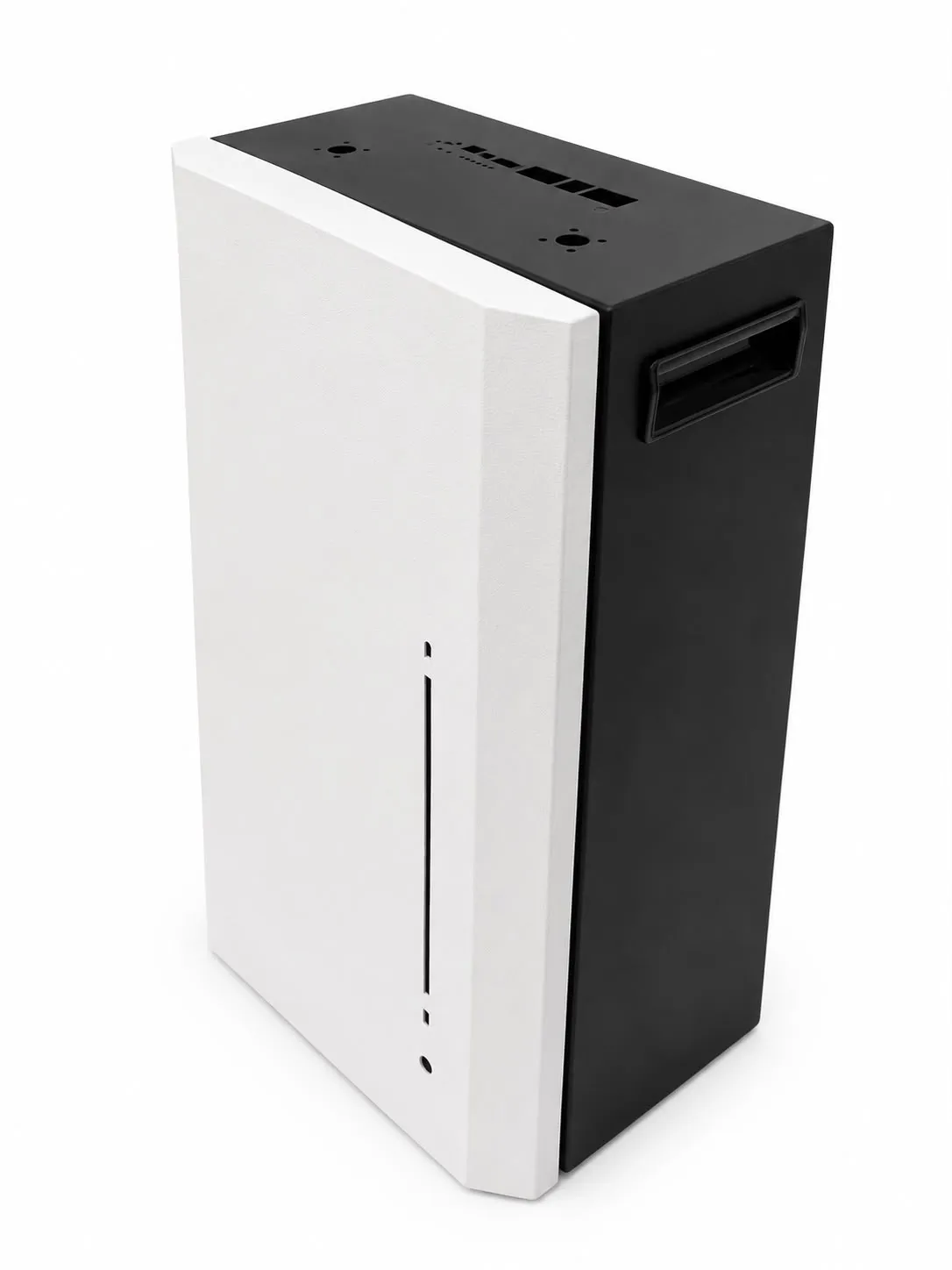

Premium Black & White Design

The enclosure features a black and white color combination designed to give the completed battery a premium and modern appearance.

The contrast between the two colors makes the battery look more refined than a conventional plain metal battery box.

The integrated LED SOC bar further enhances the appearance by providing a clean illuminated battery-status indicator.

Premium Design Benefits

Modern appearance

Professional finish

Attractive black & white combination

Clean front panel

LED status indication

Suitable for residential installations

Suitable for commercial installations

Premium-looking custom battery

24V 200Ah Battery Application

This enclosure is designed for building a 24V 200Ah LiFePO4 battery using a suitable 16S/100Ah cell arrangement according to the specific battery design.

A typical 24V LiFePO4 battery provides approximately:

25.6V × 200Ah = 5.12kWh nominal energy

This makes it suitable for applications such as:

Solar Energy Storage

Home Backup

Hybrid Inverter Systems

UPS Systems

Backup Power

Off-Grid Energy Storage

Smart BMS Support

The enclosure provides space for installing a suitable Smart BMS.

Depending on the selected BMS, the completed battery can have functions such as:

Cell Voltage Monitoring

Battery Voltage Monitoring

Temperature Monitoring

Cell Balancing

Overcharge Protection

Over-Discharge Protection

Over-Current Protection

Short-Circuit Protection

The actual functions depend on the Smart BMS model installed.

JK Inverter BMS Support

This model also supports installation of a compatible JK Inverter BMS.

This makes the enclosure suitable for applications where intelligent communication between the battery and a compatible inverter is required.

Depending on the selected JK BMS and inverter, communication may provide:

Battery Voltage

Battery Current

SOC

Charging Status

Discharging Status

Cell Voltage

Temperature

Protection Status

Alarm Information

Important: Actual inverter communication depends on the selected BMS, inverter model, communication protocol, cable/interface and correct configuration.

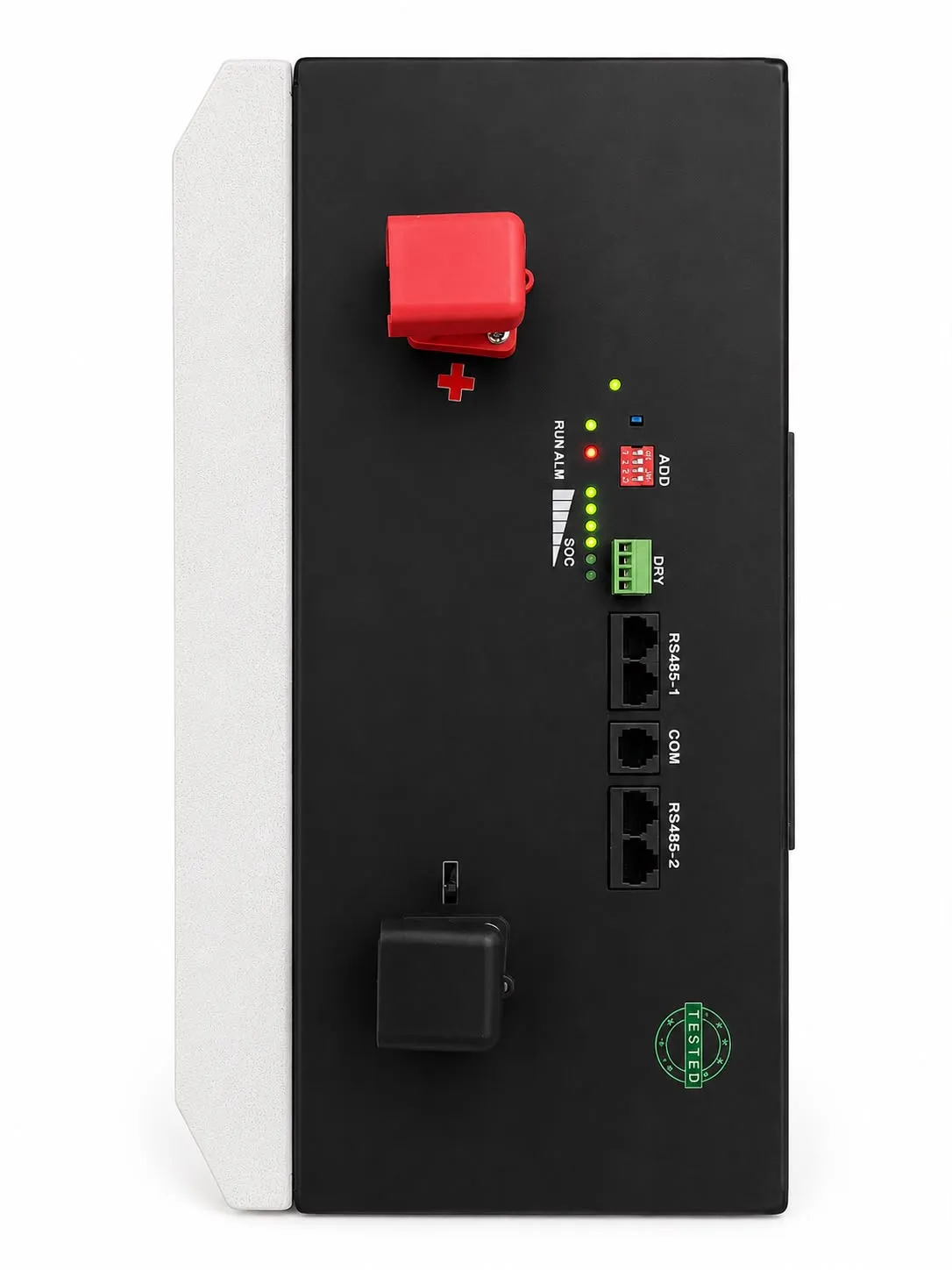

Communication Support

The enclosure provides suitable provision for communication components required by compatible BMS configurations.

This allows battery builders to configure the completed battery for compatible inverter communication applications.

The exact communication interface depends on the selected BMS and system requirements.

No LCD or Touchscreen Required

Unlike the previous display-equipped battery box, this model is specifically designed with an LED SOC Indicator Bar instead of an LCD or touchscreen.

This means:

No JK 3.2-inch LCD installation

No JK touchscreen installation

Cleaner front design

Simple SOC indication

More minimal appearance

Attractive illuminated LED bar

This makes the enclosure particularly suitable for customers who prefer a simple, modern and premium-looking battery without a large display.

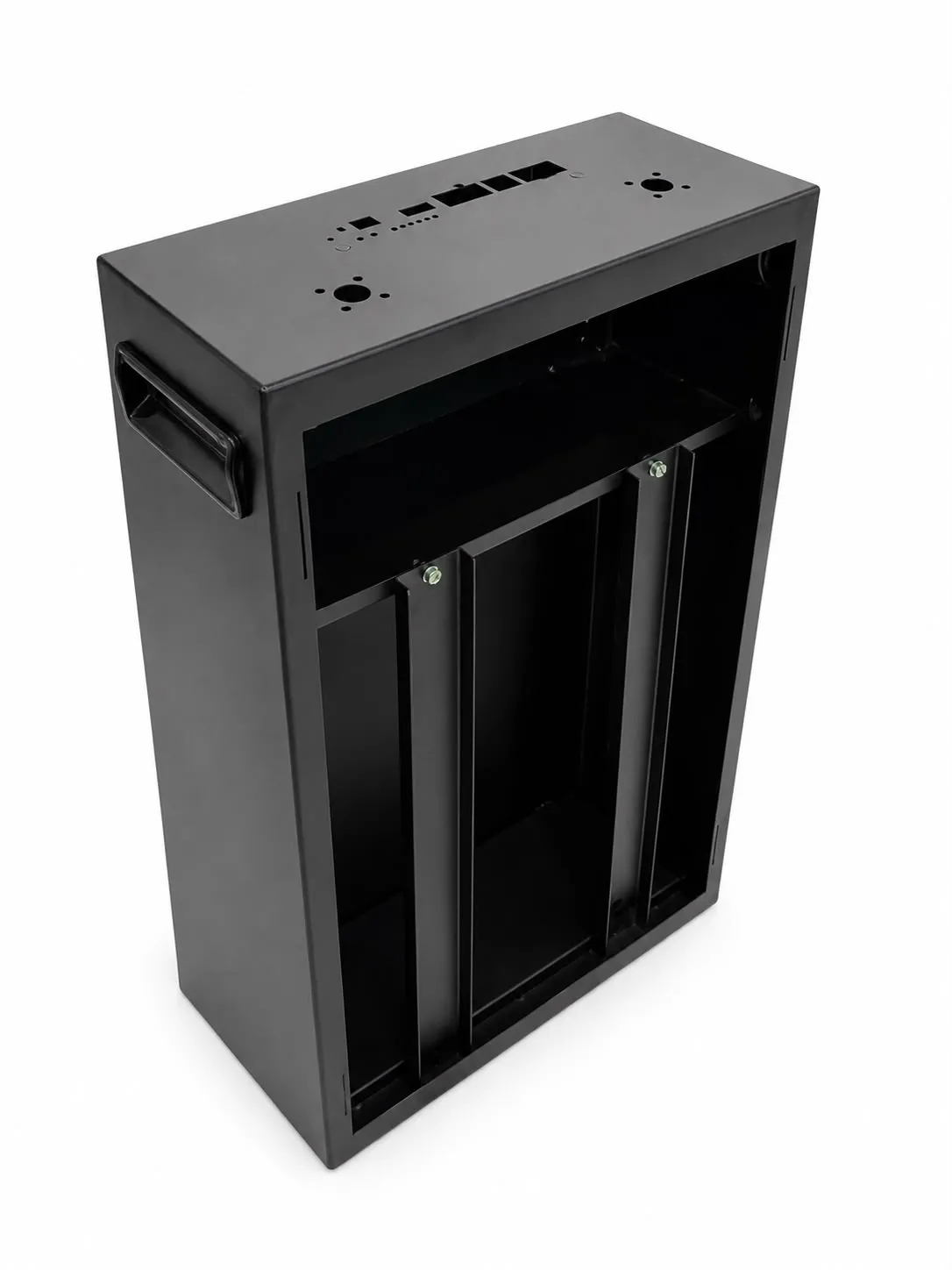

Heavy-Duty Construction

The enclosure is designed as a heavy-weight battery box suitable for professional battery assembly.

Its strong construction provides:

Robust mechanical structure

Stable battery assembly

Better protection for internal components

Professional appearance

Suitable structure for fixed installations

Improved durability during handling and installation

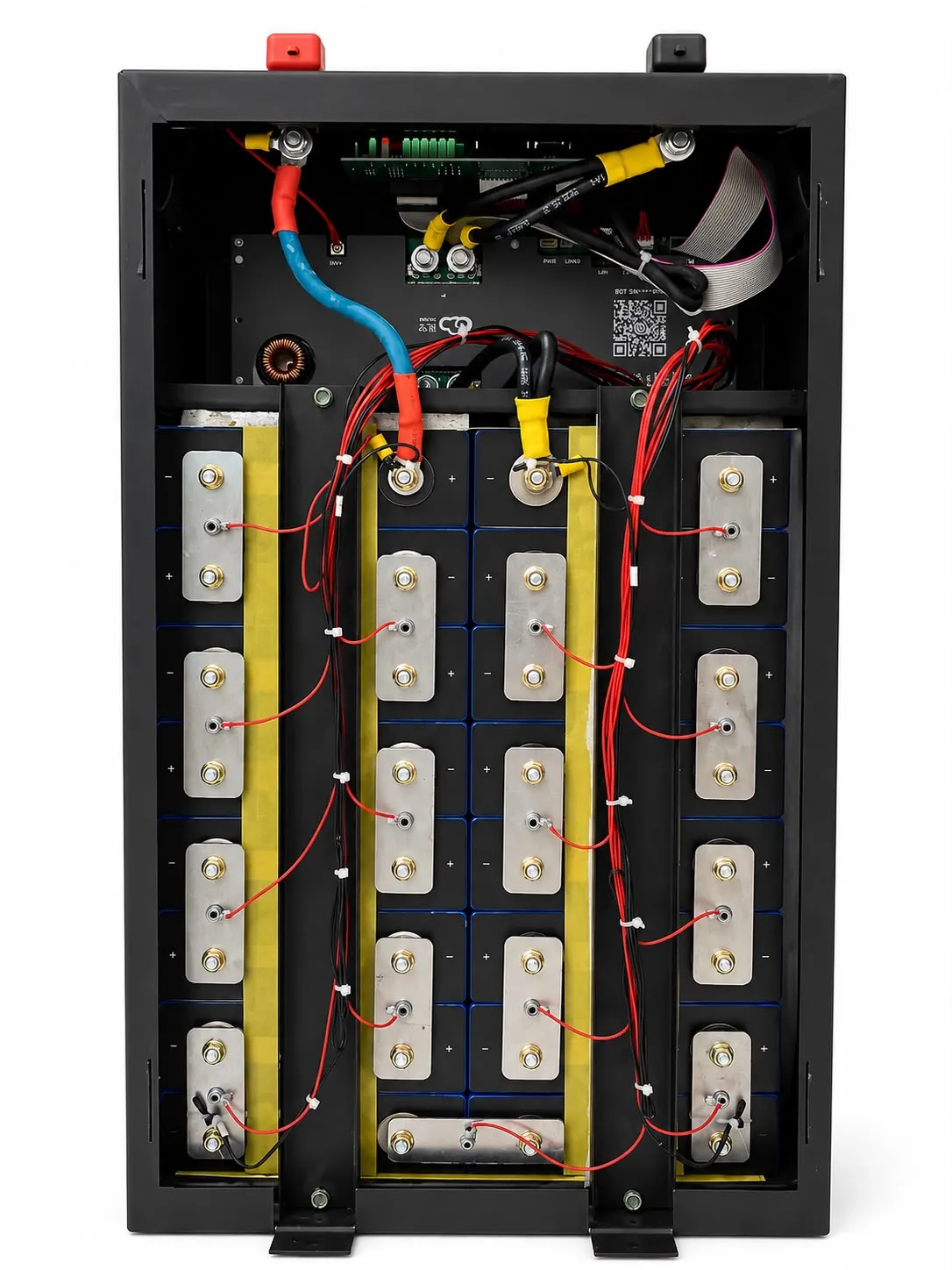

Professional Battery Assembly

The casing is designed to provide organized space for the major battery components, including:

LiFePO4 Battery Cells

Smart BMS

JK Inverter BMS

Communication Components

Battery Wiring

Internal Connections

LED SOC Indicator System

This helps battery builders create a clean, professional and attractive finished battery.

Suitable Applications

☀️ Solar Energy Storage

Suitable for building 24V 200Ah LiFePO4 batteries for solar energy-storage systems.

🏠 Home Backup

The approximately 5.12kWh nominal capacity of a completed 24V 200Ah battery can provide substantial backup for essential household loads.

⚡ Hybrid Inverter Systems

The enclosure can accommodate a compatible JK Inverter BMS for suitable inverter communication applications.

🔋 UPS Systems

Suitable for building compatible 24V LiFePO4 UPS batteries.

🏢 Commercial Backup

The heavy-duty construction makes it suitable for professional battery assembly and commercial applications.

🌐 Off-Grid Systems

Suitable for custom off-grid energy-storage applications.

Technical Specifications

Specification Details

Product Type Empty Heavy-Duty Metal Battery Box

Battery Application 24V 200Ah LiFePO4

Configuration 16S 100Ah Design

Battery Chemistry LiFePO4

Smart BMS Support Yes

JK Inverter BMS Support Yes

Communication Support Yes, depending on BMS

LED SOC Indicator Yes

LCD Display Not Supported

JK 3.2-Inch LCD Not Supported

JK Touchscreen Not Supported

Design Black & White

Construction Heavy-Duty Metal

Installation Fixed / Custom Installation

Application Solar, Inverter, UPS, Backup & Off-Grid

Battery Cells Included No

BMS Included No

LED Controller Included As per selected package

Why Choose This Battery Box?

The Voltpro Energy 16S 100Ah LED SOC Battery Box is designed for customers who want a combination of strength, functionality and premium appearance.

Instead of a conventional LCD or touchscreen, the integrated LED SOC Indicator Bar provides a simple and attractive way to identify the battery's approximate charge level.

The black and white design, heavy-duty construction and compatibility with both Smart BMS and JK Inverter BMS make this enclosure an excellent platform for building a professional 24V 200Ah LiFePO4 battery.

It is especially suitable for customers who prefer a clean front panel with LED status indication rather than a large display screen.

Package Includes

1 × Voltpro Energy 16S 100Ah Heavy-Duty Battery Box

LED SOC Indicator Bar provision/system according to selected package

Not Included

Battery Cells

Smart BMS

JK Inverter BMS

Communication Components

LCD Display

Touchscreen

Battery Terminals

Battery Cables

Other Electrical Components

Important Compatibility Note

This is an empty battery enclosure intended for custom battery assembly.

The LED SOC indicator provides an approximate battery charge indication and should not be treated as a precision measurement instrument unless specifically calibrated with the selected BMS/system.

The actual battery voltage, capacity, current rating and inverter communication functionality depend on the cells, BMS, wiring, terminals and other components installed inside the enclosure.

LCD and touchscreen displays are not supported on this particular model; the front-panel monitoring is designed around the LED SOC Indicator Bar."
