Ganfeng 3.2V 100Ah A-Grade LiFePO4 Cell | 6000 Cycles

Product Description

The Ganfeng 3.2V 100Ah A-Grade LiFePO4 Battery Cell is a high-capacity prismatic lithium iron phosphate cell designed for professional battery-pack assembly, solar energy storage, inverter batteries, EV applications, UPS systems, home backup and commercial energy-storage applications.

With a 3.2V nominal voltage and 100Ah capacity, the cell provides approximately 320Wh of nominal energy. It features a low 0.28mΩ internal resistance and a specified 6000-cycle life, making it suitable for long-term repeated charge and discharge applications.

The A-Grade cell quality, large-format prismatic design and 100Ah capacity make it a practical choice for building customized 12V, 24V, 48V/51.2V and higher-capacity LiFePO4 battery systems.

Product Overview

The Ganfeng 100Ah LiFePO4 Cell is an A-Grade 3.2V prismatic battery cell designed for users who require high-capacity cells for custom lithium battery construction.

Its 100Ah capacity allows battery builders to create different energy-storage configurations by connecting cells in series and parallel.

The cell has a specified 0.28mΩ internal resistance and 6000-cycle life, making it suitable for applications where reliable performance and repeated cycling are important.

It can be used for solar storage, inverter batteries, EV battery packs, UPS systems, home backup and commercial energy-storage projects.

Key Features

Ganfeng LiFePO4 Battery Cell

A-Grade Cell

3.2V Nominal Voltage

100Ah Nominal Capacity

Approx. 320Wh Nominal Energy

6000 Cycle Life

0.28mΩ Internal Resistance

Large-Format Prismatic Cell

Approx. 2.2kg Weight

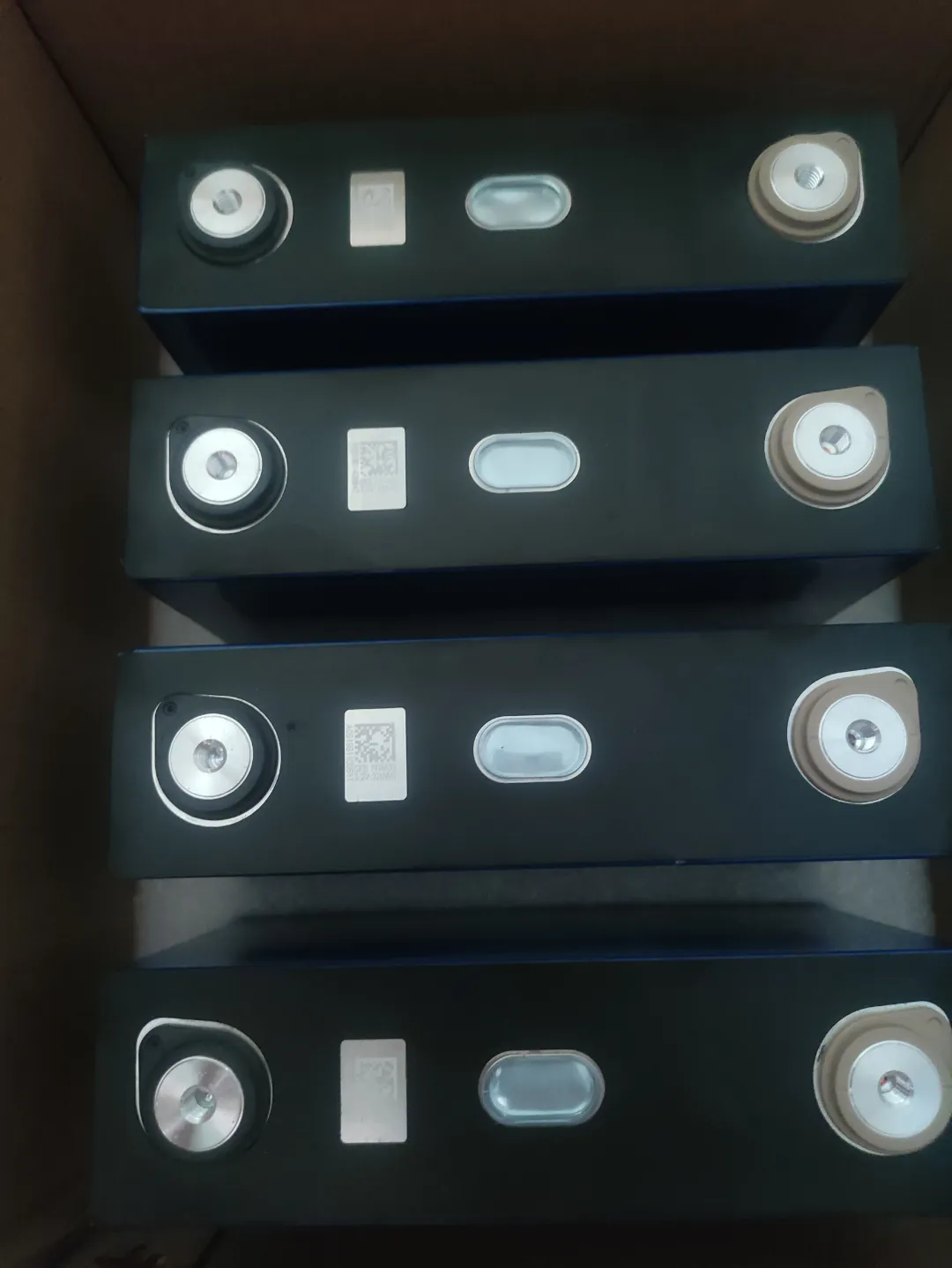

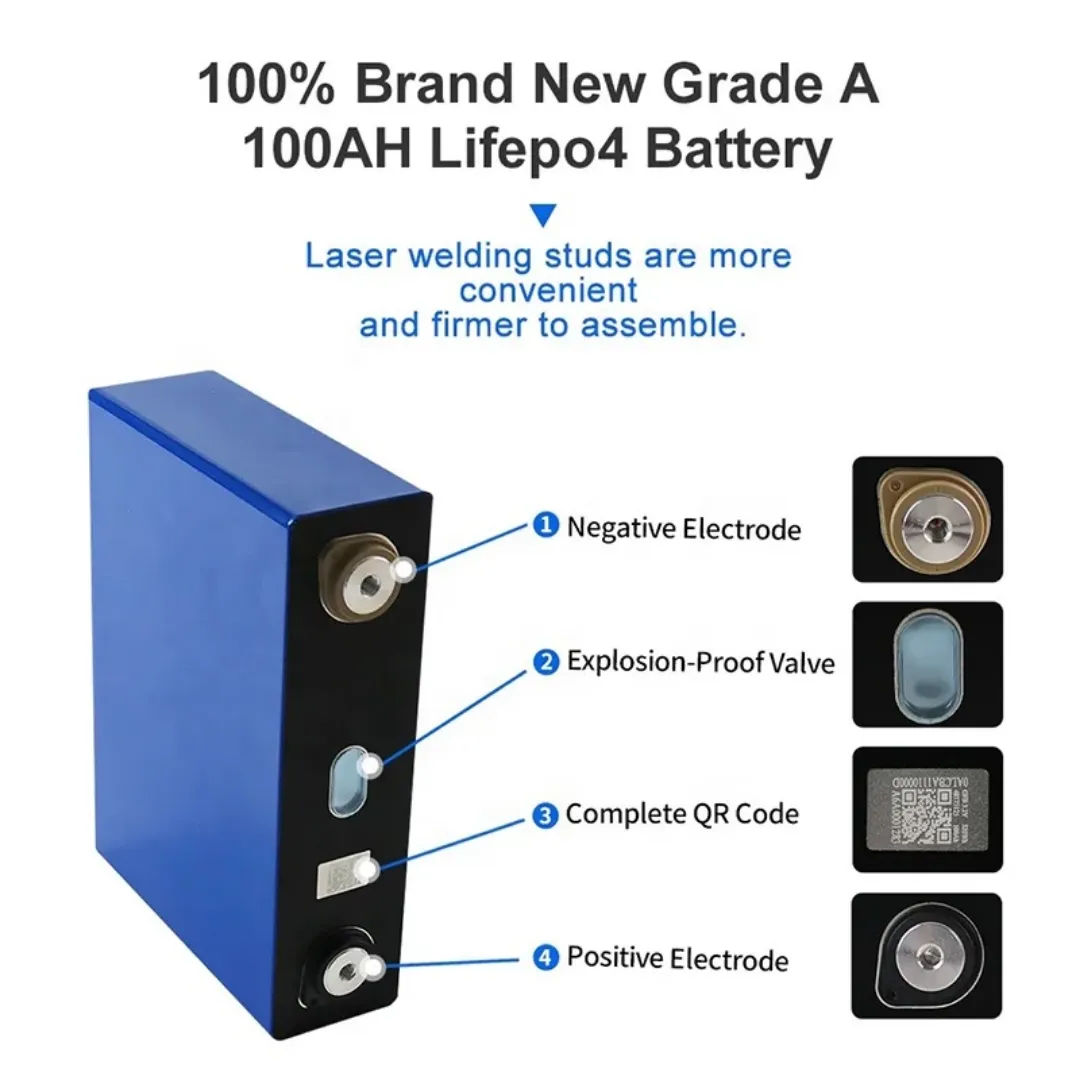

Positive & Negative Terminals

Suitable for Solar Battery Packs

Suitable for Inverter Batteries

Suitable for EV Battery Packs

Suitable for UPS Systems

Suitable for Home Backup

Suitable for Commercial Energy Storage

Suitable for Off-Grid Systems

Suitable for Custom LiFePO4 Battery Packs

Technical Specifications

Specification Details

Brand Ganfeng

Cell Grade A Grade

Chemistry LiFePO4

Cell Type Prismatic

Nominal Voltage 3.2V

Nominal Capacity 100Ah

Nominal Energy Approx. 320Wh

Internal Resistance 0.28mΩ

Cycle Life 6000 Cycles*

Approx. Weight 2.2kg

Dimensions 48 × 174 × 128mm

Application Solar, EV, UPS, Inverter, ESS & Custom Battery Packs

*Actual cycle life depends on charging/discharging conditions, depth of discharge, temperature, current, BMS settings and operating conditions.

Ganfeng A-Grade 100Ah LiFePO4 Cell

The Ganfeng 100Ah cell is specified as an A-Grade LiFePO4 cell, making it suitable for professional battery-pack construction.

A-Grade cells are preferred for applications where cell quality and consistency are important.

When assembling multiple cells into a battery pack, it is recommended to match cells according to:

Capacity

Voltage

Internal resistance

State of charge

Overall cell condition

Properly matched cells can help improve the consistency and performance of the completed battery pack.

0.28mΩ Internal Resistance

The specified internal resistance of this Ganfeng cell is:

0.28mΩ

Low internal resistance can help reduce internal voltage drop and heat generation when current flows through the cell.

Actual resistance measurements can vary depending on:

Cell temperature

State of charge

Measurement method

Testing equipment

Cell condition

For multi-cell battery construction, using cells with closely matched internal resistance is recommended.

6000 Cycle Life

The Ganfeng 100Ah LiFePO4 cell is specified with a:

6000 Cycle Life

This makes it suitable for applications involving repeated charging and discharging, including:

Solar energy storage

Home backup

Inverter batteries

UPS systems

Commercial energy storage

Off-grid systems

EV applications

Actual cycle life depends on operating conditions such as:

Depth of discharge

Charging voltage

Charging current

Discharge current

Operating temperature

BMS settings

Cell balancing

Storage conditions

100Ah Capacity & Energy

Each cell provides:

3.2V × 100Ah = 320Wh

Therefore, one Ganfeng 100Ah cell provides approximately:

320Wh / 0.32kWh Nominal Energy

The total energy of a battery pack depends on the number of cells and series/parallel configuration.

Battery Configuration Examples

4S 100Ah – 12.8V 100Ah

Using 4 cells in series:

4 × 3.2V = 12.8V

Nominal energy:

12.8V × 100Ah = 1.28kWh

Suitable for a 12V-class LiFePO4 battery.

8S 100Ah – 25.6V 100Ah

Using 8 cells in series:

8 × 3.2V = 25.6V

Nominal energy:

25.6V × 100Ah = 2.56kWh

Suitable for a 24V-class LiFePO4 battery.

16S 100Ah – 51.2V 100Ah

Using 16 cells in series:

16 × 3.2V = 51.2V

Nominal energy:

51.2V × 100Ah = 5.12kWh

Suitable for 48V/51.2V-class LiFePO4 battery systems.

Parallel Configuration

Parallel connections can increase the total battery capacity while maintaining the same nominal voltage.

Configuration Approx. Capacity

1P 100Ah

2P 200Ah

3P 300Ah

4P 400Ah

For example, a 16S2P configuration provides approximately:

51.2V 200Ah

Nominal energy:

10.24kWh

The final configuration should be selected according to the required battery voltage, capacity, BMS rating, inverter and application.

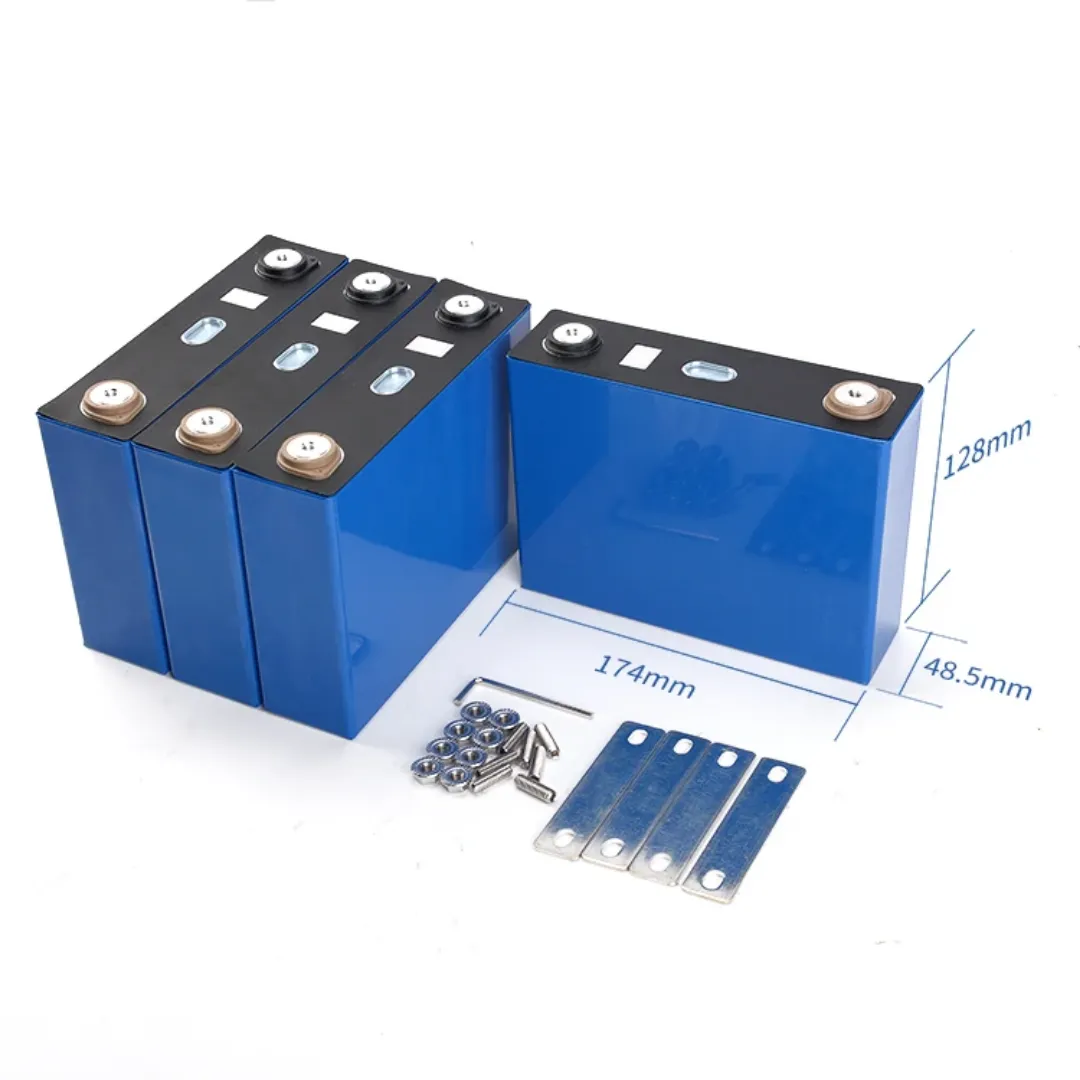

Cell Dimensions

According to the provided product information, the approximate cell dimensions are:

48 × 174 × 128mm

These dimensions are important when selecting or designing a battery enclosure.

Battery-box dimensions should provide adequate clearance for:

Cell terminals

Busbars

Insulation

BMS

Cables

Cell supports

Physical dimensions should be verified before final battery-box manufacturing.

Cell Weight

The specified weight is:

Approx. 2.2kg

The final weight of a complete battery will be higher depending on the number of cells and additional components such as BMS, busbars, cables, enclosure, terminals and protection devices.

Suitable Applications

☀️ Solar Energy Storage

Suitable for building high-capacity LiFePO4 batteries for solar energy-storage systems.

🏠 Home Backup

Can be used to build high-capacity backup batteries for essential household loads.

⚡ Inverter Battery Systems

Suitable for building compatible LiFePO4 batteries for inverter and hybrid inverter applications.

🚗 EV Battery Packs

Suitable for compatible electric vehicles, e-bikes, scooters and other electric-mobility applications.

🔋 UPS Systems

Suitable for compatible LiFePO4 UPS and backup-power systems.

🏢 Commercial Energy Storage

The 100Ah capacity and 6000-cycle specification make it suitable for commercial energy-storage applications.

🌐 Off-Grid Systems

Suitable for off-grid solar and renewable-energy storage systems.

Why Choose Ganfeng 100Ah A-Grade Cell?

The Ganfeng 3.2V 100Ah A-Grade LiFePO4 Cell combines:

100Ah Capacity

A-Grade Cell Quality

0.28mΩ Internal Resistance

6000 Cycle Life

Large-Format Prismatic Construction

Approx. 2.2kg Weight

Its 100Ah capacity makes it particularly useful for battery builders who want to create high-capacity battery systems using fewer individual cells.

It can be configured into 12.8V, 25.6V, 51.2V and larger LiFePO4 battery systems through suitable series and parallel connections.
