REPT 3.2V 104Ah A-Grade LiFePO4 Cell | 6000 Cycles

Product Description

The REPT 3.2V 104Ah A-Grade LiFePO4 Battery Cell is a high-capacity prismatic Lithium Iron Phosphate cell designed for professional battery-pack assembly, solar energy storage, inverter batteries, UPS systems, EV applications, portable power stations and commercial energy-storage systems.

With a 3.2V nominal voltage and 104Ah capacity, this cell provides approximately 332.8Wh of nominal energy. It features a low 0.28mΩ internal resistance and a specified 6000-cycle life, making it suitable for long-term repeated charge and discharge applications.

The cell supports 3C continuous discharge and up to 5C instant/pulse discharge, making it suitable for applications that require both high energy capacity and high power output.

Product Overview

The REPT 3.2V 104Ah LiFePO4 Cell is an A-Grade prismatic cell designed for reliable and high-capacity lithium battery construction.

Its large-format prismatic design allows multiple cells to be connected in series and parallel to create different voltage and capacity configurations.

With 104Ah capacity, 0.28mΩ internal resistance and 6000-cycle specification, the cell is suitable for solar batteries, inverter systems, UPS backup, EV battery packs, home energy storage and commercial energy-storage applications.

Key Features

REPT LiFePO4 Battery Cell

A-Grade Cell

3.2V Nominal Voltage

104Ah Nominal Capacity

Approx. 332.8Wh Nominal Energy

6000 Cycle Life

0.28mΩ Internal Resistance

3C Continuous Discharge

Up to 5C Instant/Pulse Discharge

3.65V Maximum Charge Voltage

2.3V Discharge Cut-Off Voltage

Large-Format Prismatic Design

Approx. 2kg Cell Weight

Suitable for Solar Energy Storage

Suitable for Inverter Batteries

Suitable for UPS Systems

Suitable for EV Battery Packs

Suitable for Home Energy Storage

Suitable for Portable Power Stations

Suitable for Commercial Energy Storage

Suitable for Off-Grid Applications

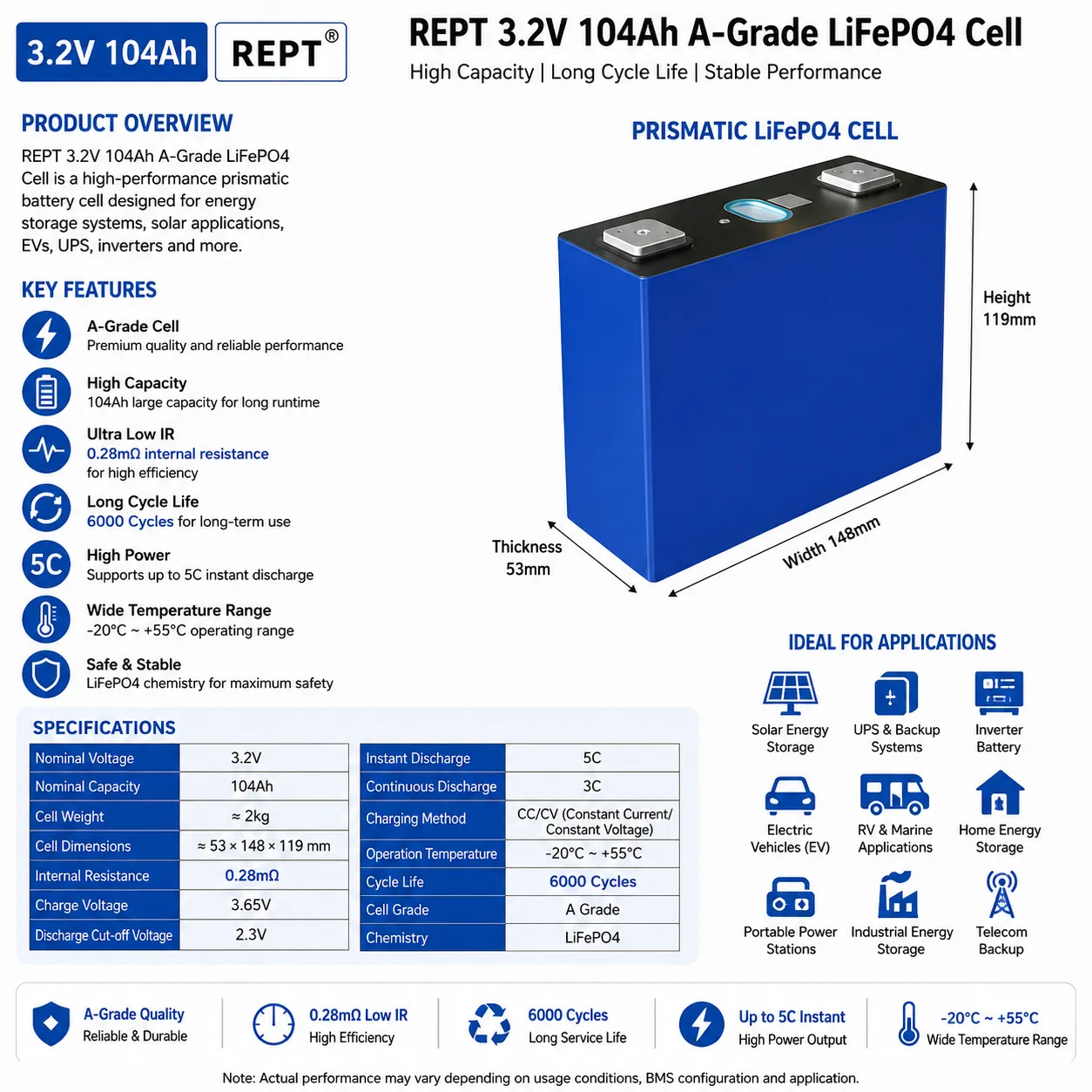

Technical Specifications

Specification Details

Brand REPT

Cell Grade A Grade

Chemistry LiFePO4

Cell Type Prismatic

Nominal Voltage 3.2V

Nominal Capacity 104Ah

Nominal Energy Approx. 332.8Wh

Internal Resistance 0.28mΩ

Cycle Life 6000 Cycles*

Maximum Charge Voltage 3.65V

Discharge Cut-Off Voltage 2.3V

Continuous Discharge 3C

Instant/Pulse Discharge Up to 5C

Charging Method CC/CV

Operating Temperature -20°C to +55°C

Cell Weight Approx. 2kg

Dimensions (T×W×H) Approx. 53 × 148 × 119mm

*Actual cycle life depends on charging/discharging conditions, depth of discharge, temperature, current, BMS settings and operating conditions.

REPT A-Grade 104Ah LiFePO4 Cell

The REPT 104Ah cell is specified as an A-Grade LiFePO4 cell, making it suitable for professional battery-pack assembly.

A-Grade cells are preferred for applications where consistent cell quality and electrical characteristics are important.

For multi-cell battery construction, it is recommended to match cells according to:

Voltage

Capacity

Internal resistance

State of charge

Overall cell condition

Proper matching can help improve cell consistency and the performance of the completed battery pack.

0.28mΩ Internal Resistance

The updated internal resistance specification for this cell is:

0.28mΩ

Low internal resistance can help minimize voltage drop and reduce internal heat generation during current flow.

Actual resistance measurements can vary depending on:

Cell temperature

State of charge

Testing equipment

Measurement method

Cell condition

For professional battery assembly, cells with closely matched resistance are recommended.

6000 Cycle Life

The REPT 104Ah cell is specified with:

6000 Cycle Life

This makes it suitable for applications requiring frequent charging and discharging, including:

Solar energy storage

Home backup

Inverter batteries

UPS systems

Commercial energy storage

EV applications

Portable power stations

Off-grid systems

Actual cycle life depends on operating conditions such as depth of discharge, charging voltage, current, temperature, BMS settings and cell balancing.

High-Power Discharge Capability

According to the provided specifications, the cell supports:

3C Continuous Discharge

For a 104Ah cell:

3C = 312A

The specification also indicates:

Up to 5C Instant/Pulse Discharge

For a 104Ah cell:

5C = 520A

The 5C figure should be treated as an instant/pulse rating, not a continuous operating current.

The actual allowable current of a complete battery will depend on the BMS, cables, busbars, terminals, fuse, temperature and overall battery design.

104Ah Capacity & Nominal Energy

One cell provides:

3.2V × 104Ah = 332.8Wh

Therefore, the cell has approximately:

332.8Wh / 0.333kWh Nominal Energy

The total energy of a battery pack depends on its series and parallel configuration.

Battery Configuration Examples

4S 104Ah – 12.8V 104Ah

Using 4 cells in series:

4 × 3.2V = 12.8V

Nominal energy:

12.8V × 104Ah = 1.331kWh

Suitable for a 12V-class LiFePO4 battery.

8S 104Ah – 25.6V 104Ah

Using 8 cells in series:

8 × 3.2V = 25.6V

Nominal energy:

25.6V × 104Ah = 2.662kWh

Suitable for a 24V-class LiFePO4 battery.

16S 104Ah – 51.2V 104Ah

Using 16 cells in series:

16 × 3.2V = 51.2V

Nominal energy:

51.2V × 104Ah = 5.325kWh

Suitable for 48V/51.2V-class LiFePO4 battery systems.

Parallel Configuration

Parallel connections can increase the total capacity while maintaining the same nominal voltage.

Configuration Approx. Capacity

1P 104Ah

2P 208Ah

3P 312Ah

4P 416Ah

For example, a 16S2P configuration provides approximately:

51.2V 208Ah

Nominal energy:

10.65kWh

The final configuration should be selected according to the required inverter, BMS, load and application.

Cell Dimensions

The provided specification lists approximate dimensions of:

53 × 148 × 119mm

Approximate:

Thickness: 53mm

Width: 148mm

Height: 119mm

These dimensions should be considered when designing a battery enclosure.

Adequate clearance should be provided for:

Cell terminals

Busbars

Insulation

BMS wiring

Cell supports

Battery cables

Physical dimensions should be verified before manufacturing a custom battery box.

Cell Weight

The specified cell weight is approximately:

2kg

The final battery weight will depend on the number of cells and additional components such as BMS, busbars, cables, enclosure, terminals and protection devices.

Charging Parameters

The provided specification indicates:

Maximum Charge Voltage: 3.65V

The cell uses the:

CC/CV Charging Method

For battery-pack charging, the charger and BMS should be correctly configured for LiFePO4 chemistry.

Operating Temperature

The specified operating temperature range is:
