Voltpro Energy 24V 200Ah LiFePO4 Battery 5.12kWh

Product Description

The Voltpro Energy 24V 200Ah LiFePO4 Battery is a premium lithium energy storage solution designed for solar systems, inverters, UPS backup, home energy storage and off-grid applications. Built with EVE A-Grade LiFePO4 cells featuring a measured 0.28mΩ internal resistance, this battery provides excellent cell consistency, stable performance and reliable energy delivery.

The battery features a powerful JK B28S20P Smart BMS with 200A continuous current, 350A peak discharge capability and 2A Active Cell Balancing. The smart BMS continuously monitors individual cell voltage, battery current and temperature while providing advanced protection and intelligent cell balancing.

With 25.6V nominal voltage, 200Ah capacity and approximately 5.12kWh energy storage, this battery is an excellent choice for high-capacity 24V solar and backup power systems.

Product Highlights

24V 200Ah LiFePO4 Battery

25.6V Nominal Voltage

200Ah Battery Capacity

5.12kWh Nominal Energy

EVE A-Grade LiFePO4 Cells

0.28mΩ Internal Resistance (IR)

JK B28S20P Smart BMS

200A Continuous BMS Current

350A Peak Discharge Current

2A Active Cell Balancing

Smart Battery Monitoring

Advanced Cell-Level Protection

High-Quality Prismatic LiFePO4 Cells

Maintenance-Free Operation

Designed for Solar & Inverter Applications

Product Features

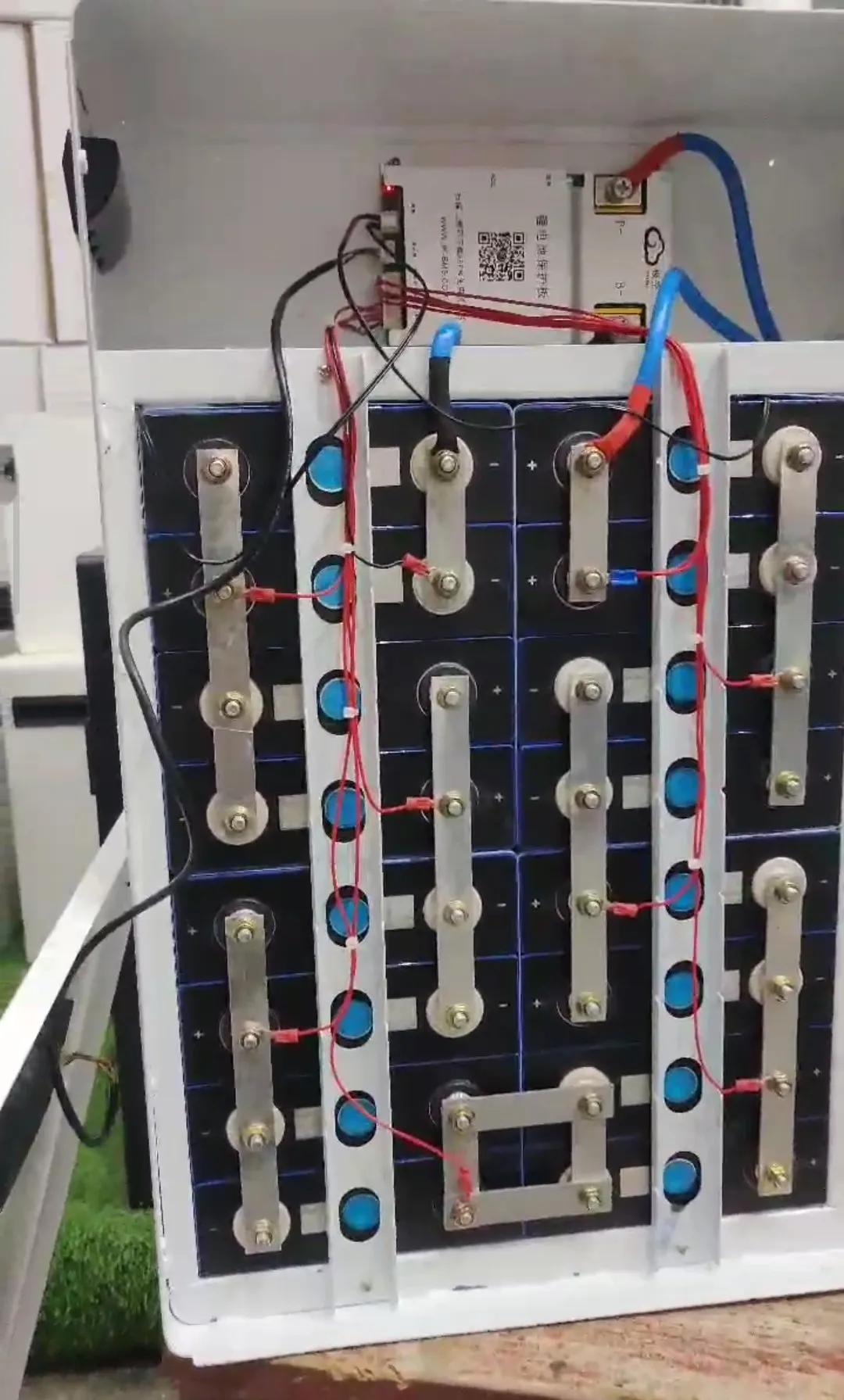

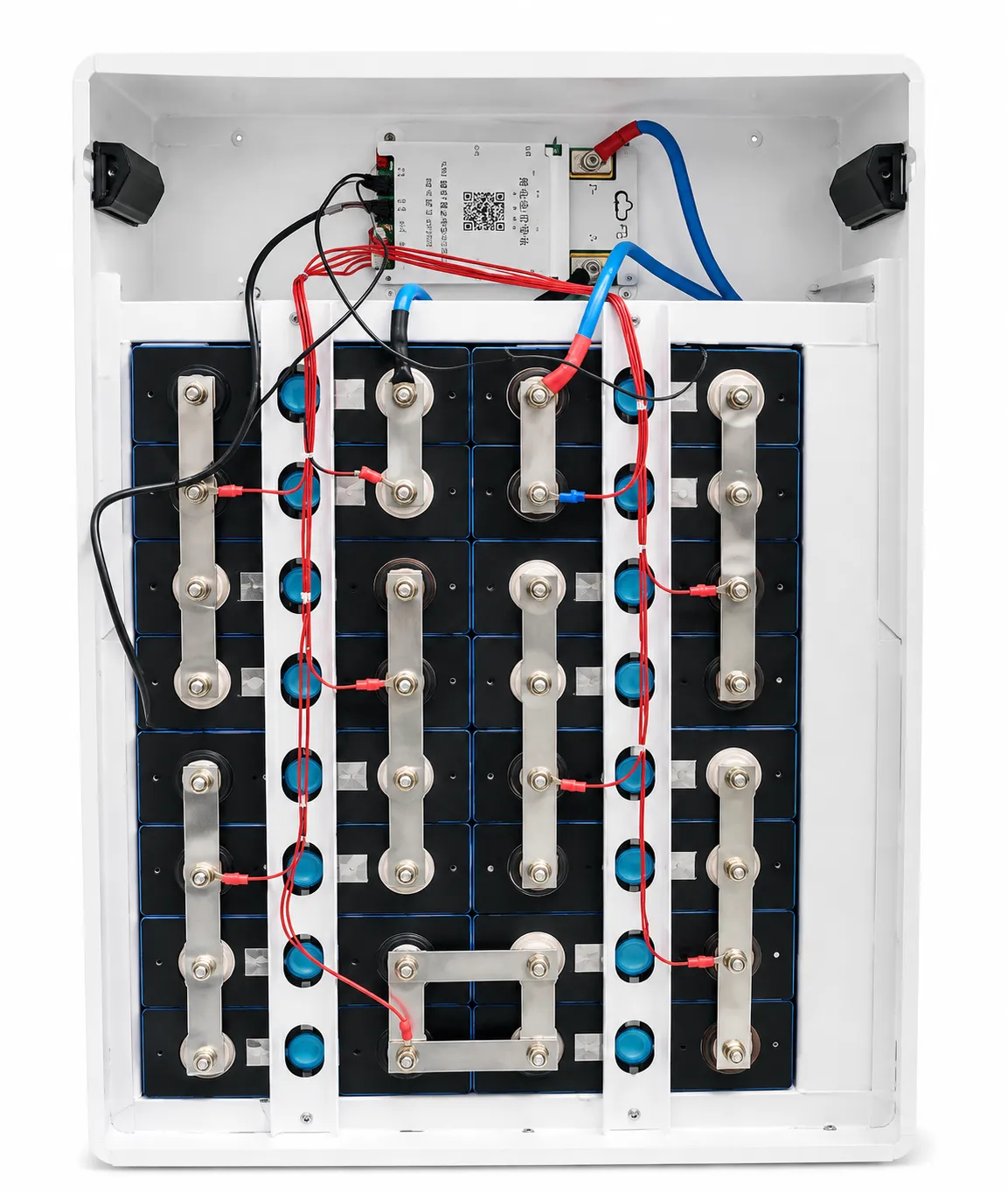

EVE A-Grade LiFePO4 Cells

The battery is built using EVE A-Grade LiFePO4 prismatic cells, selected for their quality, consistency and low internal resistance. The cells have a measured 0.28mΩ IR reading, helping reduce internal losses and maintain stable performance under load.

5.12kWh Energy Capacity

With 25.6V nominal voltage and 200Ah capacity, the battery provides approximately 5.12kWh of nominal energy storage. This makes it suitable for applications requiring extended backup and reliable energy storage.

JK B28S20P Smart BMS

The integrated JK B28S20P Smart BMS provides advanced monitoring and protection for the battery pack. It monitors individual cell voltages, battery current and temperature to help maintain safe and stable operation.

2A Active Cell Balancing

The powerful 2A Active Balancer continuously helps equalize the energy between individual cells. Effective cell balancing helps improve usable capacity, maintain cell consistency and support longer battery life.

200A Continuous Current

The BMS supports up to 200A continuous charge/discharge current, making the battery suitable for high-power 24V inverter and energy-storage applications.

350A Peak Discharge

The JK BMS provides up to 350A peak discharge capability for short-duration high-power requirements. Actual peak performance depends on battery cells, temperature, wiring, terminals and BMS protection settings.

Advanced Battery Protection

The Smart BMS provides multiple protection functions, including:

Overcharge Protection

Over-Discharge Protection

Overcurrent Protection

Short-Circuit Protection

Over-Temperature Protection

Cell Voltage Protection

Cell Imbalance Protection

Temperature Monitoring

Technical Specifications

Specification Details

Brand Voltpro Energy

Battery Type LiFePO4 / Lithium Iron Phosphate

Nominal Voltage 25.6V

Capacity 200Ah

Energy Capacity 5.12kWh

Battery Configuration 8S

Cell Brand EVE

Cell Grade A Grade

Cell IR 0.28mΩ

BMS Model JK B28S20P

BMS Type Smart BMS

Continuous Current 200A

Peak Discharge 350A

Active Balancing Current 2A

Cell Chemistry LiFePO4

Application Solar / Inverter / UPS / Energy Storage

Applications

Solar Energy Storage Systems

24V Solar Inverter Systems

Home Backup Power

UPS Backup Systems

Off-Grid Solar Systems

Commercial Energy Storage

RV & Camper Power Systems

Telecom Backup Power

Portable & Stationary Energy Storage

DIY & Professional Lithium Battery Projects

Important Note

Actual backup time and maximum output depend on the connected load, inverter efficiency, battery temperature, wiring, terminals and operating conditions. For optimum performance, use a compatible 24V LiFePO4 charger/inverter with appropriate charging and protection settings.

Backup Time & Home Appliance Compatibility

The Voltpro Energy 24V 200Ah LiFePO4 Battery provides 25.6V × 200Ah = 5.12kWh nominal energy, making it an excellent solution for home backup, solar energy storage, and inverter applications.

Approximate Backup Time

Connected Load Approx. Backup Time*

500W 8–9 Hours

1000W (1kW) 4–4.5 Hours

1500W (1.5kW) 2.7–3 Hours

2000W (2kW) 2–2.3 Hours

*Backup times are approximate and based on practical usable energy after considering inverter losses and recommended battery operating limits. Actual results may vary depending on inverter efficiency, battery temperature, wiring losses, battery condition, and actual appliance consumption.

What Can This Battery Run?

The battery can be used to power a wide range of household appliances through a suitable 24V LiFePO4-compatible inverter, including:

LED Lights – Multiple LED lights can easily be operated.

LED TV – Ideal for TVs and entertainment systems.

WiFi Router – Suitable for continuous internet connectivity during power outages.

CCTV System – Can power DVR/NVR and cameras for extended backup.

Computer & Monitor – Suitable for normal office and desktop computer use, depending on actual power consumption.

Fans – Multiple AC/DC fans can be operated depending on their wattage.

Refrigerator – Can operate a compatible refrigerator, provided the inverter has sufficient starting/surge power for the compressor.

Example Home Backup Load

A typical essential-load setup could include:

Appliance Approx. Load

4 × LED Lights 40W

LED TV 120W

WiFi Router 15W

CCTV System 50W

3 × Fans 150W

Computer + Monitor 200W

Refrigerator Average 150W

Total Approx. Load 725W

At an average load of around 725W, the battery can provide approximately 5.5–6+ hours of backup, depending on actual appliance consumption and inverter efficiency.

Ideal for Home Backup

5.12kWh of energy storage makes this battery suitable for keeping essential household appliances running during power outages, including lights, fans, TV, WiFi, CCTV, computers and refrigerators.

Important: Refrigerator compressors and some appliances require significantly higher starting power than their normal running wattage. Always use an inverter with adequate continuous and surge capacity.
