Voltpro Energy 24V 314Ah LiFePO4 Battery EVE A-Grade 8000+ Cycles

Product Description

The Voltpro Energy 24V 314Ah LiFePO4 Battery is a high-capacity energy storage solution designed for solar systems, hybrid inverters, home backup, commercial applications and off-grid power systems.

Built with EVE A-Grade LiFePO4 cells rated for 8000+ cycles, this battery delivers approximately 7.54kWh of nominal energy storage. It features the JK PB2A16S20P Inverter BMS, providing up to 200A charge/discharge current, 350A peak discharge and 2A active cell balancing.

The battery also includes a JK 4.3-inch Touchscreen LCD, allowing users to conveniently monitor important battery parameters directly from the battery.

Product Overview

The Voltpro Energy 24V 314Ah battery is designed for users who need high energy capacity, long cycle life and intelligent inverter communication in a 24V battery system.

The battery uses high-quality EVE A-Grade LiFePO4 cells in a 24V-class configuration and is managed by the advanced JK PB2A16S20P Inverter BMS.

Unlike a basic battery BMS, the JK Inverter BMS is designed for applications where communication between the battery BMS and compatible inverter is required. Depending on the inverter and communication protocol, the BMS can provide battery information and control parameters to help the inverter manage charging and discharging more intelligently.

Key Features

24V / 25.6V LiFePO4 Battery

314Ah High Capacity

Approx. 7.54kWh Nominal Energy

EVE A-Grade LiFePO4 Cells

8000+ Cycle Life

JK Inverter BMS

BMS Model: PB2A16S20P

200A Charge Current

200A Discharge Current

350A Peak Discharge

2A Active Cell Balancing

JK 4.3-Inch Touchscreen LCD

Intelligent Battery Monitoring

Inverter Communication Support*

Cell Voltage Monitoring

Temperature Monitoring

Overcharge & Over-Discharge Protection

Over-Current Protection

Short-Circuit Protection

Suitable for Solar & Hybrid Inverters

Suitable for Home & Commercial Backup

Suitable for Off-Grid Energy Storage

*Actual inverter communication depends on inverter compatibility, supported protocol and correctly configured communication interface/cable.

Technical Specifications

Specification Details

Product Type LiFePO4 Lithium Battery

Nominal Voltage 25.6V

Battery Capacity 314Ah

Nominal Energy Approx. 8.03kWh

Usable Energy Depends on BMS settings, DoD & system efficiency

Battery Chemistry LiFePO4

Cell Brand EVE

Cell Grade A Grade

Cycle Life 8000+ Cycles*

BMS Brand JK Smart

BMS Type Inverter BMS

BMS Model PB2A16S20P

Charge Current Up to 200A

Discharge Current Up to 200A

Peak Discharge Up to 350A

Active Balancing 2A

LCD Display JK 4.3" Touchscreen

Battery Configuration 8S LiFePO4

Application Solar, Inverter, UPS, Backup & Off-Grid

Energy calculation: 25.6V × 314Ah ≈ 8.03kWh.

*Actual cycle life depends on charging voltage, discharge depth, temperature, current and operating conditions.

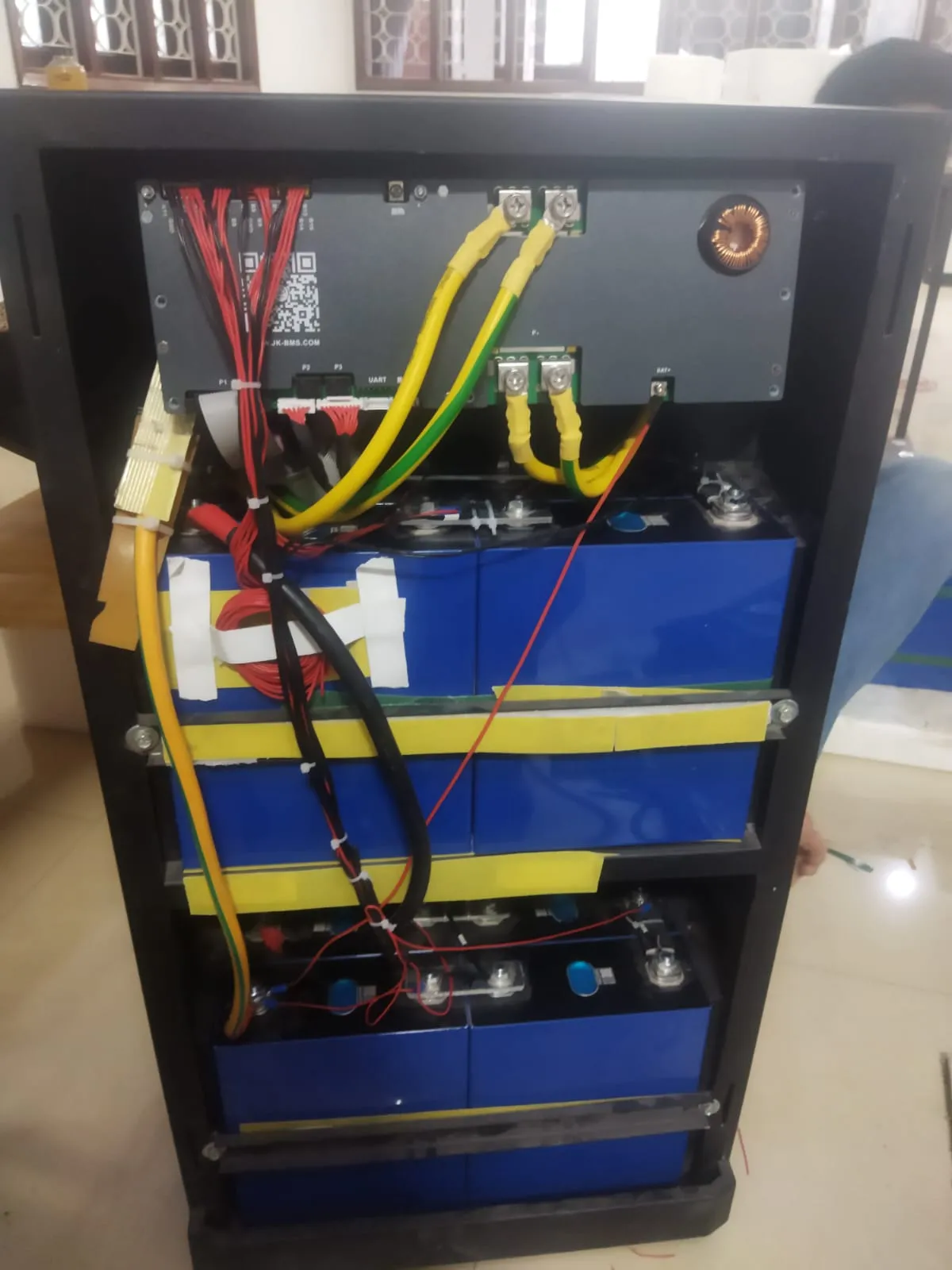

EVE A-Grade 314Ah LiFePO4 Cells

At the heart of this battery are EVE A-Grade LiFePO4 cells.

The cells are selected for long-term energy-storage applications and are specified for 8000+ cycles under suitable operating and test conditions.

Advantages of EVE LiFePO4 Cells

A-Grade Cell Quality

Long Cycle Life

Stable LiFePO4 Chemistry

High Energy Storage Capacity

Suitable for Deep-Cycle Applications

Excellent for Solar Energy Storage

Designed for Long-Term Repeated Cycling

With 314Ah capacity, the battery is capable of storing a substantial amount of energy while maintaining the advantages of LiFePO4 chemistry.

JK PB2A16S20P Inverter BMS

The battery uses the JK PB2A16S20P Inverter BMS, specifically designed for high-performance battery systems and inverter-integrated applications.

BMS Specifications

Model: JK PB2A16S20P

Type: Inverter BMS

Charge Current: Up to 200A

Discharge Current: Up to 200A

Peak Discharge: Up to 350A

Active Balancing: 2A

Series Support: Up to 16S

Cell Monitoring: Yes

Temperature Monitoring: Yes

Inverter Communication: Supported with compatible systems

JK Inverter BMS Communication

One of the major advantages of the PB2A16S20P is its inverter-oriented communication capability.

The BMS can communicate important battery information to a compatible inverter, allowing the inverter and battery to work together based on battery status and configured parameters.

Depending on the inverter and communication protocol, information may include:

Battery Voltage

Battery Current

State of Charge (SOC)

Charging Status

Discharging Status

Battery Temperature

Cell Voltage Information

Protection Status

Battery Alarms

Important

Communication is not automatically guaranteed with every inverter brand/model. The inverter must support the appropriate JK communication protocol and connection/interface. Correct communication cable, protocol selection and BMS/inverter settings are also required.

2A Active Cell Balancing

The JK BMS provides 2A active balancing.

Active balancing helps maintain better voltage consistency between individual cells by transferring energy between cells rather than simply wasting excess energy as heat.

This is particularly beneficial in a high-capacity 314Ah battery, where maintaining cell consistency can contribute to better overall battery performance.

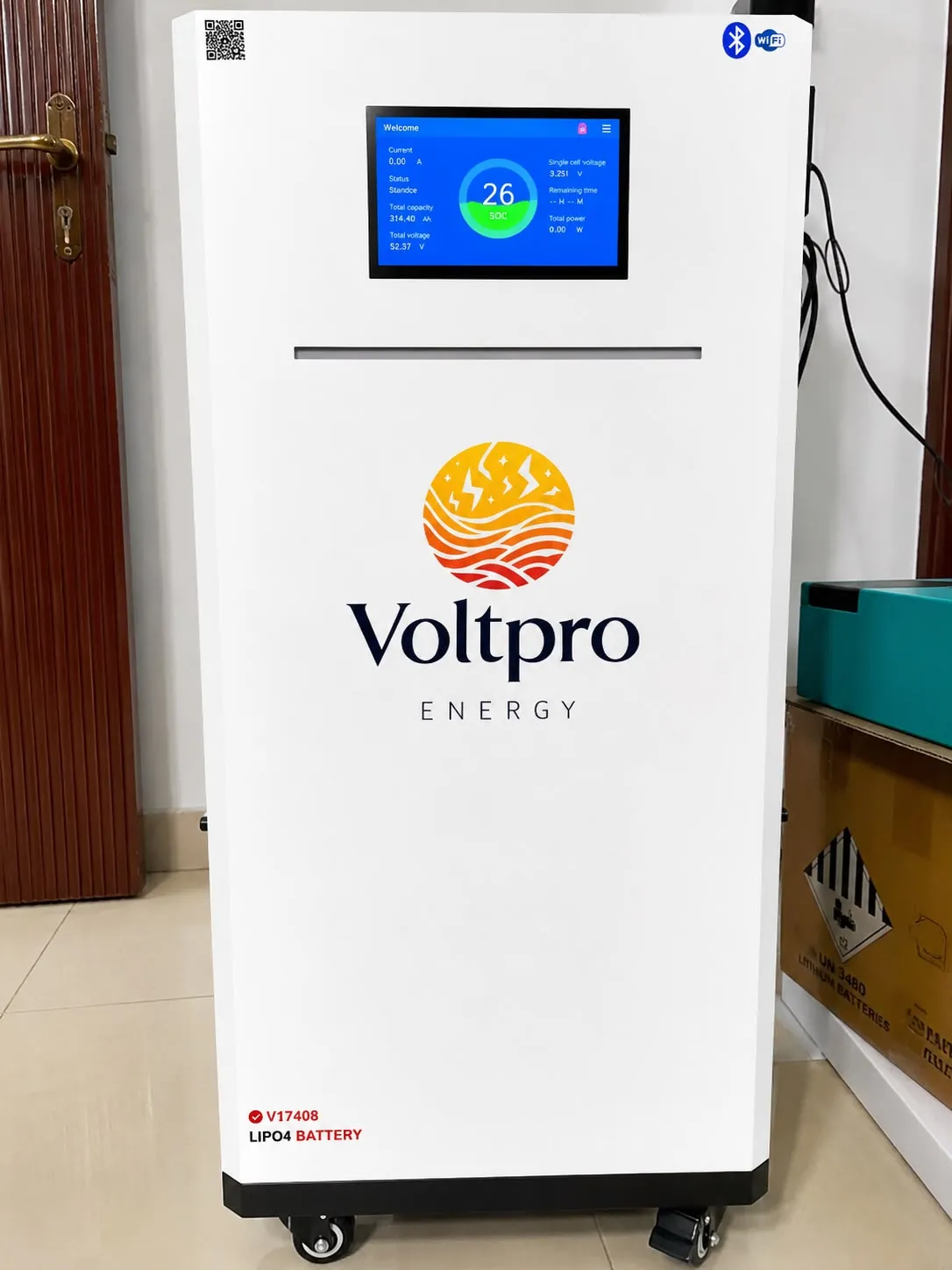

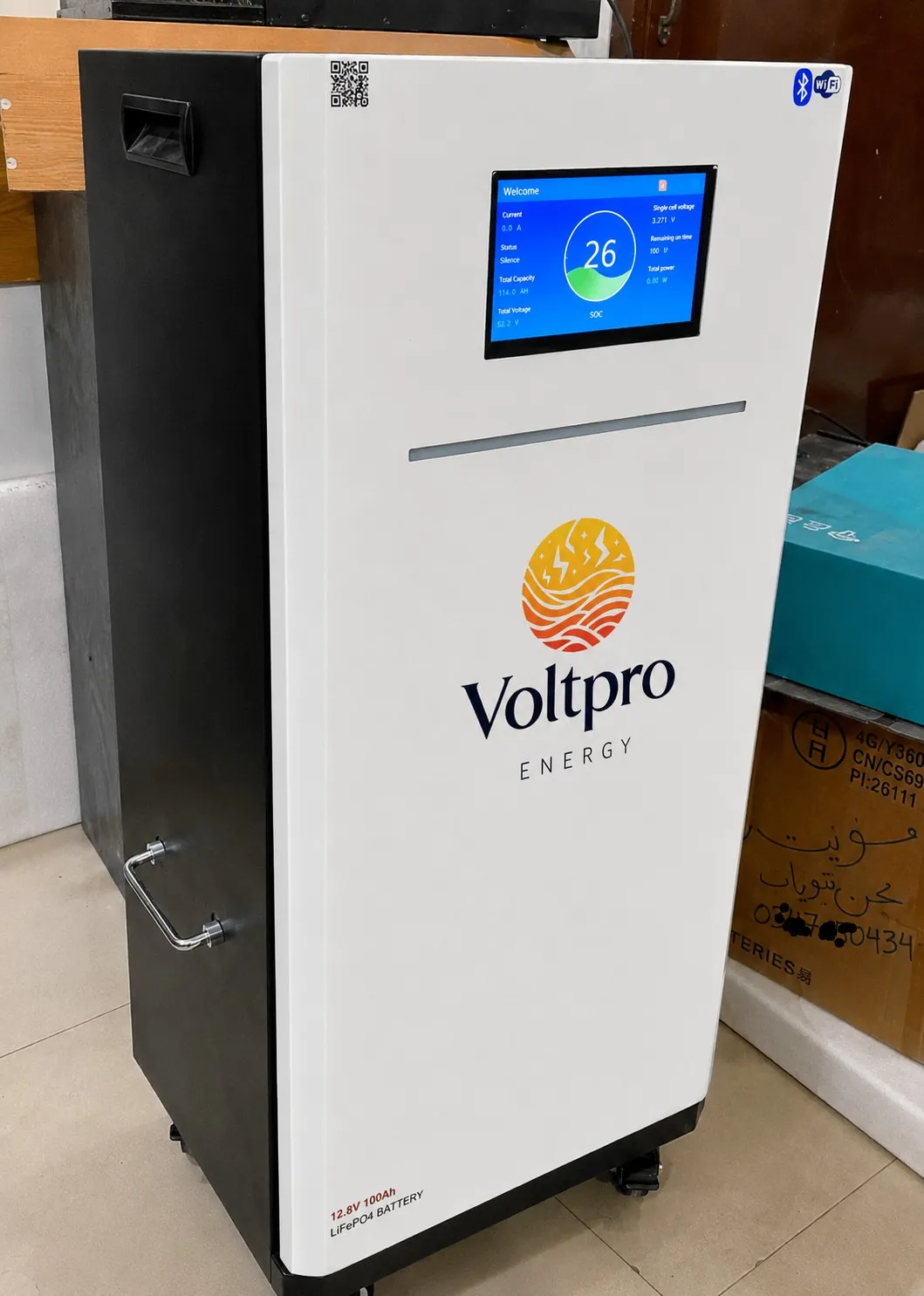

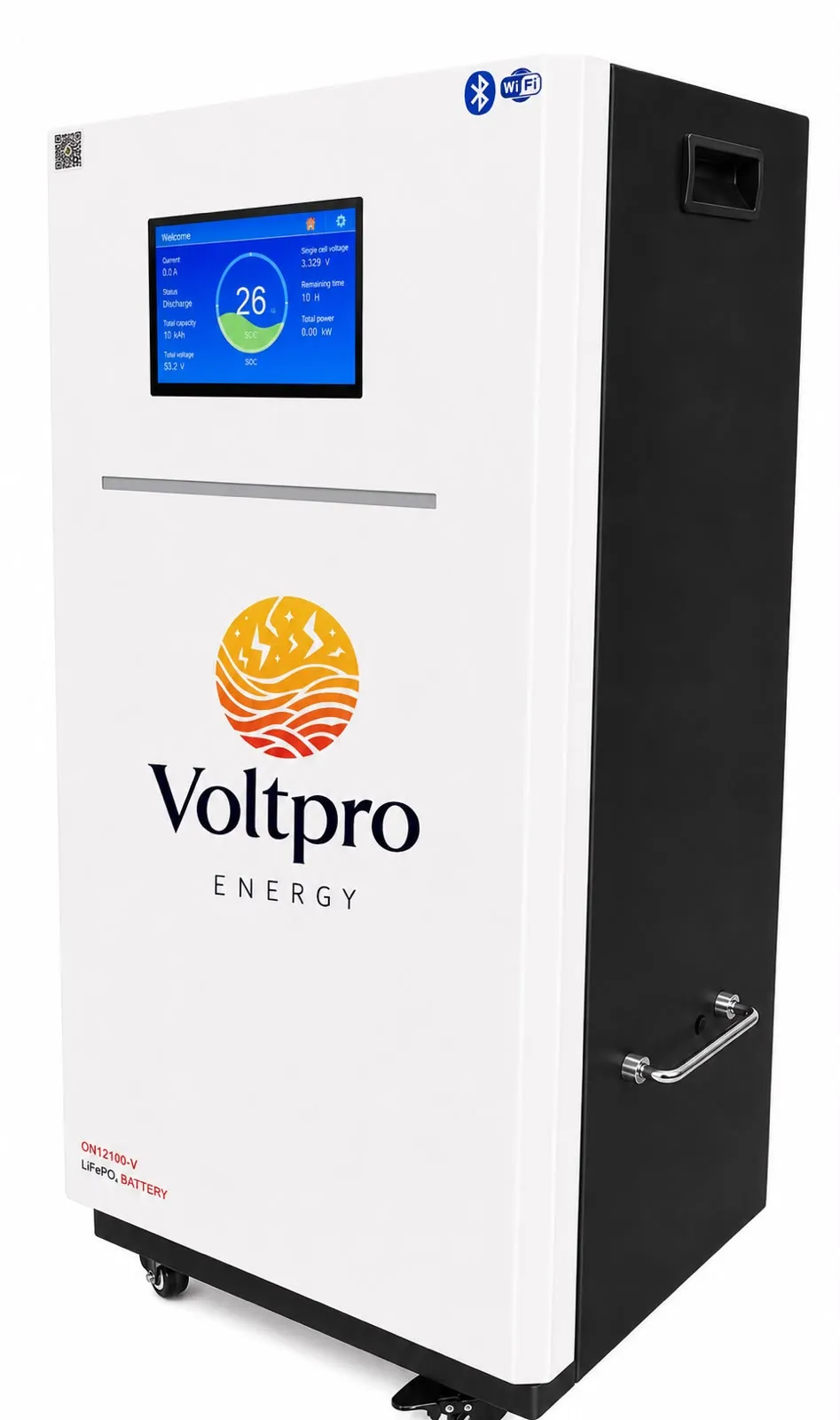

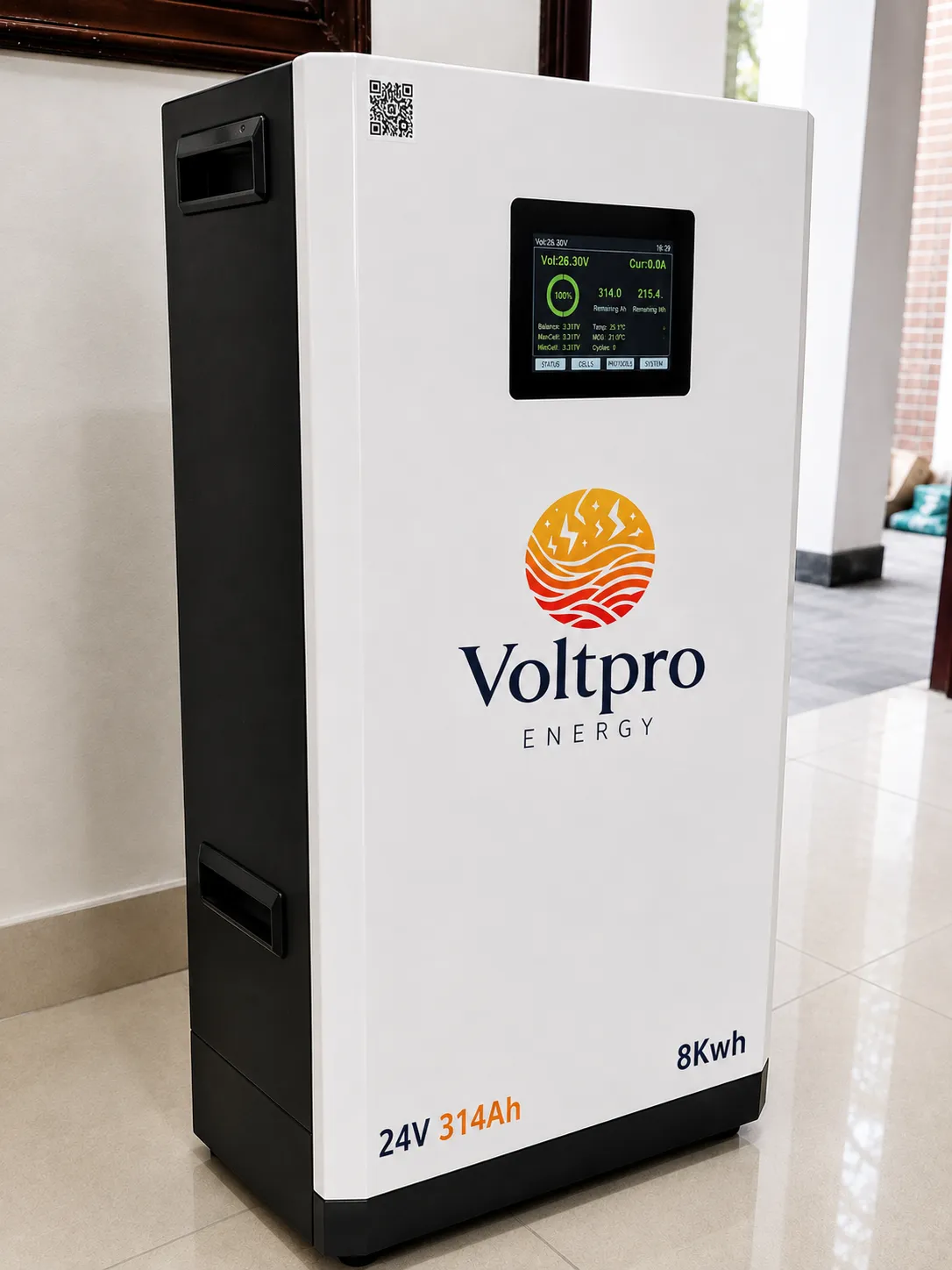

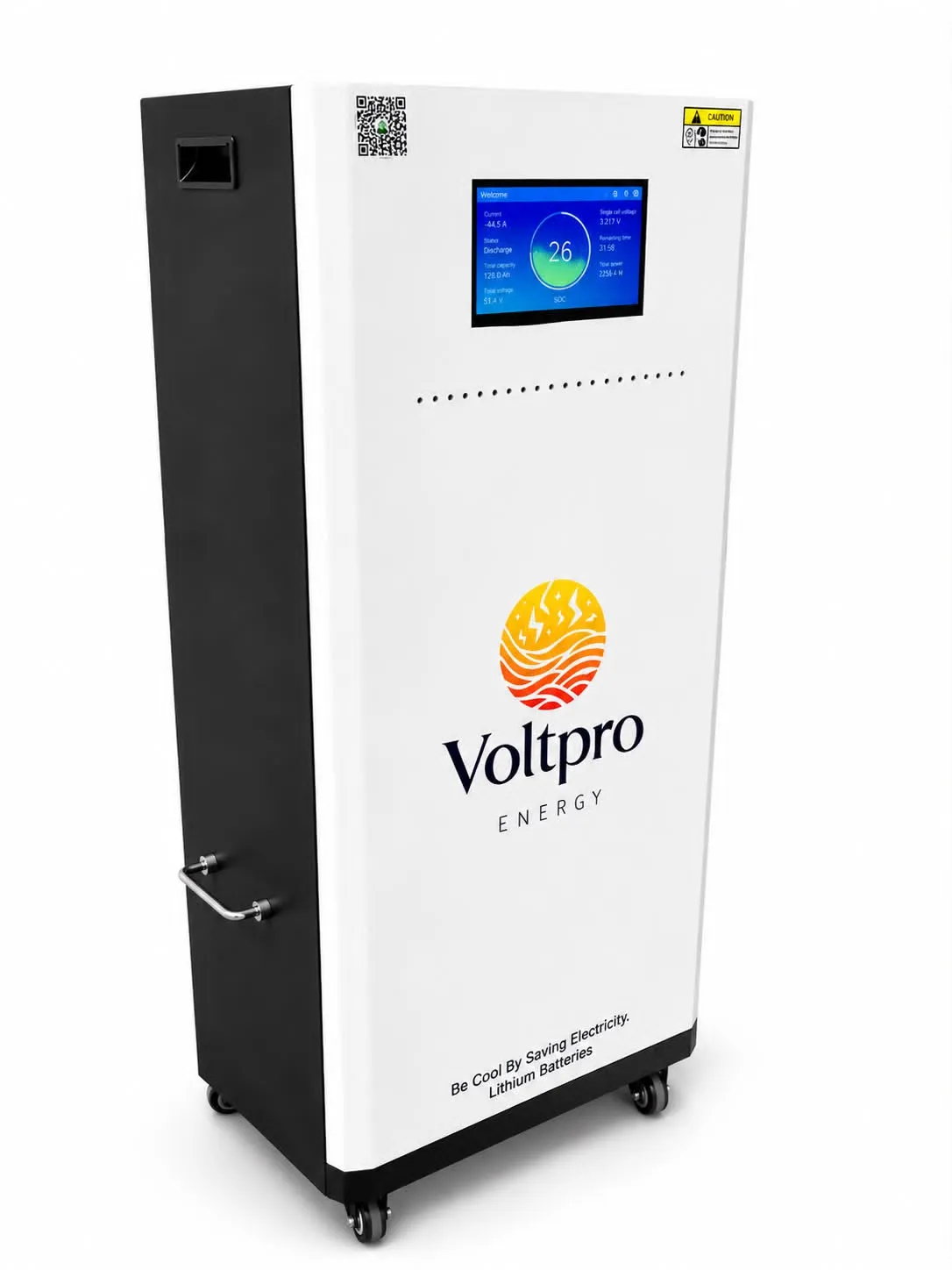

JK 4.3-Inch Touchscreen LCD

The battery is equipped with a JK 4.3-inch Touchscreen LCD Display.

The touchscreen provides a convenient interface for checking battery information directly from the battery without depending entirely on a mobile phone or external monitoring system.

Information Available on the Touchscreen

Depending on the BMS configuration, the display can show:

Total Battery Voltage

Battery Current

Battery Power

Battery SOC %

Individual Cell Voltages

Cell Voltage Difference

Active Balancing Status

Balance Current

Battery Temperature

MOS Temperature

Charging Status

Discharging Status

Cycle Information

Protection/Alarm Status

The touchscreen makes battery monitoring much easier for home, commercial and solar installations.

24V 314Ah Battery Energy Capacity

The battery provides approximately:

25.6V × 314Ah = 8,038Wh

Therefore, the battery stores approximately 8.04kWh of nominal energy.

Actual usable energy depends on:

BMS settings

Depth of discharge

Inverter efficiency

Load characteristics

Battery temperature

Operating conditions

Backup Time Examples

The following figures are approximate and based on the battery's 8.04kWh nominal energy.

Load Approx. Theoretical Backup Approx. at 90% System Efficiency

100W ~80.4 Hours ~72.4 Hours

250W ~32.2 Hours ~28.9 Hours

500W ~16.1 Hours ~14.5 Hours

750W ~10.7 Hours ~9.6 Hours

1000W ~8.0 Hours ~7.2 Hours

1500W ~5.36 Hours ~4.82 Hours

2000W ~4.02 Hours ~3.62 Hours

2500W ~3.22 Hours ~2.89 Hours

3000W ~2.68 Hours ~2.41 Hours

4000W ~2.01 Hours ~1.81 Hours

5000W ~1.61 Hours ~1.45 Hours

6000W ~1.34 Hours ~1.21 Hours

Note: These are estimated values. Actual backup time varies according to battery usable capacity, inverter efficiency, power factor, temperature, BMS settings and actual load.

What Can a 24V 314Ah Battery Run?

With a correctly sized inverter, this battery can provide backup for a wide range of household and commercial loads.

Home Appliances

LED Lights

Ceiling Fans

LED TV

Wi-Fi Router

CCTV System

Computers

Laptops

Refrigerator

Deep Freezer

Internet/Networking Equipment

LED Lighting Systems

Small Water Pumps*

Other compatible appliances

*Motor loads require an inverter capable of handling the appliance's startup/surge current.

Example Home Backup

For example, a combined load of:

5 LED Lights

3 Fans

Wi-Fi Router

CCTV System

LED TV

Computer

can be supported by this battery depending on the actual wattage of each appliance and the inverter configuration.

For heavier loads such as refrigerators, freezers, pumps or air conditioners, the inverter must be appropriately sized for both continuous and startup power.

Suitable Applications

☀️ Solar Energy Storage

Store solar energy during the day and use it during nighttime or periods of low solar generation.

🏠 Home Backup

Provides substantial backup capacity for essential household appliances.

⚡ Hybrid Inverter Systems

The JK Inverter BMS makes the battery suitable for compatible inverter communication systems.

🏢 Commercial Backup

The high 314Ah capacity can support larger backup requirements.

🌐 Off-Grid Systems

Suitable for remote locations where reliable energy storage is required.

🔋 UPS Systems

Can be used with compatible 24V LiFePO4 UPS/inverter systems.)
