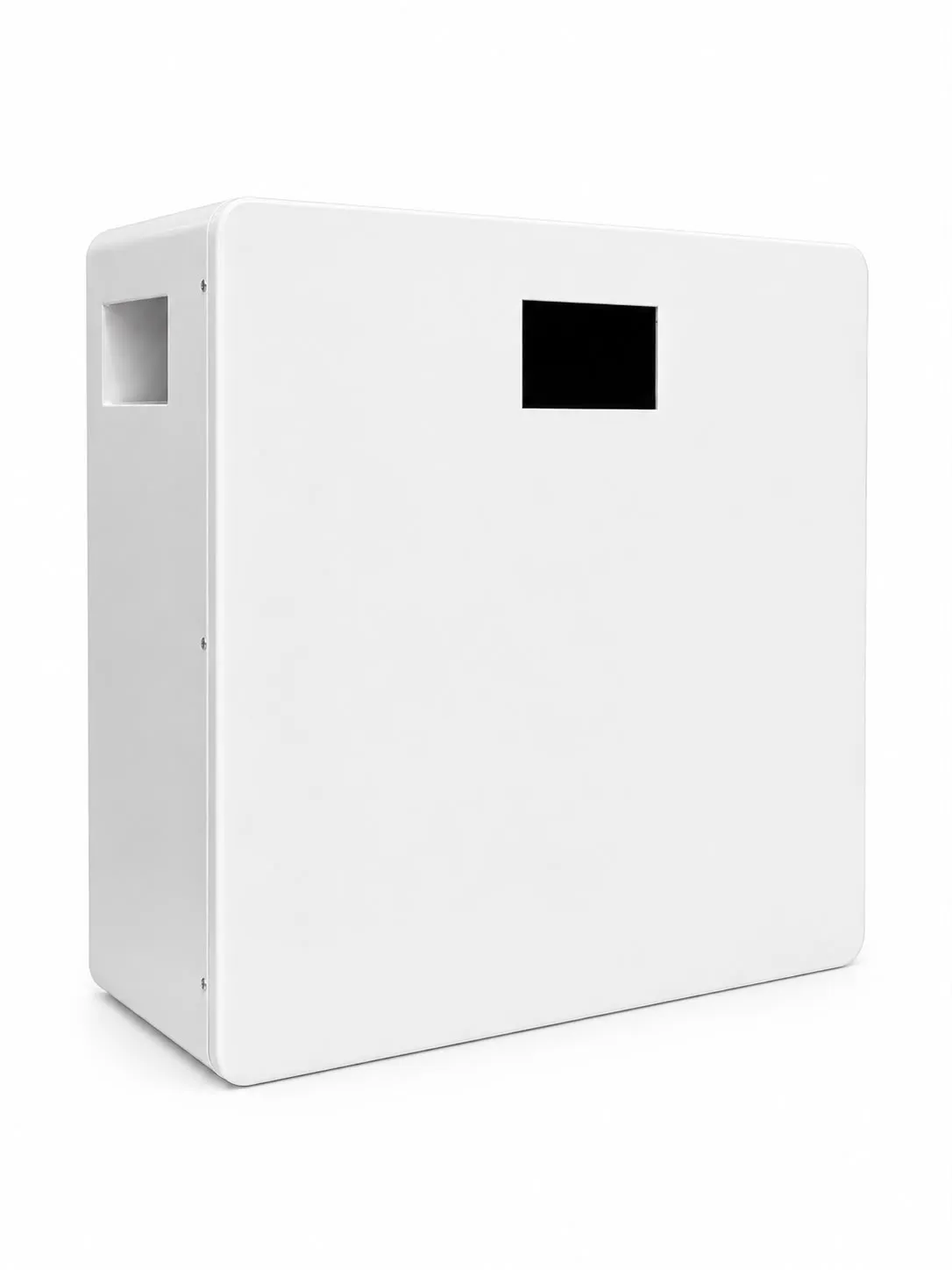

Voltpro Energy 8S 24V 100Ah LiFePO4 Battery Box JK Inverter BMS Support

Product Description

The Voltpro Energy 8S 100Ah LiFePO4 Battery Box is a strong and professionally designed metal battery enclosure for building custom 24V 100Ah or 12V 200Ah LiFePO4 battery packs, depending on the selected cell configuration.

Designed for compatible 100Ah prismatic cells, this casing provides dedicated space for battery cells, BMS installation, communication components and high-current battery connections. It supports both Smart BMS and JK Inverter BMS, making it suitable for conventional smart battery systems as well as inverter-communication applications.

The enclosure includes two internal cell-supporting metal strips for improved cell positioning and comes with a wall-mounting bracket, making it suitable for both portable and fixed installations.

Product Overview

The Voltpro Energy 8S 100Ah Battery Box is designed for battery builders who need a versatile enclosure capable of supporting different battery configurations.

Depending on the cell configuration and wiring arrangement, the enclosure can be used to build:

24V 100Ah LiFePO4 Battery

12V 200Ah LiFePO4 Battery

The casing provides sufficient space for installing a suitable Smart BMS, JK Inverter BMS, and a compatible communication board.

Its organized internal structure allows battery builders to create a clean, secure and professional battery assembly while keeping the major components properly positioned.

Key Features

Designed for custom LiFePO4 battery assembly

Suitable for 24V 100Ah battery configuration

Suitable for 12V 200Ah battery configuration

Compatible with suitable 100Ah prismatic cells

Strong metal construction

Two internal cell-supporting metal strips

Helps keep cells securely positioned

Supports Smart BMS installation

Supports JK Inverter BMS installation

Communication board can be installed

Suitable for inverter communication applications

Includes wall-mounting bracket

Wall-mountable design

Professional battery enclosure

Suitable for solar and inverter applications

Suitable for custom and professional battery assembly

24V 100Ah Battery Configuration

The enclosure can be configured to build a 24V 100Ah LiFePO4 battery using an appropriate 8S 100Ah cell configuration.

A properly configured 8S LiFePO4 battery provides approximately:

25.6V × 100Ah = 2.56kWh nominal energy

This configuration is suitable for compatible solar inverters, UPS systems, backup applications and other 24V energy-storage systems.

12V 200Ah Battery Configuration

The same enclosure can also be used to build a 12V 200Ah LiFePO4 battery, depending on the selected cell arrangement and suitable components.

This provides approximately:

12.8V × 200Ah = 2.56kWh nominal energy

This makes the enclosure a versatile option for battery builders who want to manufacture different battery configurations using the same professional casing platform.

Smart BMS Support

The casing provides space for installing a suitable Smart BMS.

A Smart BMS can provide battery monitoring and protection functions such as:

Cell voltage monitoring

Battery voltage monitoring

Temperature monitoring

Overcharge protection

Over-discharge protection

Over-current protection

Short-circuit protection

Cell balancing

The exact features depend on the selected BMS model.

JK Inverter BMS Support

The enclosure can also accommodate a compatible JK Inverter BMS.

This is particularly useful when the battery is intended for an inverter system where BMS-to-inverter communication is required.

Depending on the selected JK BMS and inverter, communication may allow the inverter to receive battery information such as:

Battery Voltage

Battery Current

SOC

Charging Status

Discharging Status

Battery Temperature

Cell Voltage

Protection/Alarm Information

Important: Actual inverter communication depends on the BMS model, inverter compatibility, communication protocol, cable/interface and correct configuration.

Communication Board Support

A dedicated communication board can also be installed inside the enclosure.

This provides additional flexibility for battery builders who want to configure the completed battery for intelligent monitoring or inverter communication.

The exact communication capability depends on the selected BMS and communication board.

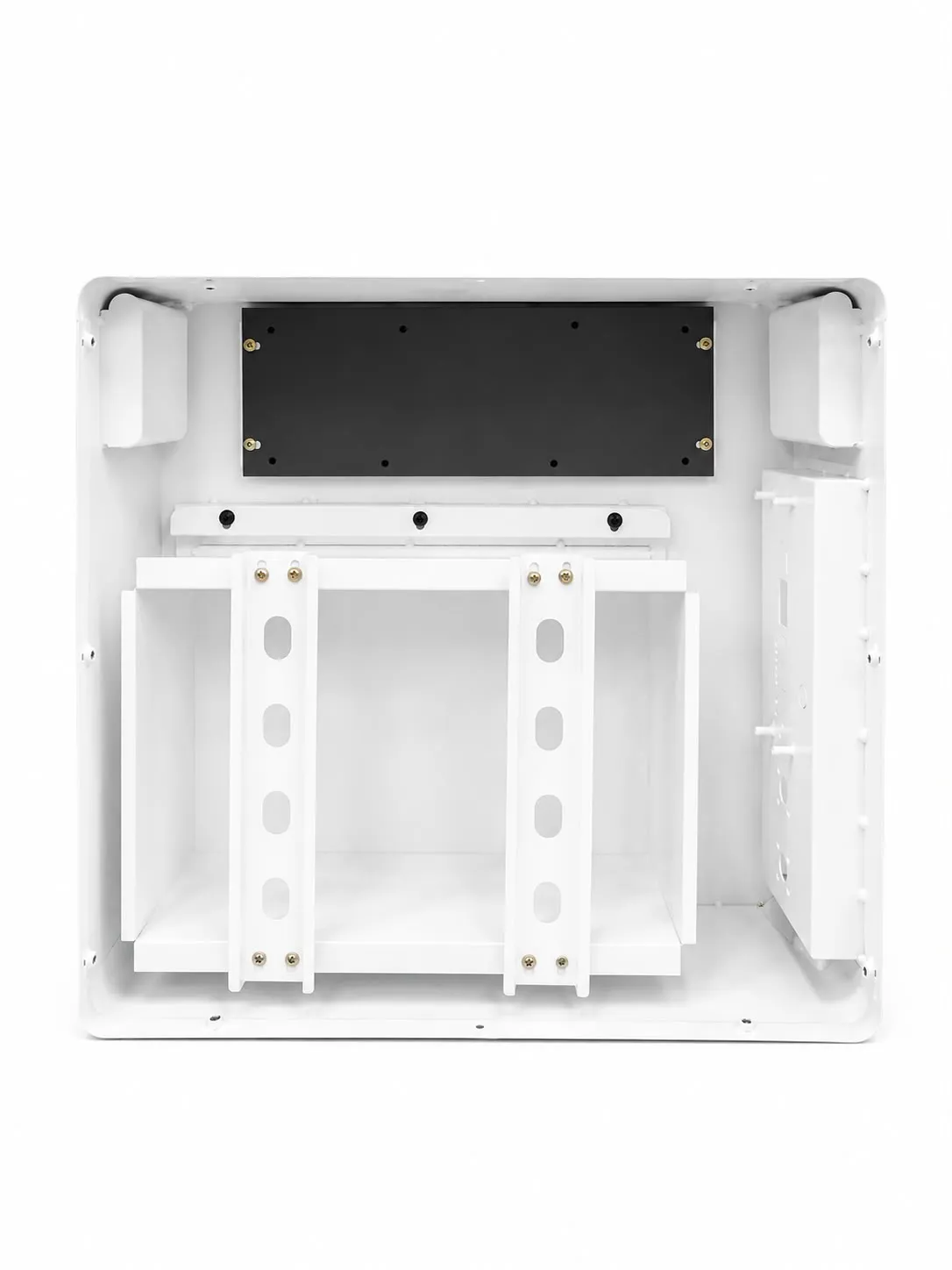

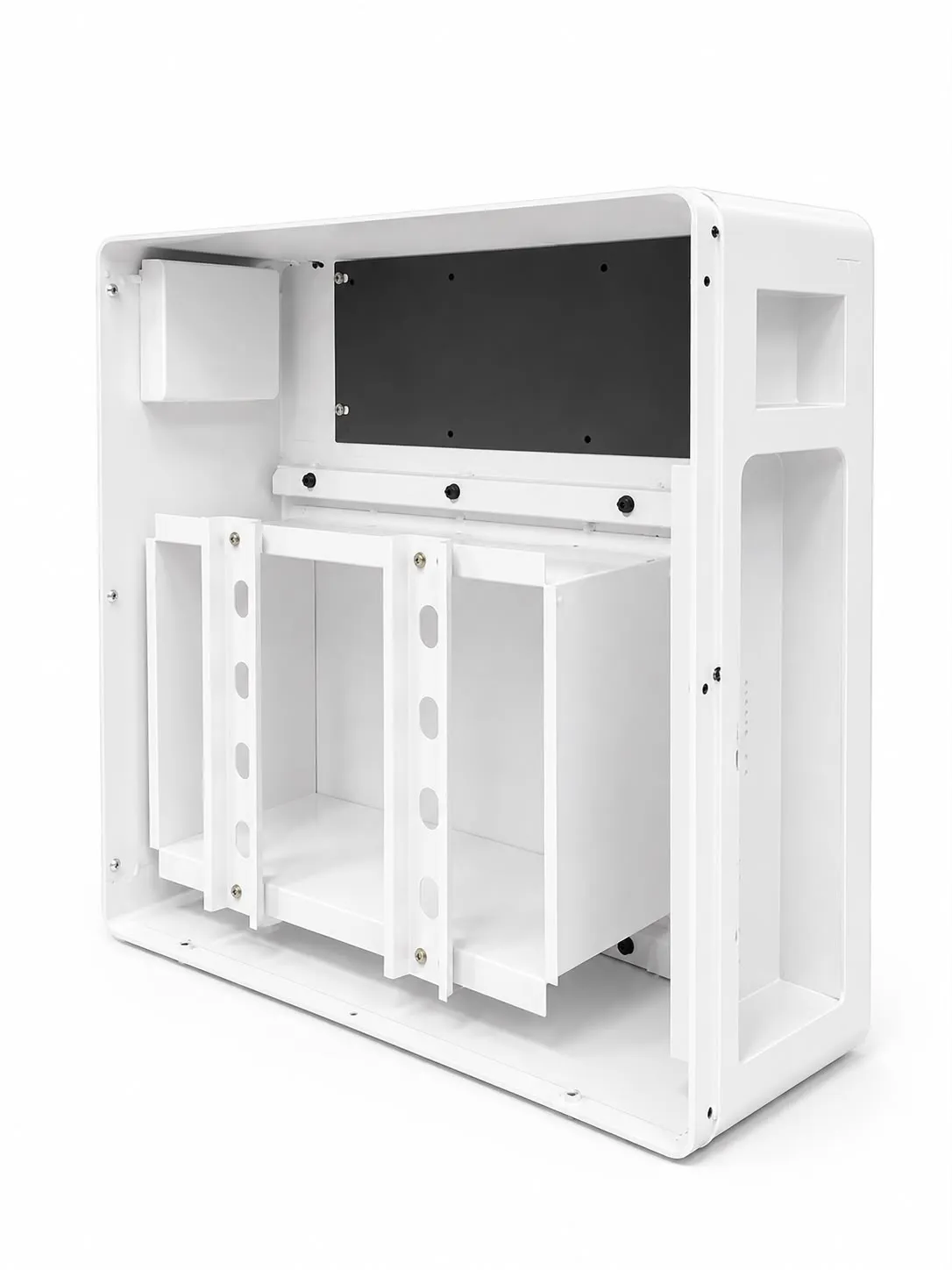

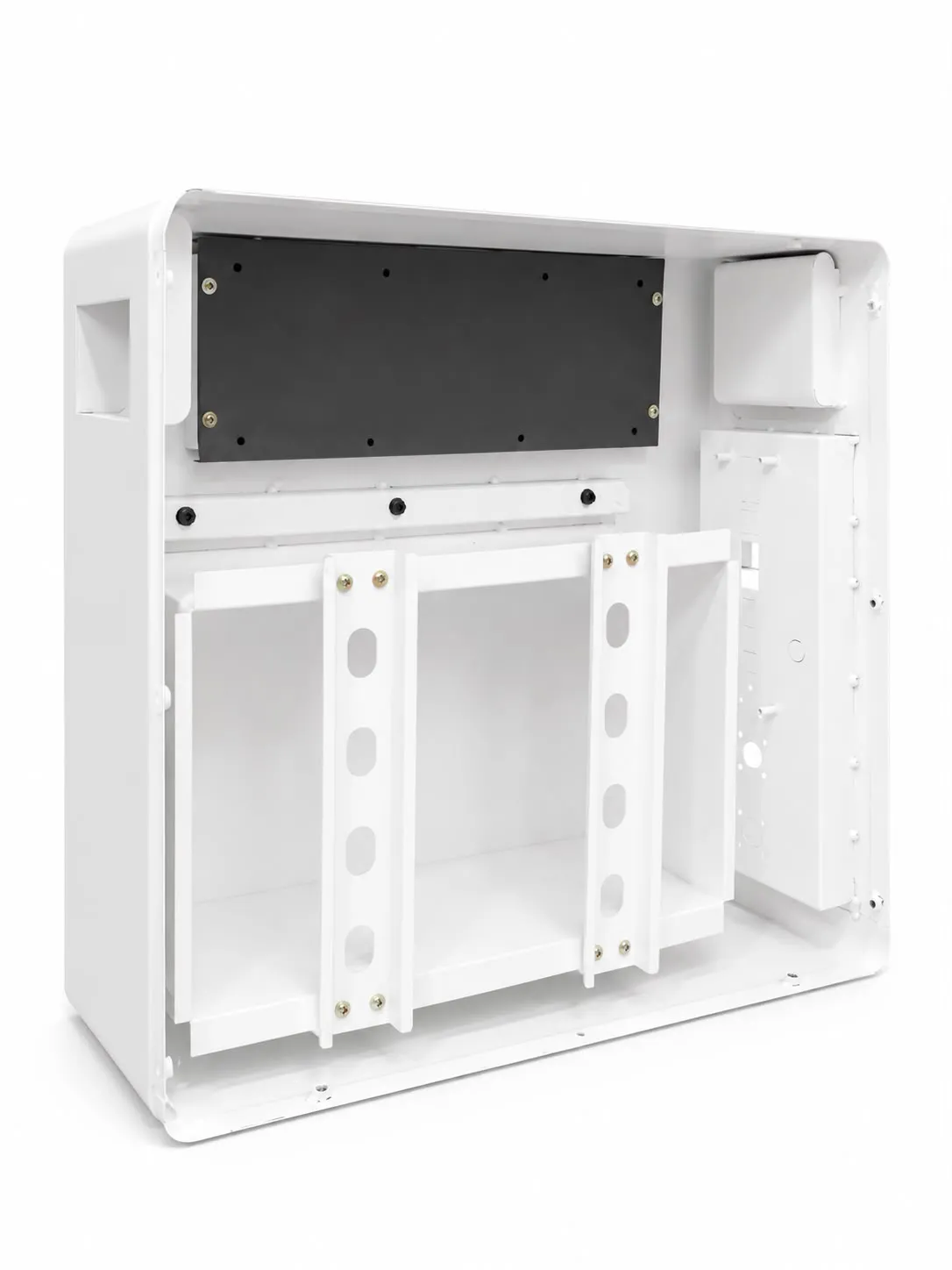

Dual Internal Cell-Supporting Strips

The enclosure features two internal supporting metal strips designed to help secure the battery cells inside the casing.

These supporting structures help:

Keep cells properly positioned

Reduce unwanted cell movement

Improve mechanical stability

Maintain an organized internal layout

Provide a more professional battery assembly

Proper insulation and cell securing methods should still be used during battery assembly.

Wall-Mounting Design

A wall-mounting bracket is included with the enclosure, allowing the completed battery to be securely installed on a suitable wall or mounting surface.

This makes the battery box suitable for:

Wall-Mounted Solar Batteries

Home Backup Systems

UPS Installations

Inverter Battery Systems

Fixed Energy Storage Applications

The wall-mounting arrangement also helps save floor space.

Applications

The Voltpro Energy 8S 100Ah Battery Box is suitable for building batteries for:

☀️ Solar Energy Storage

🏠 Home Backup Systems

⚡ Hybrid Inverter Systems

🔋 UPS Systems

🔌 Inverter Battery Applications

🏢 Commercial Backup

🌐 Off-Grid Energy Storage

🔧 DIY Battery Projects

🛠️ Professional Battery Assembly

Technical Specifications

Specification Details

Product Type Empty Metal Battery Box / Casing

Primary Configuration 8S 100Ah

Supported Battery 24V 100Ah / 12V 200Ah

Battery Chemistry LiFePO4

Cell Type Compatible Prismatic Cells

BMS Support Smart BMS

Inverter BMS Support JK Inverter BMS

Communication Board Supported

Cell Support 2 Internal Metal Supporting Strips

Wall Mount Yes

Wall Mount Bracket Included

Installation Type Wall Mount / Fixed Installation

Application Solar, Inverter, UPS, Backup & Off-Grid

Product Condition Empty Battery Casing

Cells Included No

BMS Included No

Battery Included No

Why Choose This Battery Box?

The Voltpro Energy 8S 100Ah Battery Box is designed for battery builders who need flexibility, strength and professional installation options.

Unlike a basic battery enclosure, this casing can be configured for both 24V 100Ah and 12V 200Ah battery applications and provides space for a conventional Smart BMS as well as a JK Inverter BMS with communication capability.

The addition of two internal cell-supporting strips and an included wall-mounting bracket makes it particularly suitable for professional battery assembly and fixed solar/inverter installations.

Package Includes

1 × 8S 100Ah Metal Battery Box / Casing

1 × Wall-Mounting Bracket

Not Included

Battery Cells

BMS

JK Inverter BMS

Communication Board

LCD Display

Battery Terminals

Battery Cables

Other electrical components

Important Compatibility Note

This is an empty battery enclosure intended for custom battery assembly. Before installation, confirm the dimensions of the selected cells, BMS, communication board, terminals and other components to ensure proper physical and electrical compatibility.

The final current capacity, energy capacity and communication functionality of the completed battery depend on the selected cells, BMS and other components."
