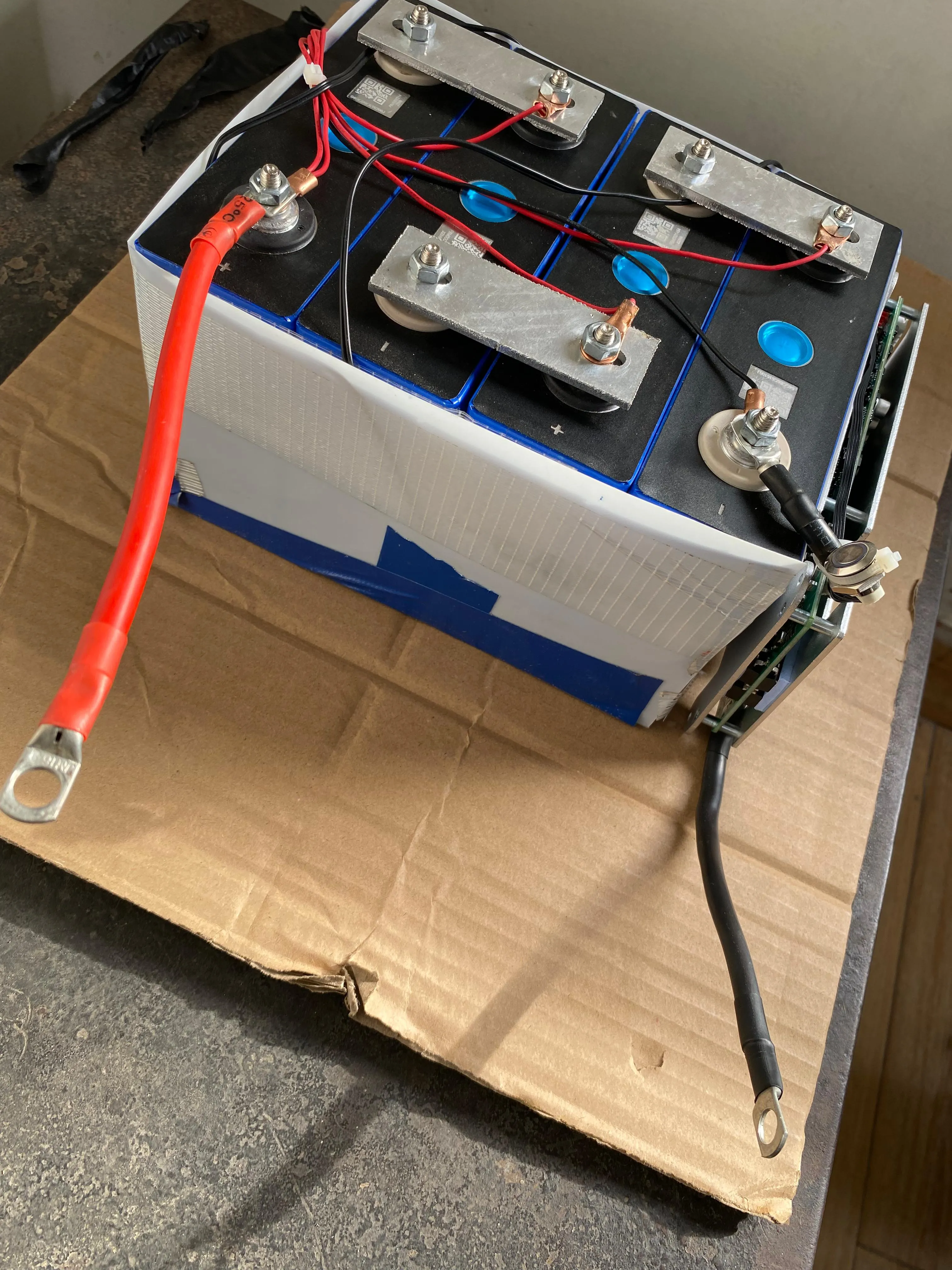

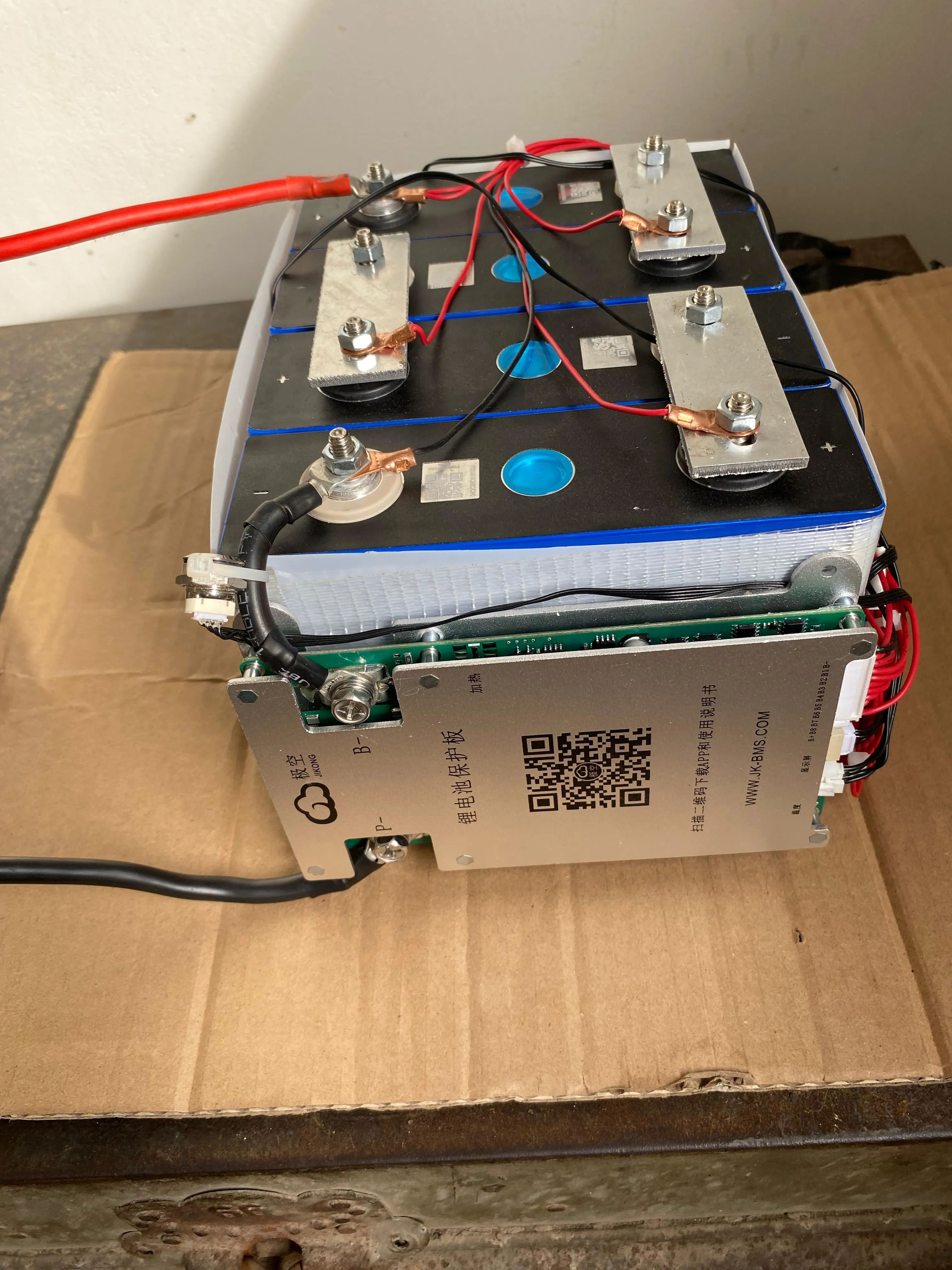

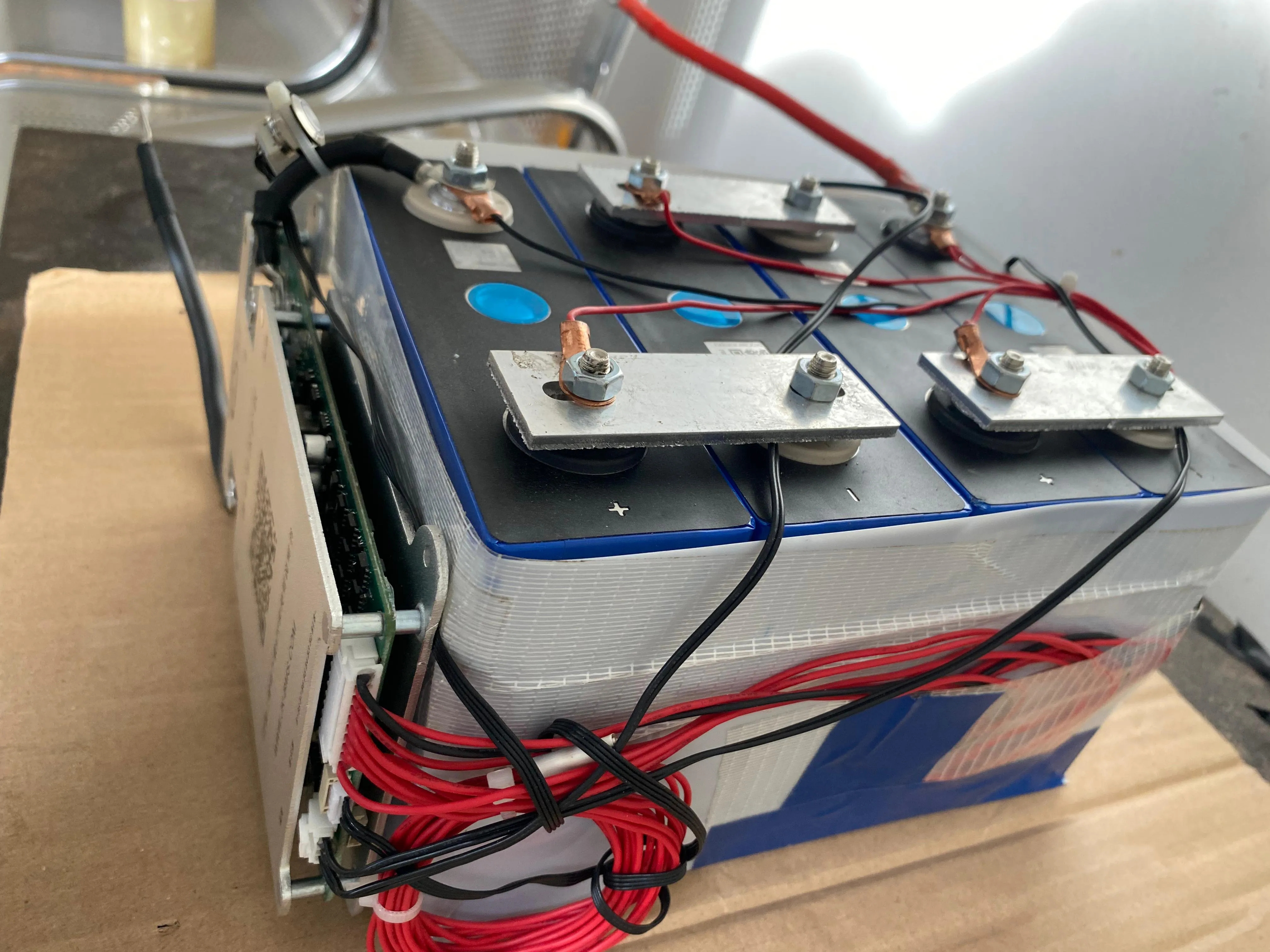

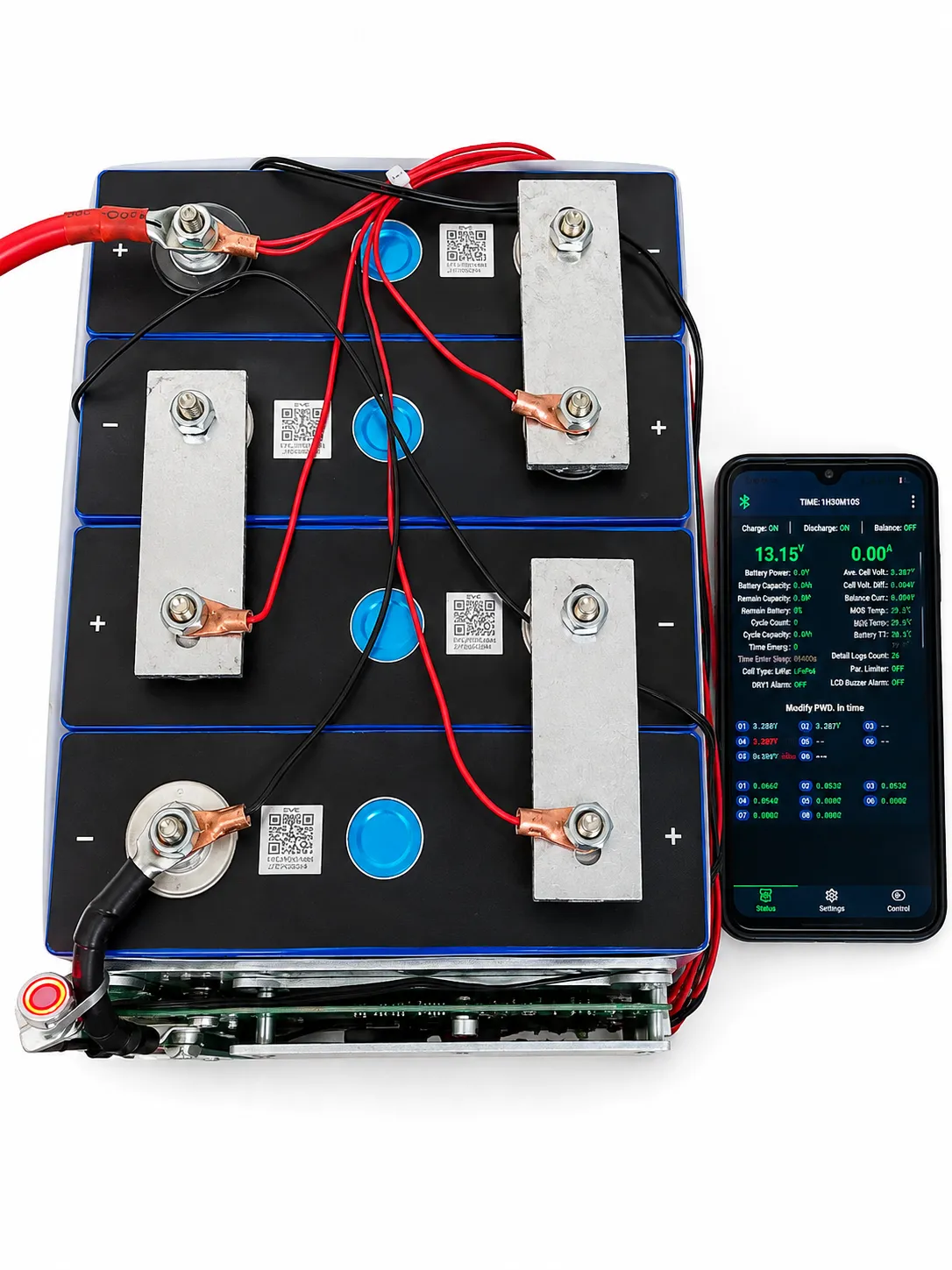

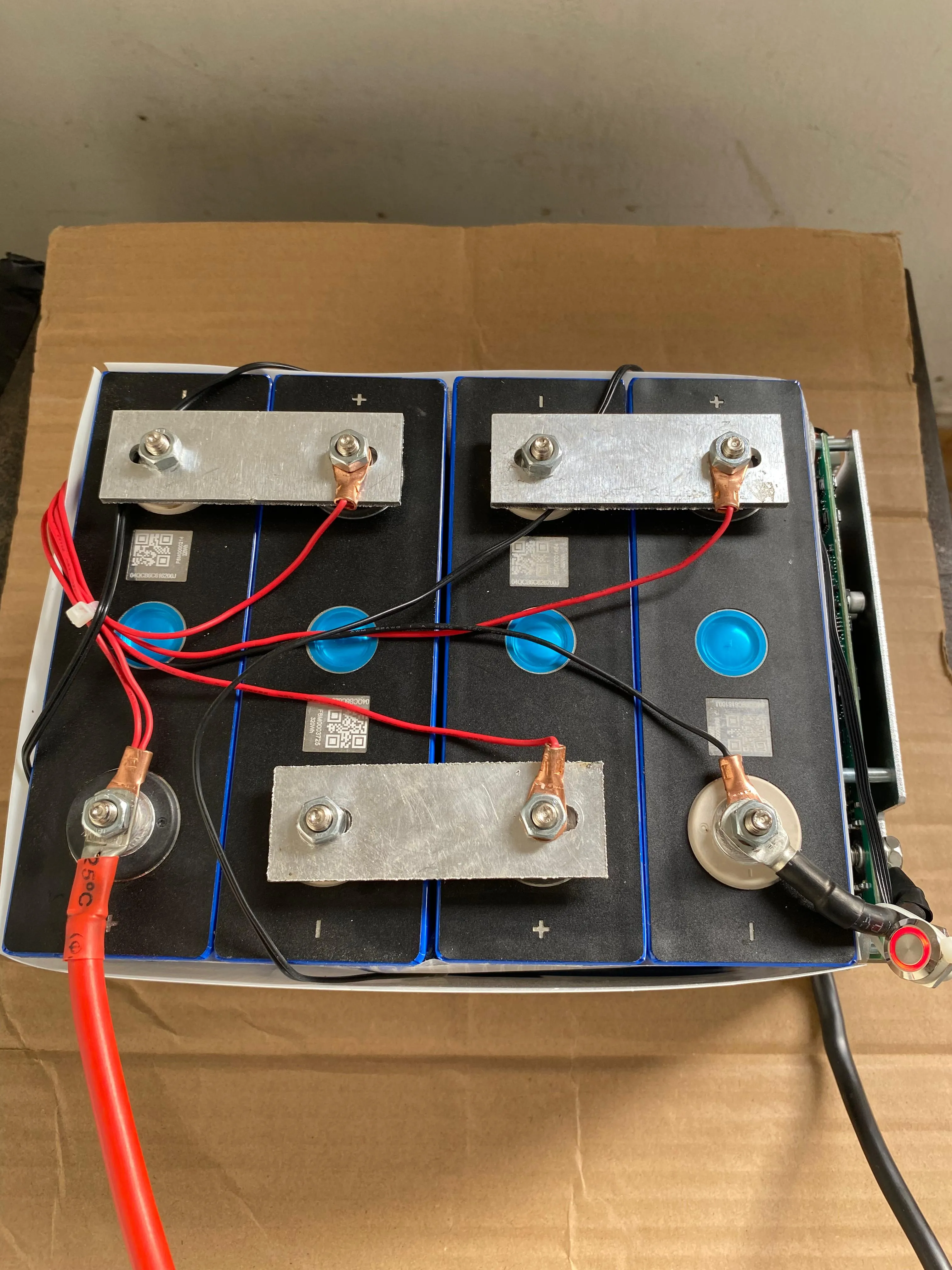

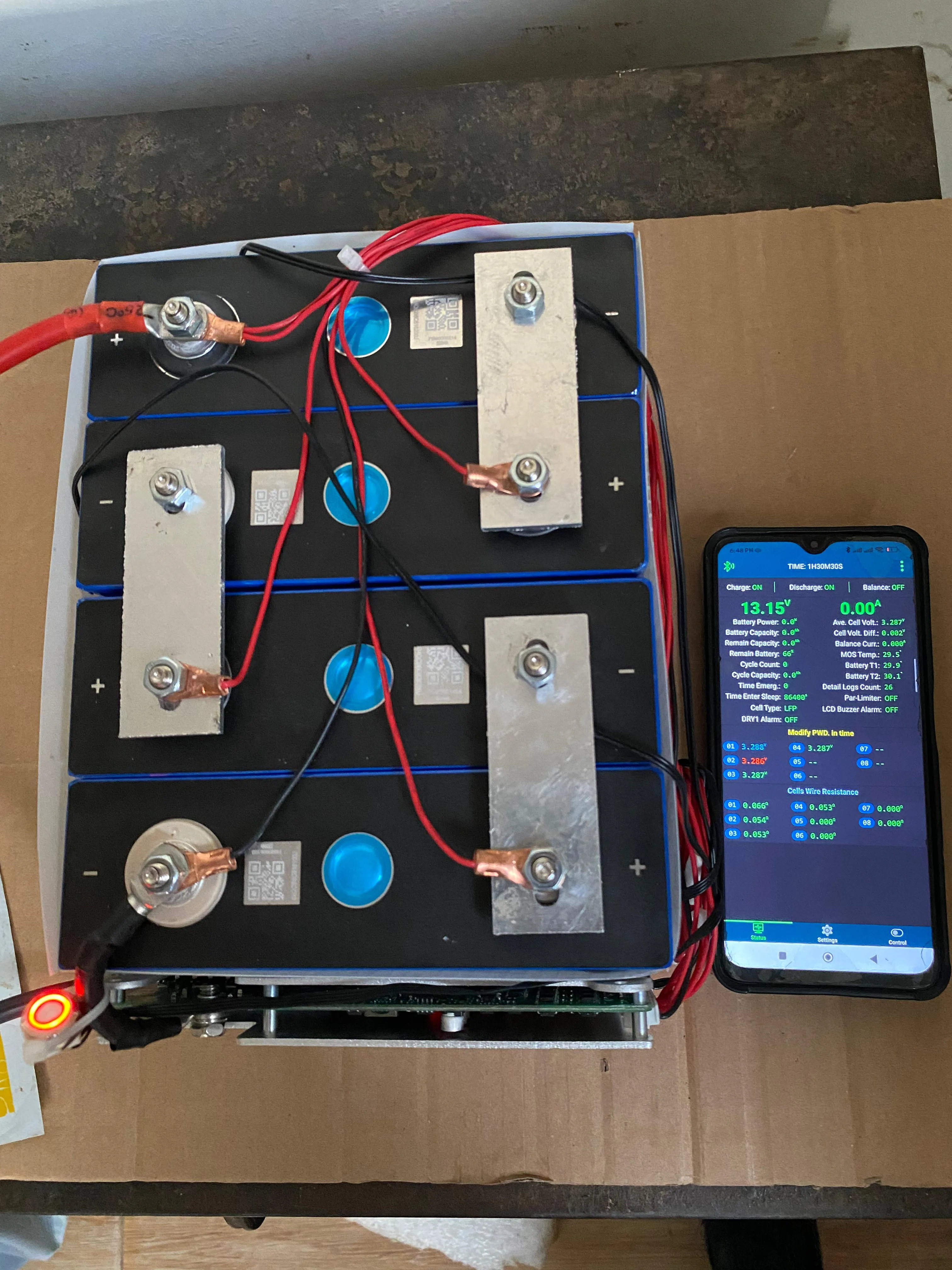

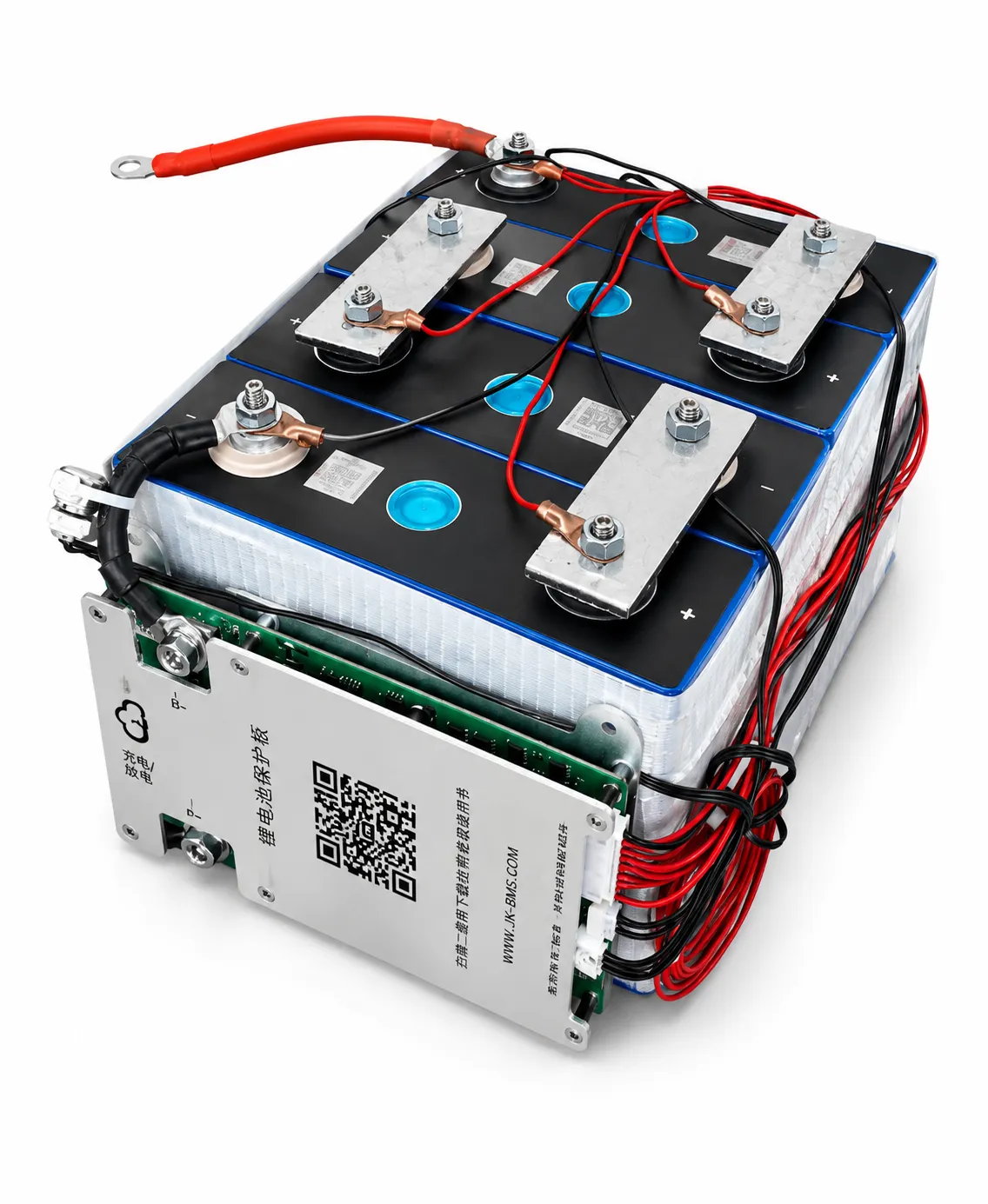

12V 100Ah LiFePO4 Open Battery EVE A Grade 6000+ Cycles

Product Description

The Voltpro Energy 12V 100Ah LiFePO4 Battery is designed for users who need a dependable, long-life and high-performance energy storage solution for 12V systems.

At the heart of the battery are EVE A-Grade LiFePO4 cells arranged in a 4S configuration to provide a nominal voltage of 12.8V and a capacity of 100Ah, giving approximately 1280Wh (1.28kWh) of nominal energy.

The battery uses a JK Smart BMS B18S10P to continuously manage and protect the battery cells. With 100A continuous discharge capability, up to 200A peak discharge and 1A active balancing, the BMS helps maintain cell voltage balance while providing essential protection during charging and discharging.

For high-current connections, the battery is assembled with 16mm² pure copper DC cables and 16mm² pure copper lugs. The main positive and negative cables are supplied in red and black, with approximately 1-foot cable length for convenient connection.

Key Highlights

12.8V 100Ah LiFePO4 Battery

1280Wh / 1.28kWh Nominal Energy

EVE A-Grade LiFePO4 Cells

6000+ Cycle Life

Approx. 0.28mΩ Cell IR

JK Smart BMS B18S10P

100A Continuous Discharge

200A Peak Discharge

1A Active Cell Balancing

4S LiFePO4 Configuration

16mm² Pure Copper DC Cables

16mm² Pure Copper Lugs

Suitable for Solar, Inverter, UPS & Backup Systems

Main Features

1. EVE A-Grade LiFePO4 Cells

The battery is built using EVE A-Grade LiFePO4 cells selected for consistent performance, low internal resistance and long-term energy storage applications.

With a rated cycle life of 6000+ cycles, LiFePO4 chemistry offers significantly longer service life compared with conventional lead-acid batteries when properly operated.

2. JK Smart BMS B18S10P

The integrated JK Smart BMS B18S10P provides intelligent battery management and helps protect the battery during normal operation.

BMS specifications:

Continuous Discharge: 100A

Peak Discharge: Up to 200A

Active Balancing: 1A

Cell Voltage Monitoring

Overcharge Protection

Over-Discharge Protection

Over-Current Protection

Short-Circuit Protection

Temperature Protection

3. 1A Active Cell Balancing

The BMS incorporates 1A Active Balancing to help maintain better voltage consistency between individual cells.

Active balancing can transfer energy between cells instead of simply dissipating excess energy as heat, helping the battery maintain better cell balance during operation.

4. Heavy-Duty Pure Copper Wiring

The battery uses 16mm² pure copper DC cables for the main current connections.

Pure copper provides excellent electrical conductivity and is well suited for high-current battery applications.

The battery includes:

16mm² Pure Copper DC Cable

16mm² Pure Copper Lugs

Red Positive Cable

Black Negative Cable

Approximately 1-Foot Main Cable Length

Battery Energy Capacity

The battery has a nominal capacity of:

12.8V × 100Ah = 1280Wh

This means the battery stores approximately 1.28kWh of nominal energy.

Actual usable energy and backup time can vary depending on inverter efficiency, discharge current, operating temperature, battery condition and the type of connected load.

Approximate Backup Examples

Load Approximate Backup

100W ~10–11 Hours

200W ~5–5.5 Hours

300W ~3.3–3.7 Hours

500W ~2–2.2 Hours

800W ~1.2–1.4 Hours

1000W ~1 Hour

Backup figures are approximate and can vary according to system efficiency and operating conditions.

Suitable Applications

The Voltpro Energy 12V 100Ah LiFePO4 Battery can be used in a wide range of energy storage applications:

Solar Systems

Suitable for small and medium 12V solar energy storage systems.

Inverter & UPS Backup

Can be used for backup applications where reliable DC energy storage is required.

Home Backup

Suitable for essential loads such as LED lights, Wi-Fi routers, CCTV systems, TVs and other compatible appliances when used with an appropriate inverter.

Off-Grid Systems

A practical option for cabins, small off-grid systems and remote power applications.

DC Power Systems

Suitable for various 12V DC applications requiring a rechargeable lithium battery.

Technical Specifications

Parameter Specification

Brand Voltpro Energy

Battery Type LiFePO4

Chemistry Lithium Iron Phosphate

Nominal Voltage 12.8V

Rated Capacity 100Ah

Nominal Energy 1280Wh / 1.28kWh

Cell Brand EVE

Cell Grade A Grade

Cell Configuration 4S

Cycle Life 6000+ Cycles

Cell Internal Resistance Approx. 0.28mΩ

BMS Brand JK Smart BMS

BMS Model B18S10P

Continuous Discharge 100A

Peak Discharge Up to 200A

Active Balancing 1A

Cell Monitoring Yes

Main DC Cable 16mm² Pure Copper

Cable Lugs 16mm² Pure Copper

Positive Cable Red

Negative Cable Black

Main Cable Length Approx. 1 Feett

Recommended Use Solar / Inverter / UPS / Backup / Off-Grid

Safety & Installation

For best performance and safety, the battery should be installed and connected by a qualified technician. Use an appropriate 12V LiFePO4-compatible charger/inverter and ensure correct polarity during installation.

Avoid short-circuiting the battery terminals and operate the battery within the recommended charging, discharging and temperature limits.
