EV LF50F 3.2V 50Ah A-Grade LiFePO4 Battery Cell 4000+ Cycles

Product Description

The EV LF50F 3.2V 50Ah LiFePO4 Battery Cell is a high-capacity prismatic lithium iron phosphate cell designed for custom battery packs, electric vehicles, solar energy storage, UPS systems and other energy-storage applications.

With a 3.2V nominal voltage and 50Ah rated capacity, the cell provides approximately 160Wh of nominal energy. It features a low internal resistance of ≤0.7mΩ, a maximum charge voltage of 3.65V and a maximum discharge rate of 1C.

The cell is specified for more than 4000 cycles under suitable operating conditions and offers a wide specified discharging temperature range of -30°C to 60°C.

Product Overview

The EV LF50F LiFePO4 Cell is a large-format prismatic battery cell designed for users who need higher capacity from each individual cell while maintaining the benefits of LiFePO4 chemistry.

Its 50Ah capacity makes it suitable for building compact battery packs with fewer cells compared with lower-capacity cells.

The prismatic format also makes the cell practical for organized battery-pack construction for EV, solar, UPS, backup and energy-storage applications.

Key Features

EV LF50F LiFePO4 Cell

3.2V Nominal Voltage

50Ah Rated Capacity

Approx. 160Wh Nominal Energy

Low Internal Resistance: ≤0.7mΩ

Maximum Charge Voltage: 3.65V

Maximum Discharge Rate: 1C

4000+ Cycle Life

Prismatic Cell Design

Wide Specified Discharging Temperature Range

Discharging Temperature: -30°C to 60°C

Approx. Weight: 1.2kg ± 0.3kg

Suitable for EV Battery Packs

Suitable for Solar Battery Packs

Suitable for UPS & Backup Systems

Suitable for Energy Storage Systems

Suitable for Custom LiFePO4 Battery Packs

Technical Specifications

Specification Details

Model EV LF50F

Cell Type LiFePO4 Prismatic Cell

Chemistry Lithium Iron Phosphate

Rated Capacity 50Ah

Nominal Voltage 3.2V

Nominal Energy Approx. 160Wh

Maximum Charge Voltage 3.65V

Internal Resistance ≤0.7mΩ

Maximum Discharge Rate 1C

Cycle Life >4000 Cycles*

Discharging Temperature -30°C to 60°C

Approx. Weight 1.2kg ± 0.3kg

Dimensions 26.7 × 148.3 × 129.8mm

Cell Format Prismatic

Application EV, Solar, UPS, ESS & Custom Battery Packs

*Cycle life depends on charging/discharging conditions, depth of discharge, temperature, current and other operating conditions.

3.2V 50Ah Capacity & Energy

Each EV LF50F cell has:

Nominal Voltage: 3.2V

Rated Capacity: 50Ah

Approximate nominal energy:

3.2V × 50Ah = 160Wh

Therefore, one cell provides approximately 160Wh of nominal energy.

Battery Pack Configurations

Multiple cells can be connected in series and parallel to create different battery voltages and capacities.

4S 50Ah – 12.8V 50Ah

4 × cells in series

Nominal energy:

12.8V × 50Ah = 640Wh

Suitable for building a 12V-class LiFePO4 battery.

8S 50Ah – 25.6V 50Ah

8 × cells in series

Nominal energy:

25.6V × 50Ah = 1.28kWh

Suitable for 24V-class battery systems.

12S 50Ah – 38.4V 50Ah

12 × cells in series

Nominal energy:

38.4V × 50Ah = 1.92kWh

Suitable for 36V-class applications.

16S 50Ah – 51.2V 50Ah

16 × cells in series

Nominal energy:

51.2V × 50Ah = 2.56kWh

Suitable for 48V/51.2V-class LiFePO4 battery systems.

Parallel Configuration

Connecting cells in parallel increases battery capacity while maintaining the same nominal voltage.

Examples:

1P = 50Ah

2P = 100Ah

3P = 150Ah

4P = 200Ah

For example, a 16S2P configuration using 50Ah cells can create approximately:

51.2V 100Ah

with nominal energy of approximately:

5.12kWh

4000+ Cycle Life

The EV LF50F cell is specified for more than 4000 cycles under suitable test and operating conditions.

Actual battery life depends on several factors, including:

Depth of discharge

Charging voltage

Charging current

Discharge current

Operating temperature

Cell balancing

BMS settings

Storage conditions

Proper battery design and correct charging parameters are important for achieving long-term performance.

Low Internal Resistance

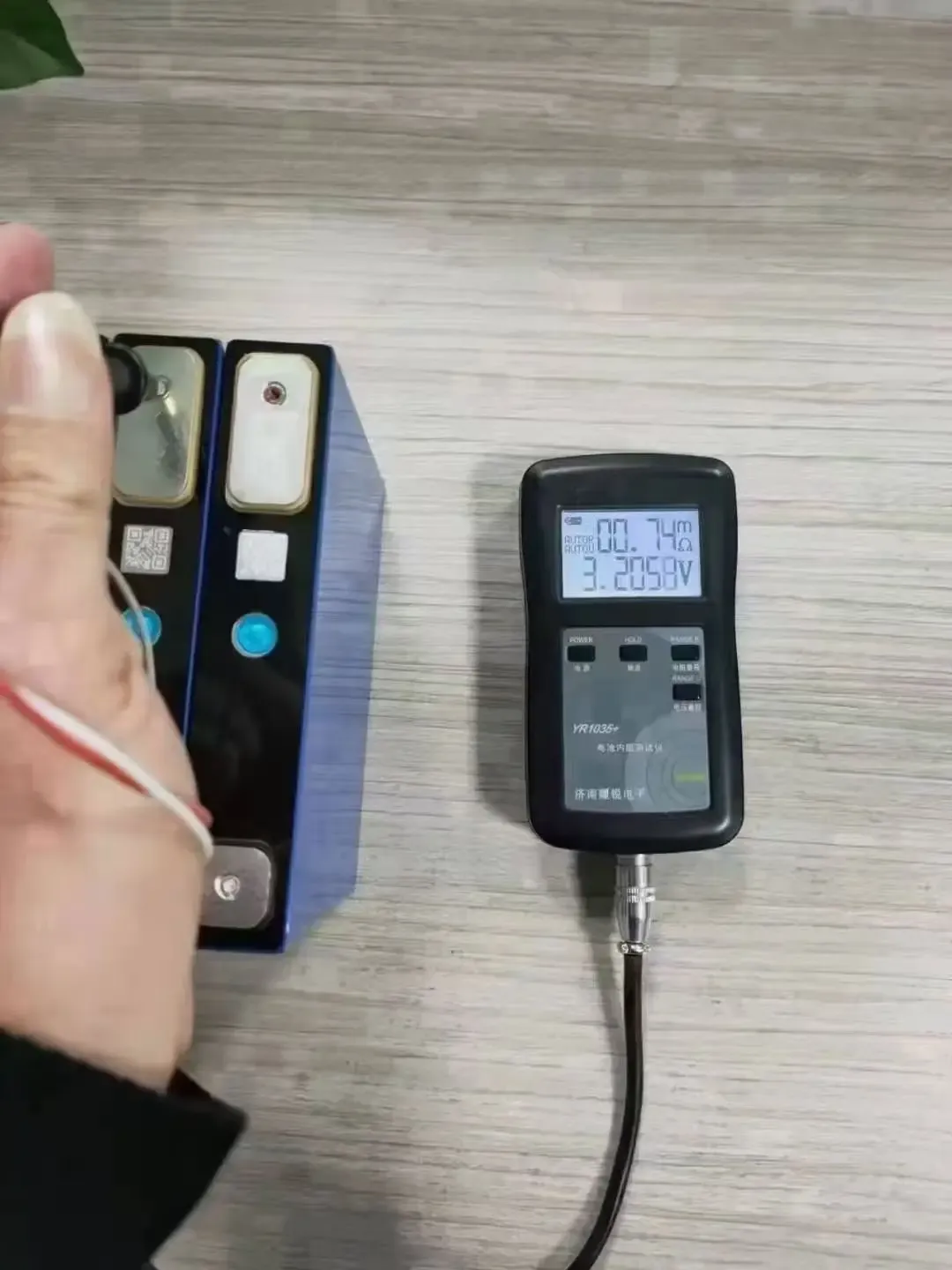

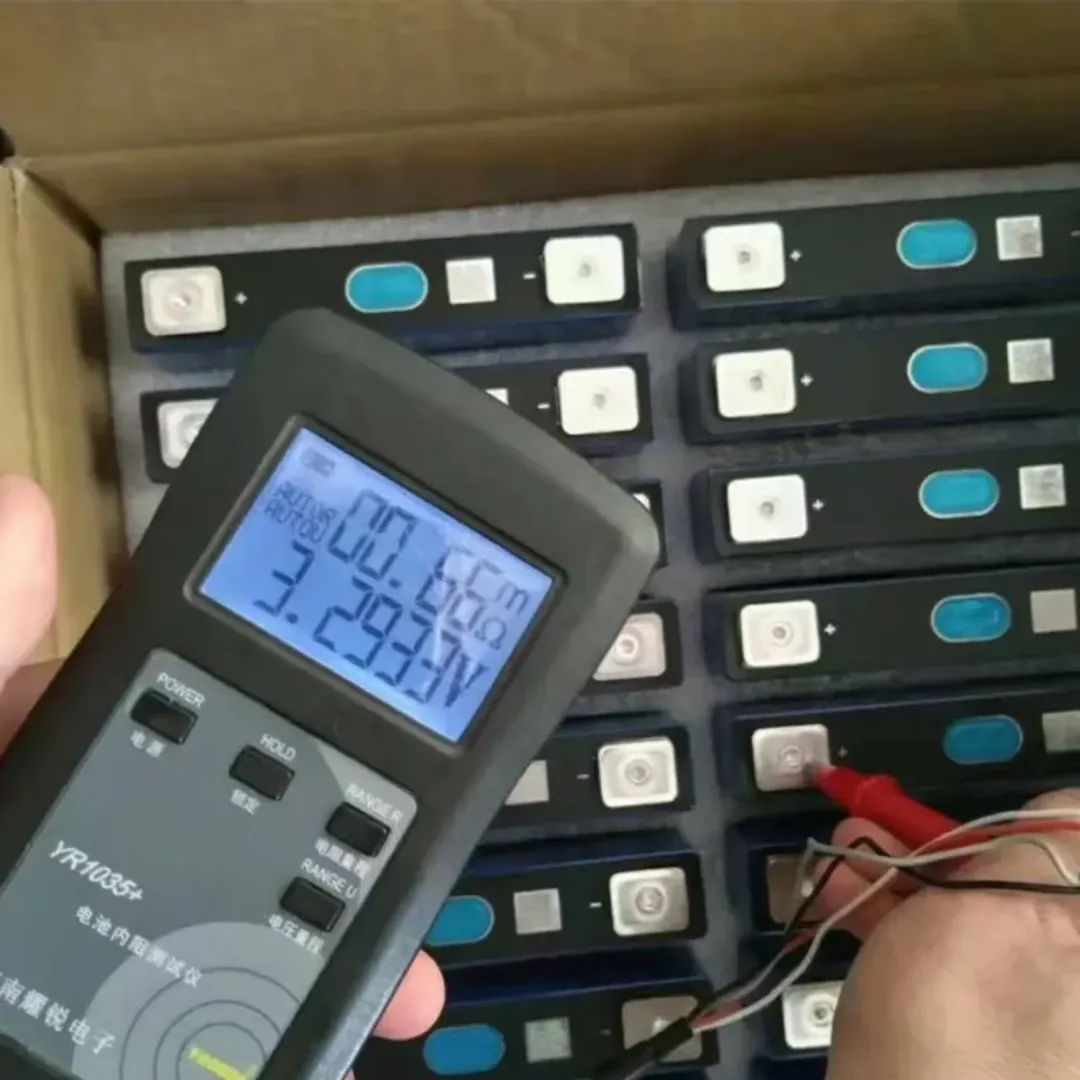

The cell specification indicates internal resistance of ≤0.7mΩ.

Low internal resistance can help reduce internal voltage drop and heat generation during current flow.

Actual resistance can vary depending on:

Cell temperature

State of charge

Measurement method

Cell age

Operating conditions

For multi-cell battery packs, proper cell matching is recommended.

1C Maximum Discharge Rate

The specified maximum discharge rate is 1C.

For a 50Ah cell:

50Ah × 1C = 50A

Therefore, based on the stated 1C specification, the cell's maximum discharge current is approximately 50A.

The final battery pack's allowable current must also consider the BMS, busbars, cables, terminals, connections and inverter/motor requirements.

Maximum Charge Voltage

The maximum charge voltage specified for the cell is:

3.65V per cell

A complete battery pack must use the appropriate charging voltage according to the number of cells connected in series and the manufacturer's recommended charging parameters.

A suitable LiFePO4 charger and BMS should always be used.

Temperature Range

The provided specification lists a discharging temperature range of:

-30°C to 60°C

Actual charging temperature requirements should be followed according to the manufacturer's specification and the final battery/BMS design.

Operating outside recommended temperature limits can affect safety, performance and cycle life.

Applications

⚡ Electric Vehicles

Suitable for compatible EV battery packs, electric bikes, scooters and other electric mobility applications.

☀️ Solar Energy Storage

Can be used to build LiFePO4 battery packs for solar energy storage.

🔋 UPS & Backup

Suitable for compatible UPS and backup power systems.

🏠 Home Energy Storage

Can be used for custom home backup and energy-storage battery packs.

🏭 Commercial Energy Storage

Suitable for larger battery systems where the cell specifications meet the application's requirements.

🛠️ Custom Battery Packs

Suitable for professional battery builders and experienced DIY users.

Why Choose EV LF50F 50Ah LiFePO4 Cells?

The EV LF50F 50Ah cell provides a useful combination of 3.2V nominal voltage, 50Ah capacity, low internal resistance and 4000+ specified cycle life.

Its prismatic format and 50Ah capacity make it suitable for creating different battery configurations through series and parallel connections.

It can be used for applications ranging from 12.8V and 25.6V battery packs to 51.2V energy-storage systems, depending on the required configuration.

Recommended Battery Assembly

For a professional battery pack:

Use cells with matching specifications.

Properly match and balance cells before assembly.

Use a suitable LiFePO4 BMS.

Use correctly rated busbars and cables.

Use suitable insulation and cell supports.

Ensure correct charging voltage.

Use an appropriately rated fuse/breaker.

Verify cell polarity before connection.

Follow proper battery assembly and safety procedures.

Package Includes

1 × EV LF50F 3.2V 50Ah LiFePO4 Prismatic Cell

Important Note

The specifications above are based on the product parameter information shown in the provided image. Actual performance and cycle life can vary according to charging/discharging conditions, temperature, depth of discharge, current and battery-pack configuration.

For multi-cell battery packs, always use a properly configured LiFePO4 BMS and ensure all cells are correctly matched before assembly.
