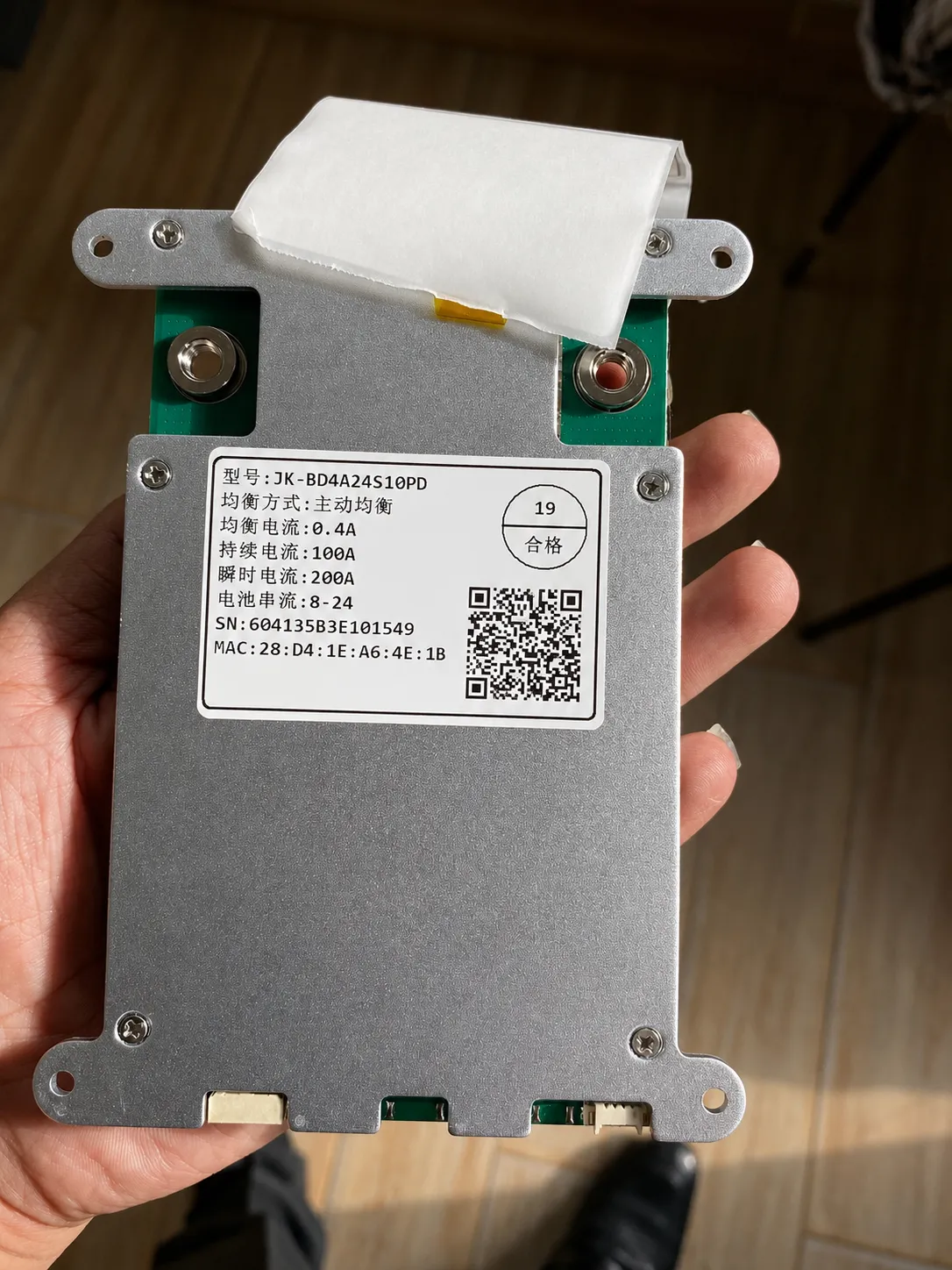

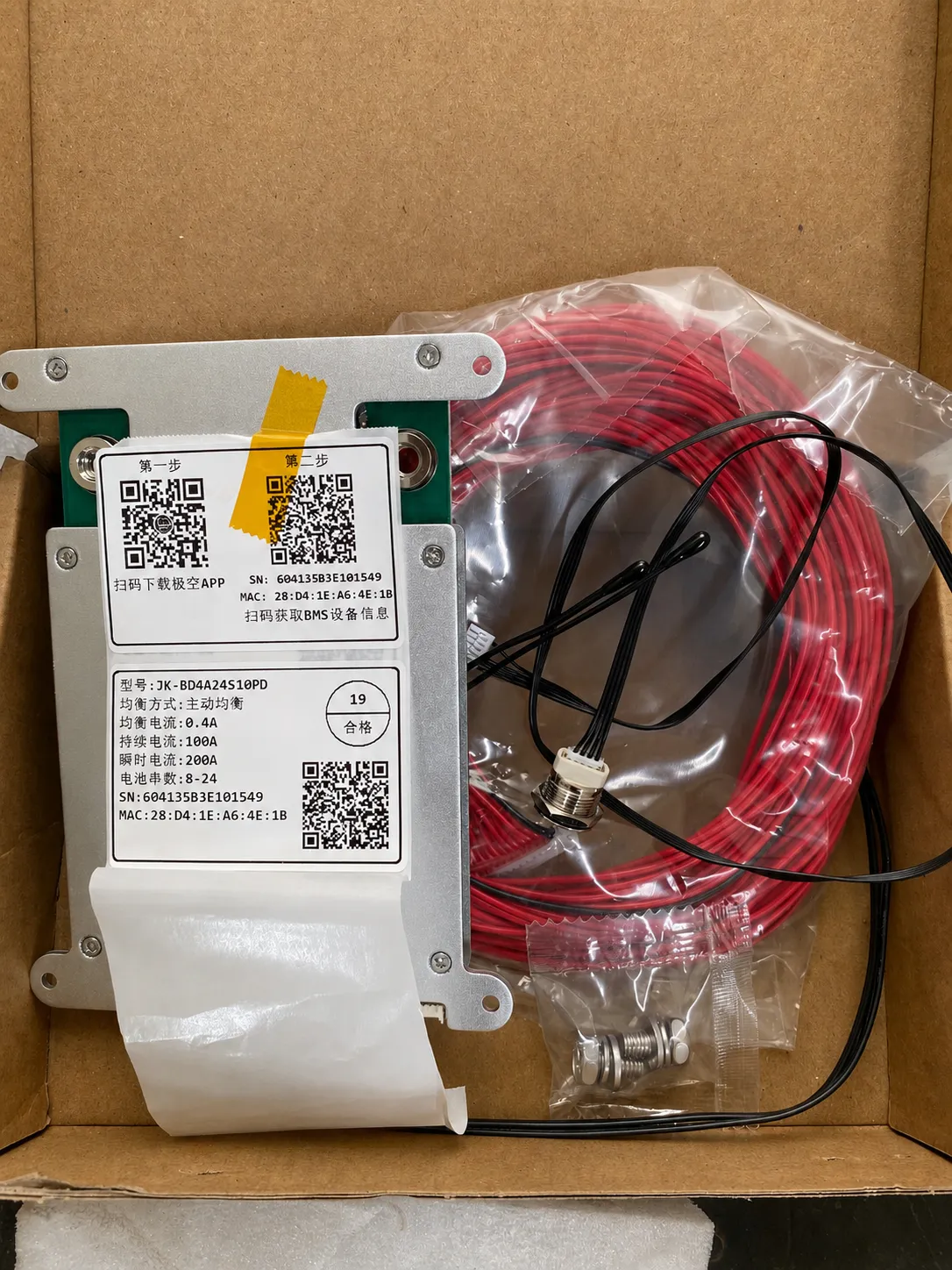

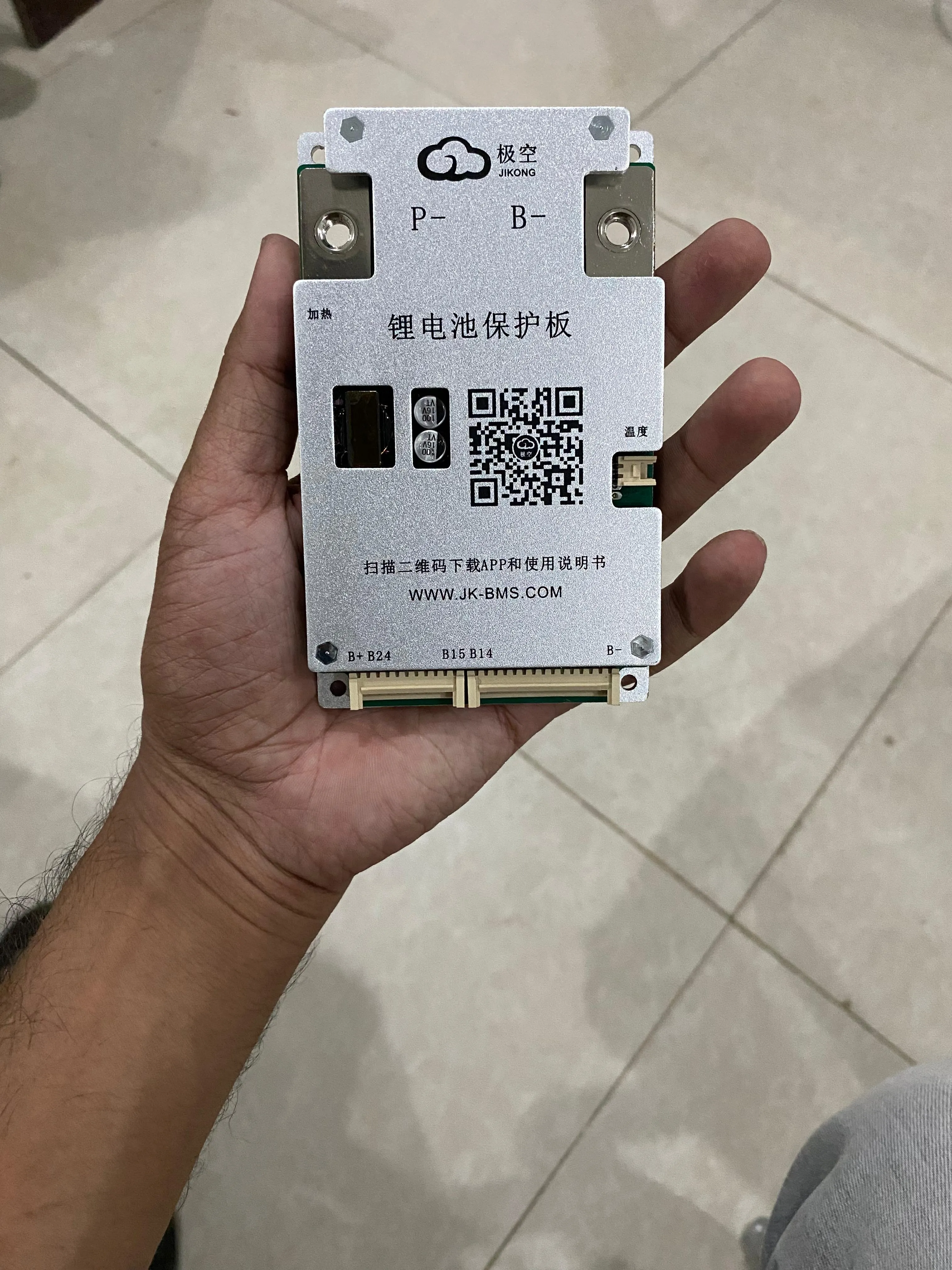

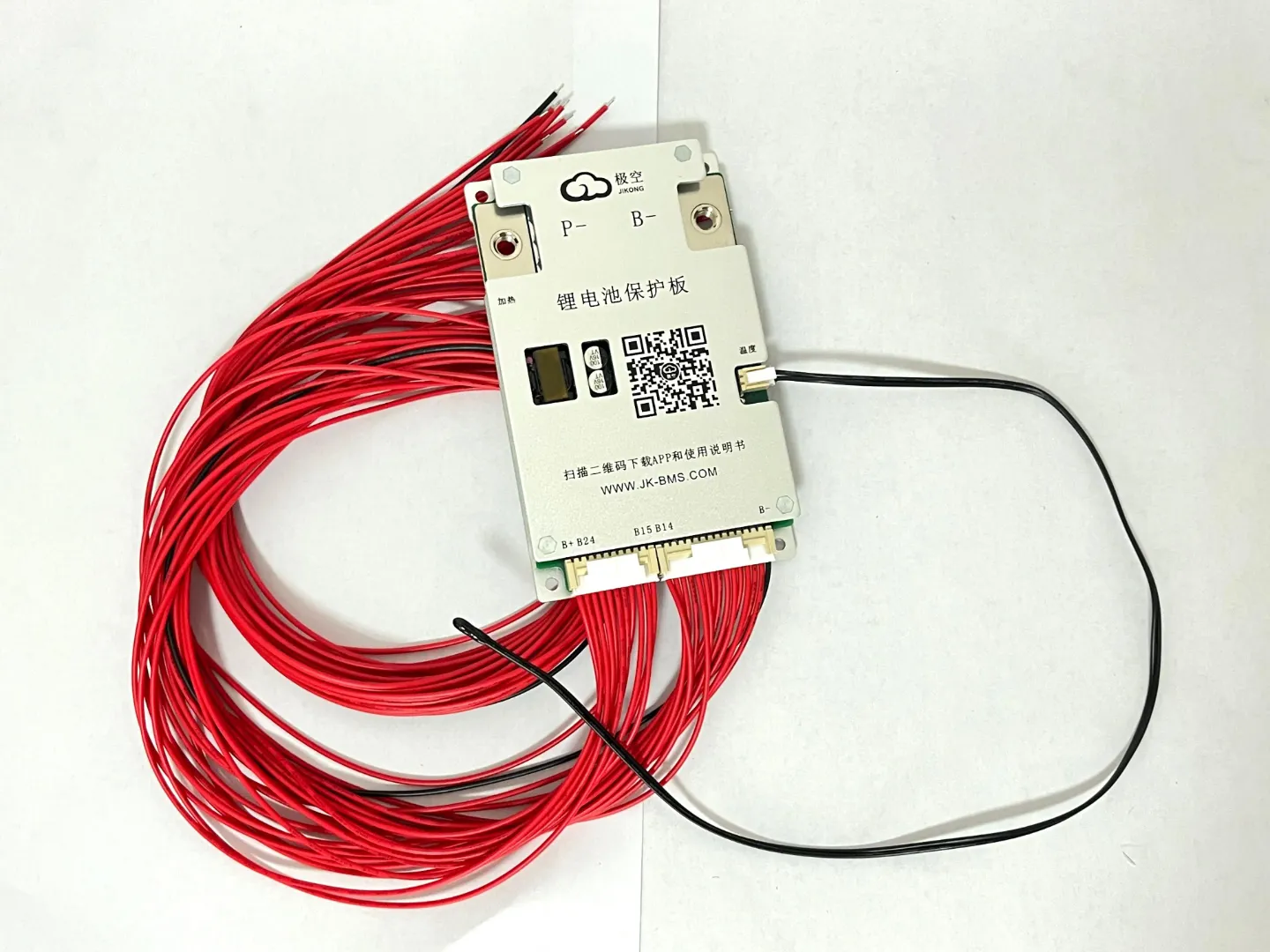

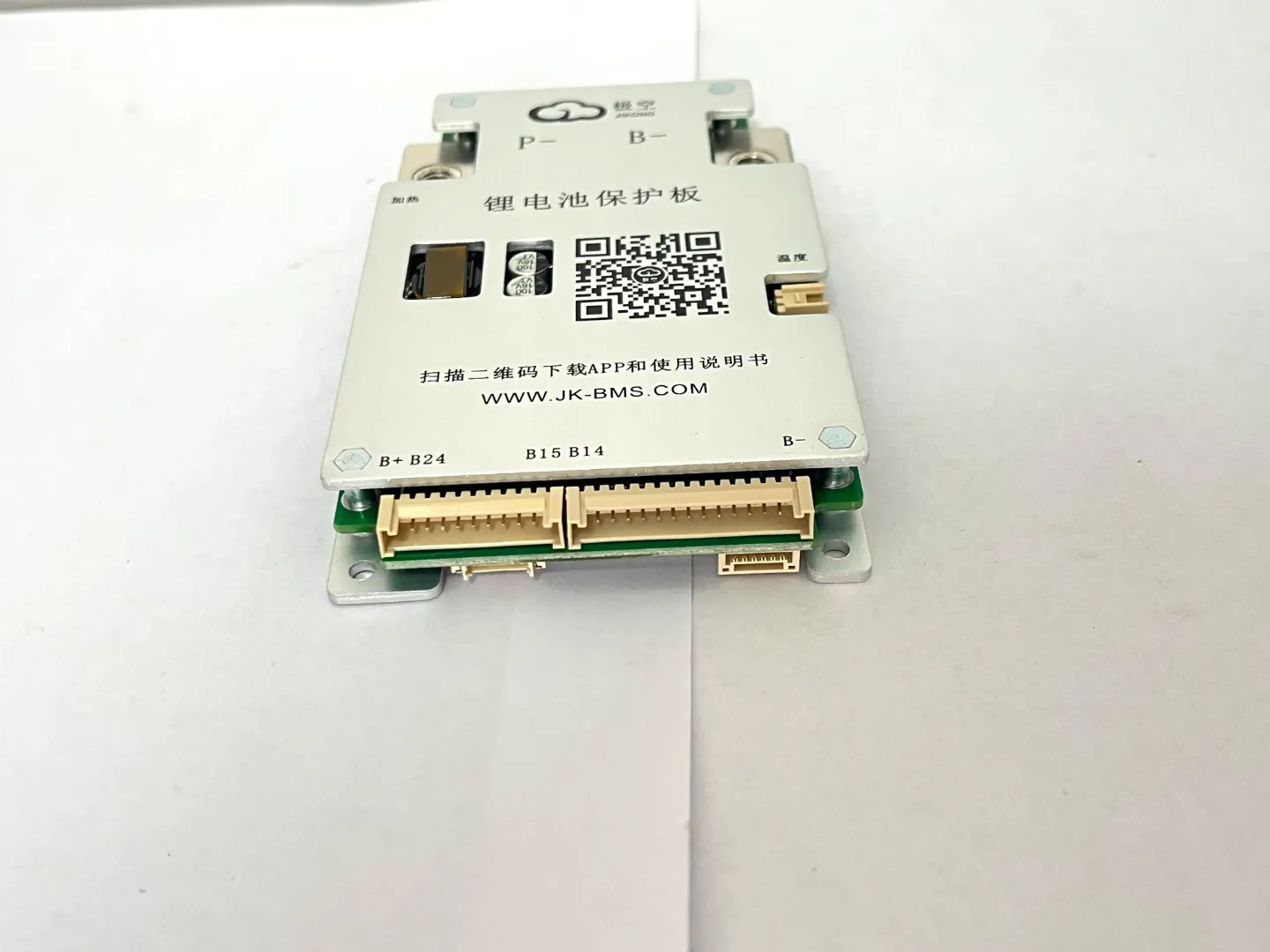

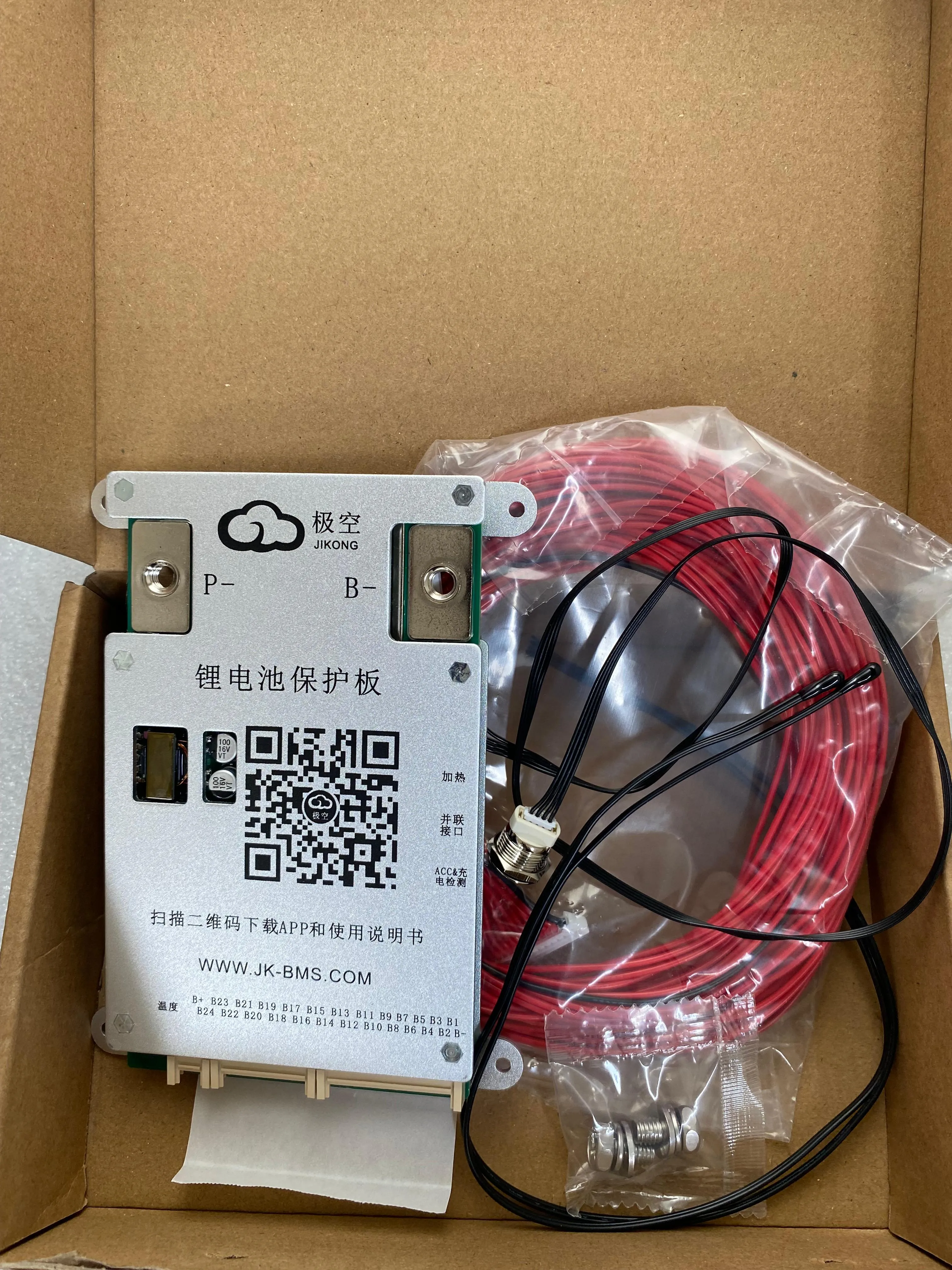

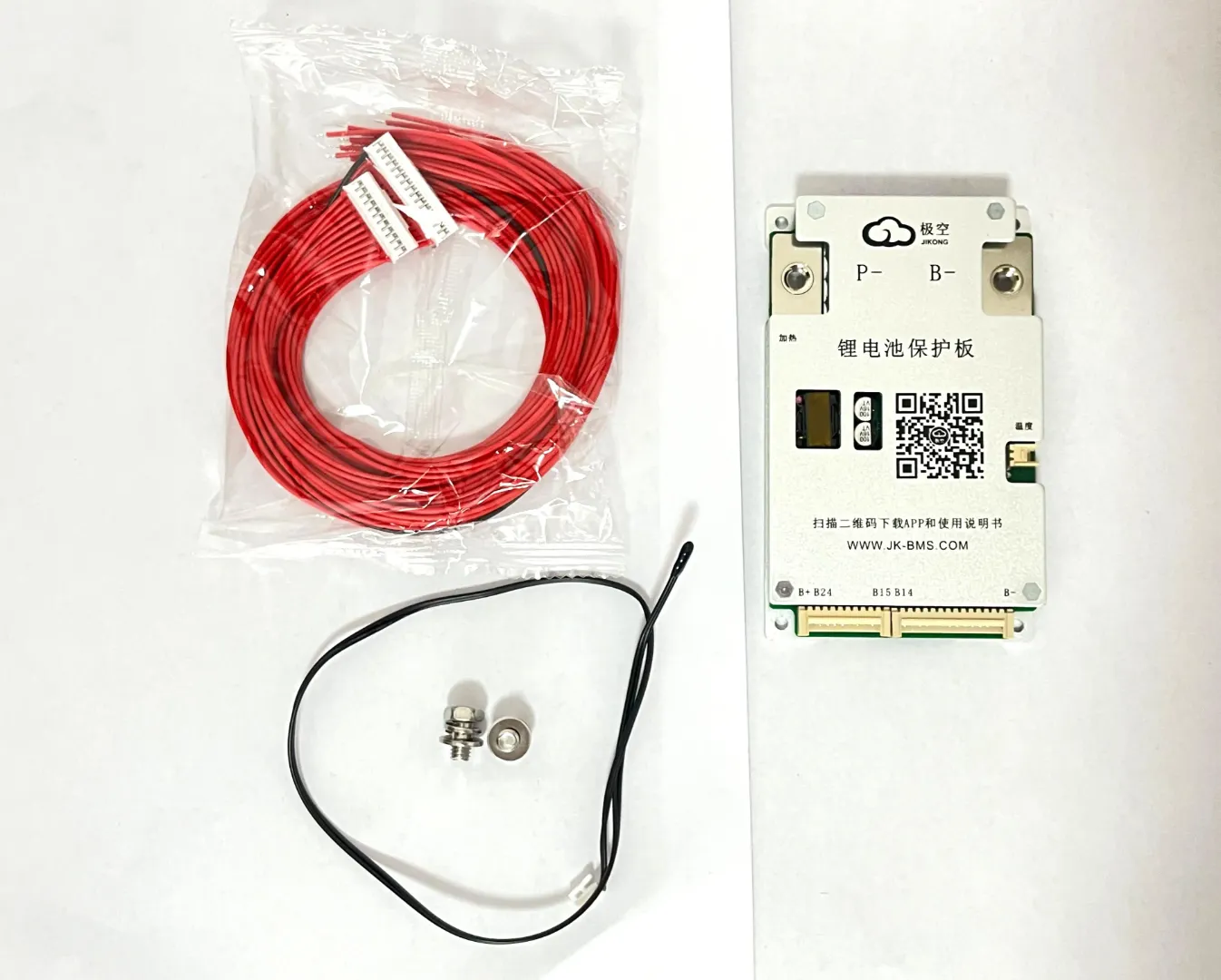

JK-BD4A24S10P Smart BMS 100A with 0.4A Active Balancer 8S-24S
Category: BMS
1 / 8
Product Description
The JK-BD4A24S10P Smart Active Balance BMS is a professional Battery Management System designed for 8S–24S lithium battery packs. With 0.4A Active Cell Balancing, 100A continuous charge/discharge current, Bluetooth monitoring and LCD display support, it provides reliable cell balancing, battery protection and real-time monitoring.
It supports LiFePO4, Lithium-Ion and LTO batteries, making it suitable for solar energy storage, inverter batteries, EVs, electric bikes, UPS systems and custom lithium battery packs.
Product Highlights
✅ Model: JK-BD4A24S10P
✅ 100A Continuous Charge & Discharge
✅ 200A Maximum/Peak Discharge Current
✅ 0.4A Active Balancing
✅ Supports 8S–24S LiFePO4
✅ Supports 7S–24S Lithium-Ion
✅ Supports 12S–24S LTO
✅ Bluetooth Mobile App Monitoring
✅ LCD Display Support
✅ Smart Cell Voltage Monitoring
✅ Temperature Monitoring
✅ Overcharge Protection
✅ Over-Discharge Protection
✅ Overcurrent Protection
✅ Short Circuit Protection
✅ Common Port Design
Product Features
0.4A Active Cell Balancing
The built-in 0.4A Active Balancer continuously helps equalize cell voltages, improving battery performance, usable capacity and overall battery lifespan.
Wide Battery Compatibility
The JK-BD4A24S10P supports multiple lithium chemistries:
LiFePO4: 8S–24S
Lithium-Ion: 7S–24S
LTO: 12S–24S
100A Continuous Current
Designed for battery packs requiring up to 100A continuous charging and discharging, making it suitable for solar, inverter and energy-storage applications.
200A Peak Discharge
The BMS can handle up to 200A maximum discharge current for short-duration high-load requirements.
Bluetooth Smart Monitoring
Monitor battery parameters through the JK mobile application, including cell voltages, pack voltage, current, temperature and protection status.
LCD Display Support
The display interface allows compatible JK displays to provide convenient real-time battery information.
Advanced Battery Protection
The BMS provides protection against:
- Overcharge
- Over-Discharge
- Overcurrent
- Short Circuit
- Over Temperature
- Cell Voltage Abnormalities
- Technical Specifications
- Specification Details
- Model JK-BD4A24S10P
- BMS Type Smart Active Balance BMS
- LiFePO4 8S–24S
- Lithium-Ion 7S–24S
- LTO 12S–24S
- Continuous Charge Current 100A
- Continuous Discharge Current 100A
- Maximum/Peak Discharge 200A
- Active Balancing Current 0.4A
- Balance Method Active Balance
- Communication Bluetooth; RS485/CAN depending on version
- Display Supported
- Port Design Common Port
- Voltage Range 20–100V
- Temperature Sensors Up to 3 depending on configuration
The manufacturer documentation lists CAN and RS485 as optional interfaces on this model family, so for your website listing it is better to mention them as version-dependent/optional unless your physical unit specifically has those ports.
Applications
✔ Solar Energy Storage Systems
✔ Home Inverter Batteries
✔ Hybrid & Off-Grid Solar Systems
✔ UPS Backup Batteries
✔ Electric Vehicles (EV)
✔ Electric Bikes & Scooters
✔ 24V LiFePO4 Battery Packs
✔ 48V LiFePO4 Battery Packs
✔ 60V Lithium Battery Systems
✔ 72V Battery Systems
✔ DIY Lithium Battery Projects
✔ Industrial Energy Storage
Why Choose JK-BD4A24S10P?
✔ Genuine JK Smart BMS Technology
✔ 0.4A Active Cell Balancing
✔ 100A Continuous Current
✔ 200A Maximum Discharge Capability
✔ Wide 8S–24S Battery Support
✔ LiFePO4, Lithium-Ion & LTO Compatibility
✔ Bluetooth Mobile Monitoring
✔ LCD Display Support
✔ Professional Battery Protection
✔ Suitable for Solar, EV & Energy Storage Applications
