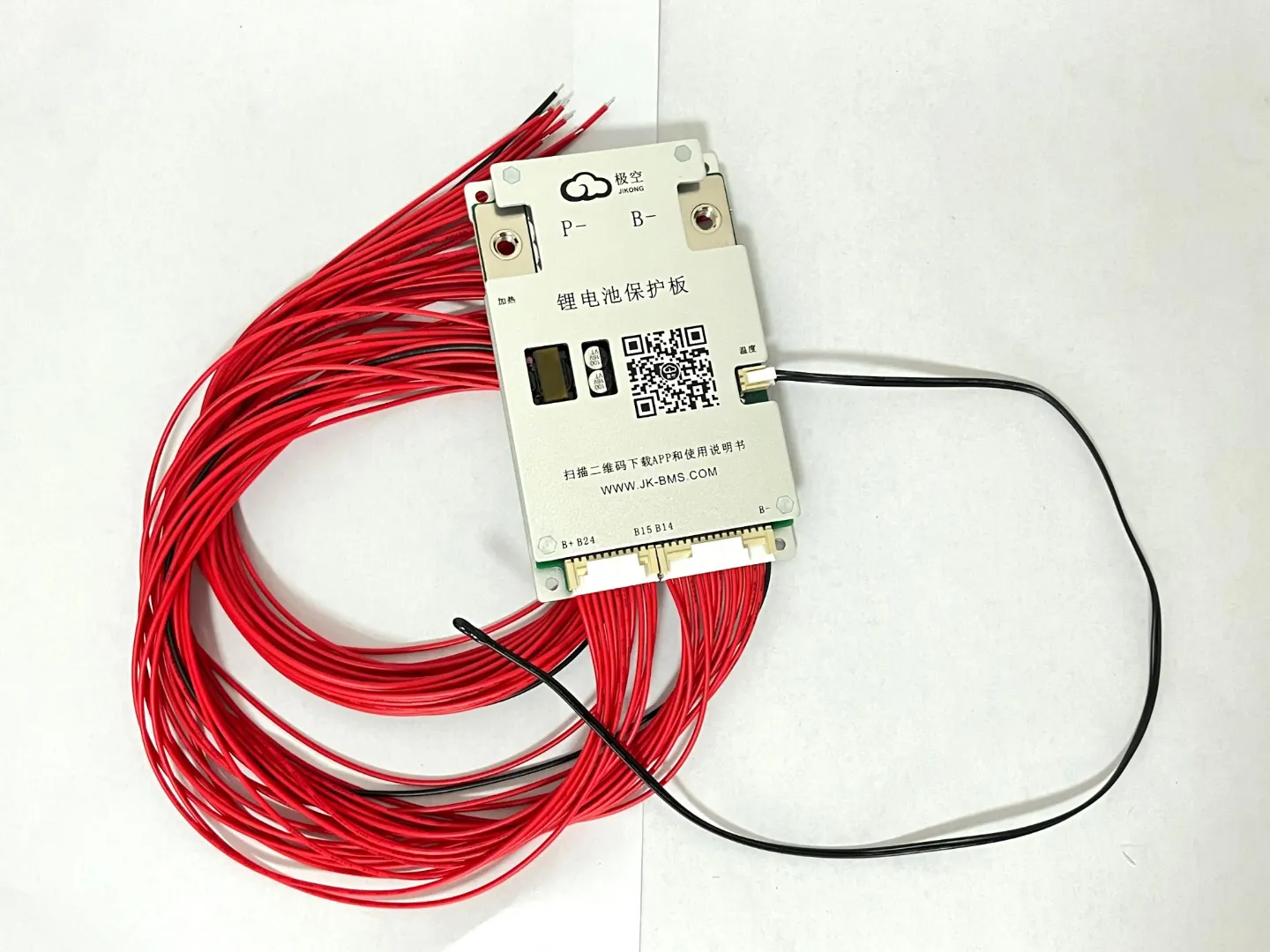

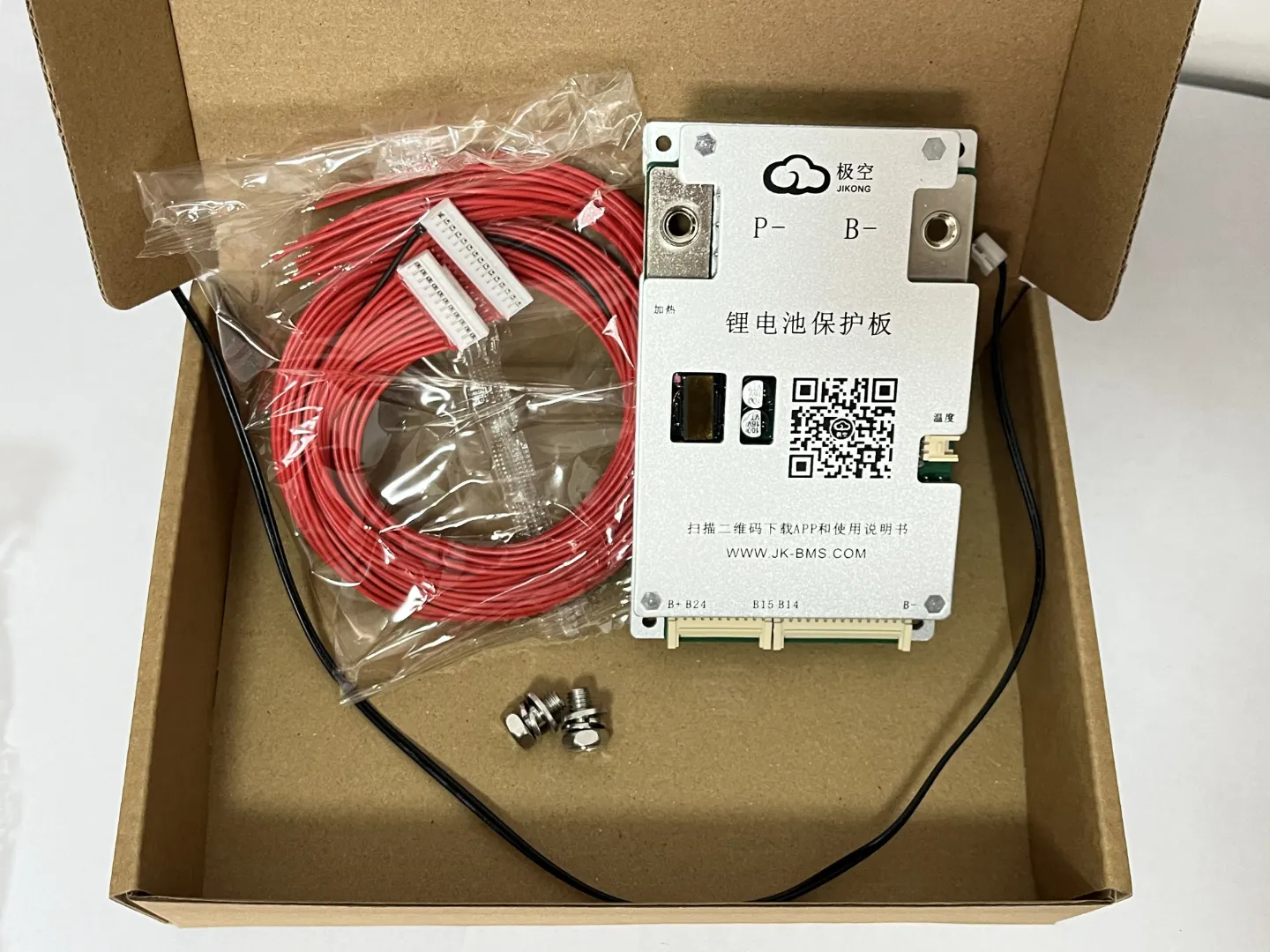

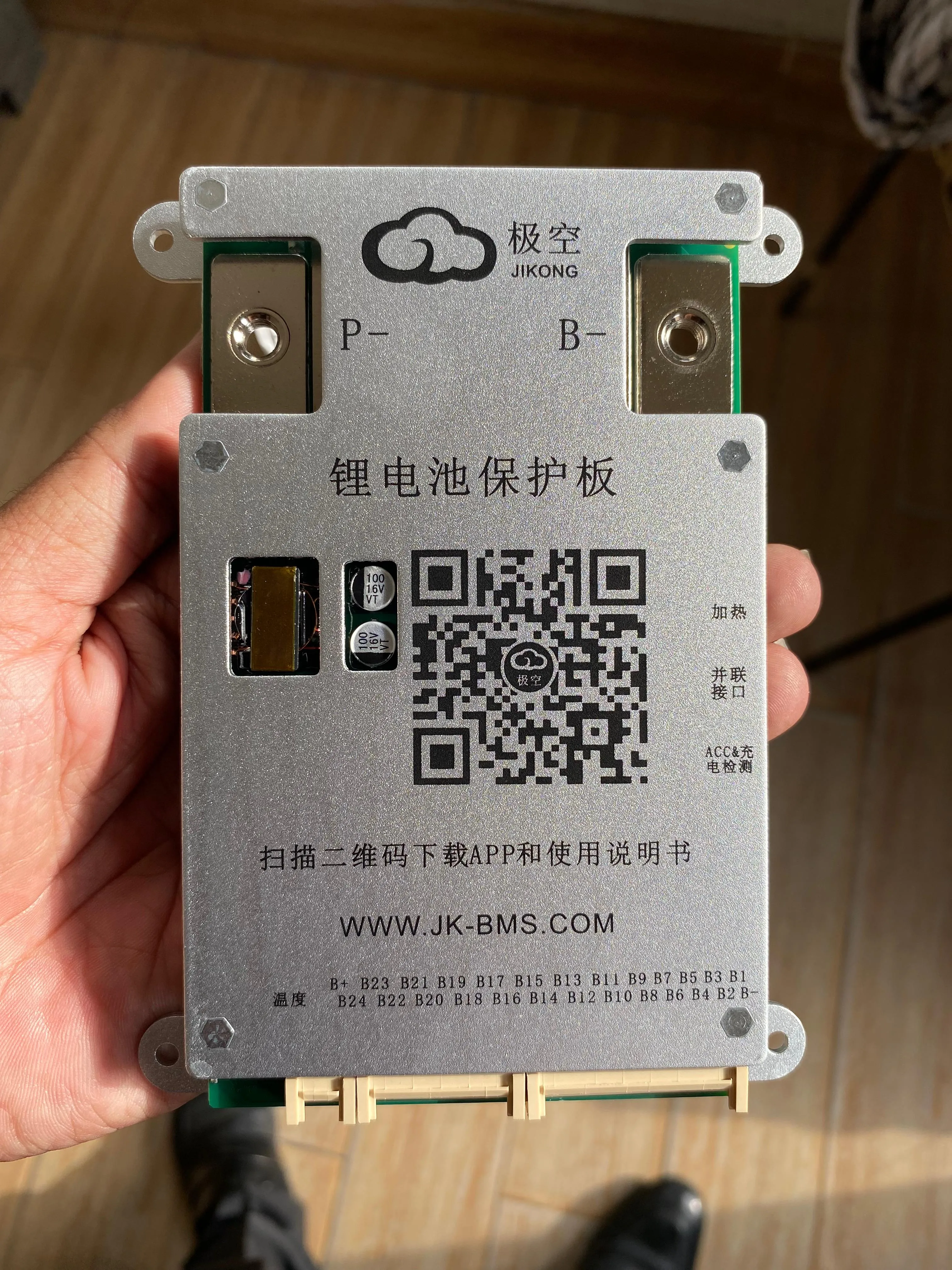

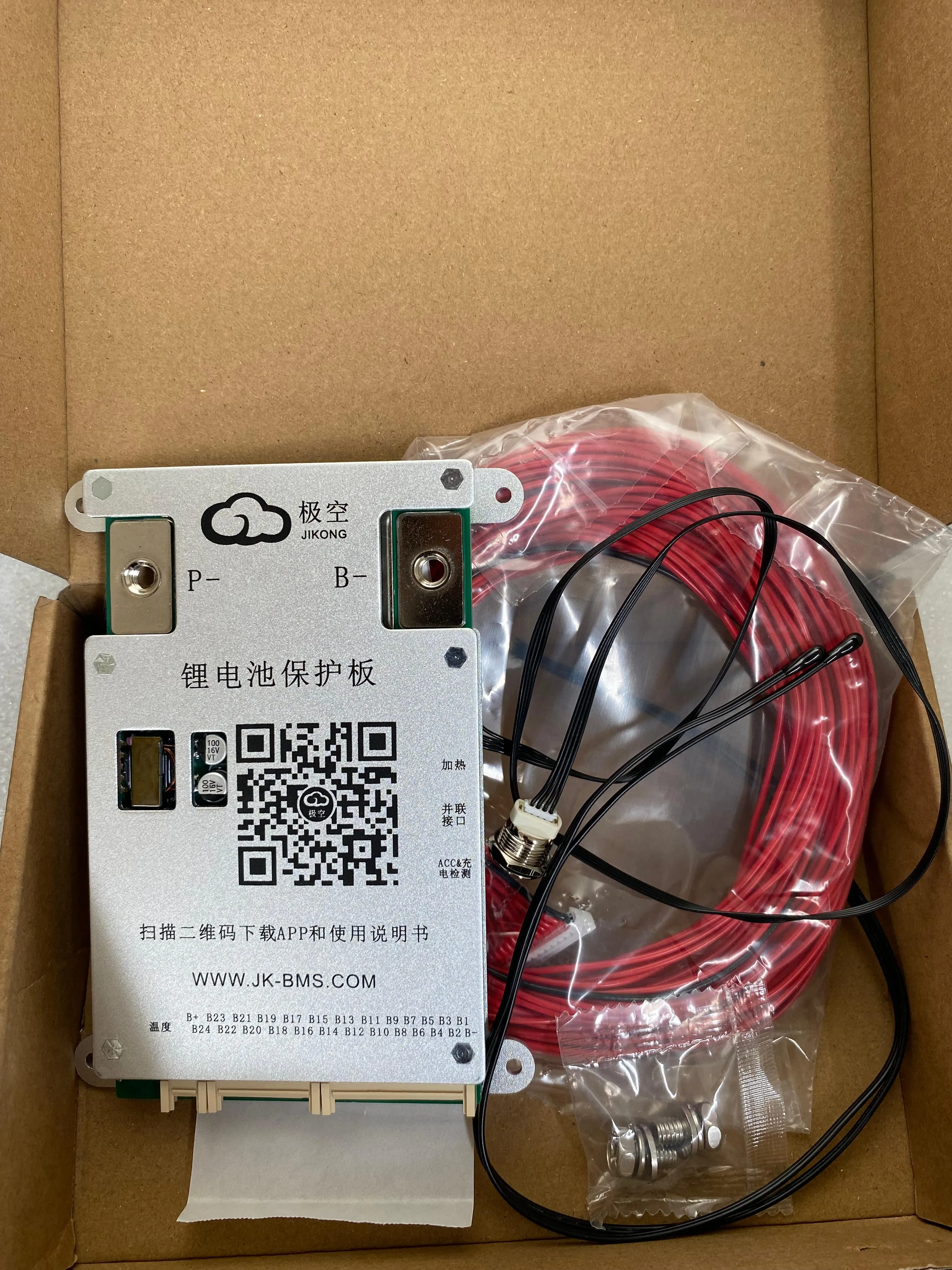

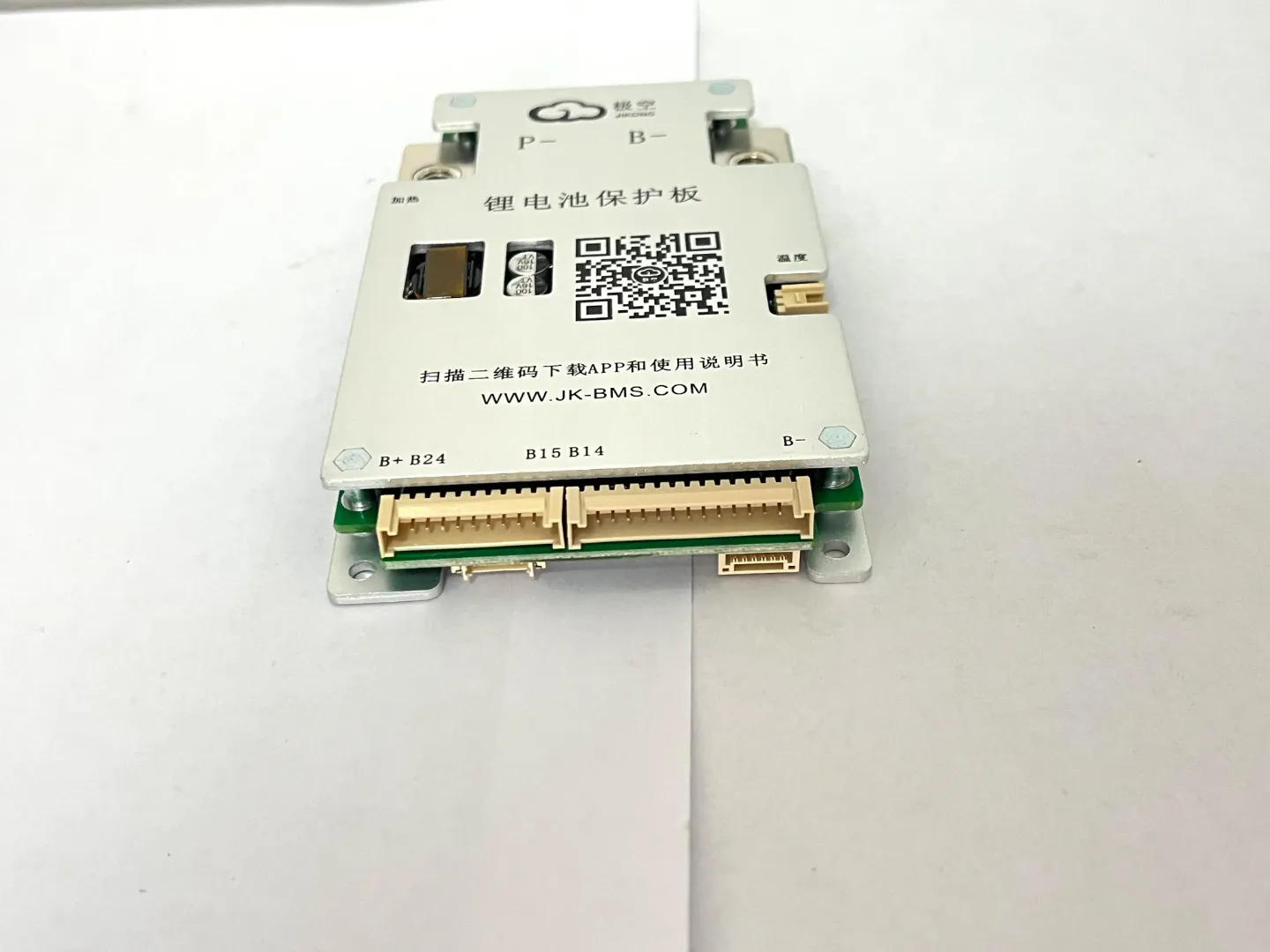

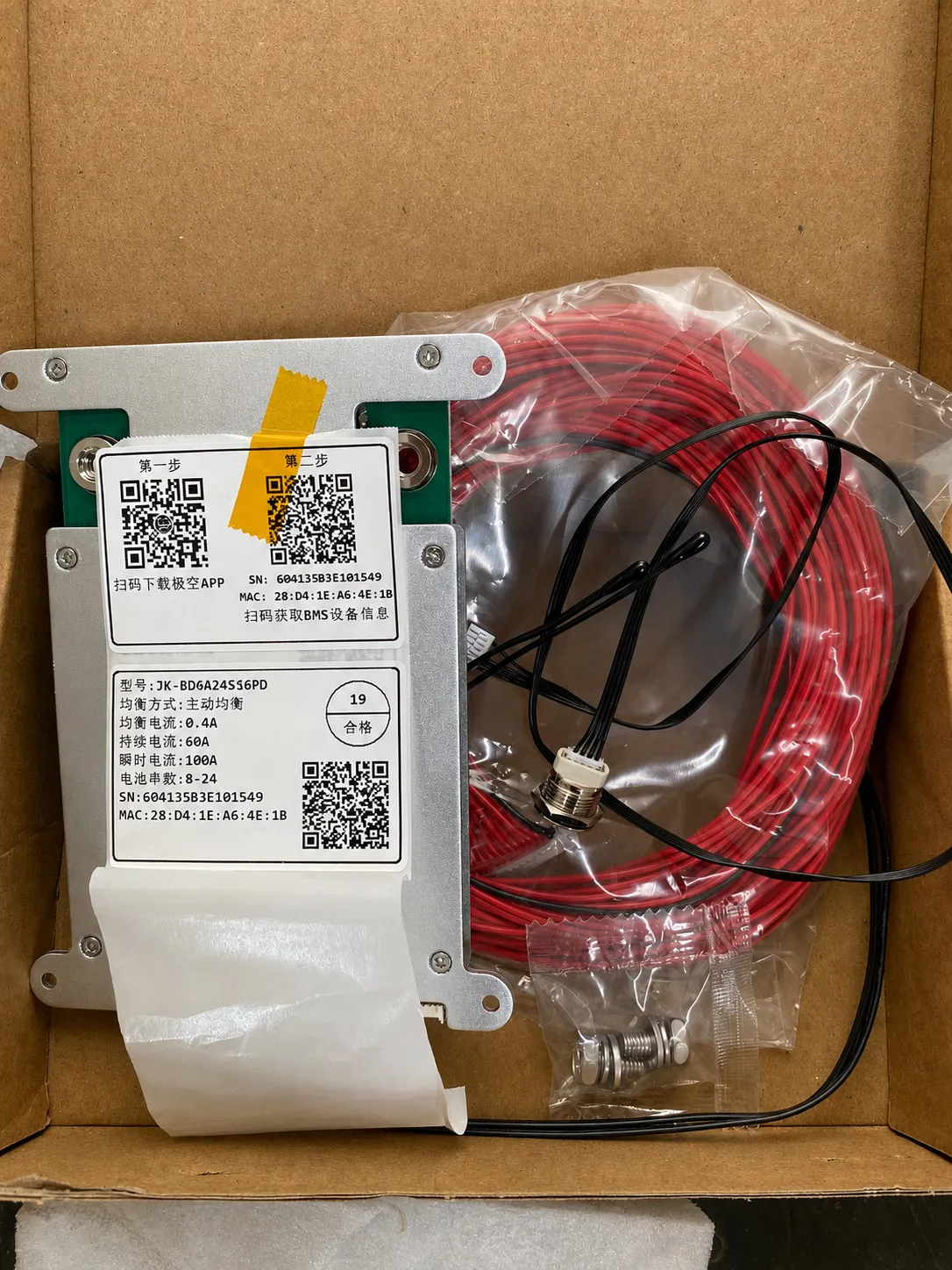

JK-BD4A24S6P Smart BMS 60A with 0.4A Active Balancer 8S-24S
Category: BMS
Product Description
The JK-BD4A24S6P Smart Active Balance BMS is a reliable Battery Management System designed for a wide range of lithium battery applications. It supports 8S–24S LiFePO4, 7S–24S Lithium-ion, and 14S–24S LTO battery configurations.
With 0.4A Active Balancing, Bluetooth monitoring and RS485 communication, the BMS provides accurate cell monitoring, intelligent battery protection and improved battery performance. It is suitable for solar energy storage, electric vehicles, UPS systems, inverter batteries and custom lithium battery packs.
Product Highlights
✅ Model: JK-BD4A24S6P
✅ 60A Continuous Current
✅ 0.4A Active Balancing
✅ 8S–24S LiFePO4 Support
✅ 7S–24S Lithium-ion Support
✅ 14S–24S LTO Support
✅ Bluetooth Mobile App Monitoring
✅ RS485 Communication
✅ Smart Cell Voltage Monitoring
✅ Temperature Monitoring
✅ Overcharge & Over-Discharge Protection
✅ Overcurrent Protection
✅ Short Circuit Protection
✅ Common Port Design
✅ Compact Aluminum Housing
Product Features
0.4A Active Cell Balancing
The built-in 0.4A Active Balancer helps maintain voltage consistency
between individual cells, improving battery efficiency and helping extend the
overall battery lifespan.
Wide Battery Configuration Support
The JK-BD4A24S6P is suitable for multiple battery configurations,
supporting:
LiFePO4: 8S–24S
Lithium-ion: 7S–24S
LTO: 14S–24S
Bluetooth Monitoring
Connect the BMS to a compatible mobile application to monitor important
battery parameters such as cell voltage, pack voltage, current, temperature
and protection status.
RS485 Communication
The standard RS485 interface provides communication capability for
compatible monitoring and control systems. CAN Bus and heating interfaces may
be customized depending on the specific version.
Smart Battery Protection
The BMS provides protection against:
Overcharge
Over-Discharge
Overcurrent
Short Circuit
Temperature Problems
Cell Voltage Abnormalities

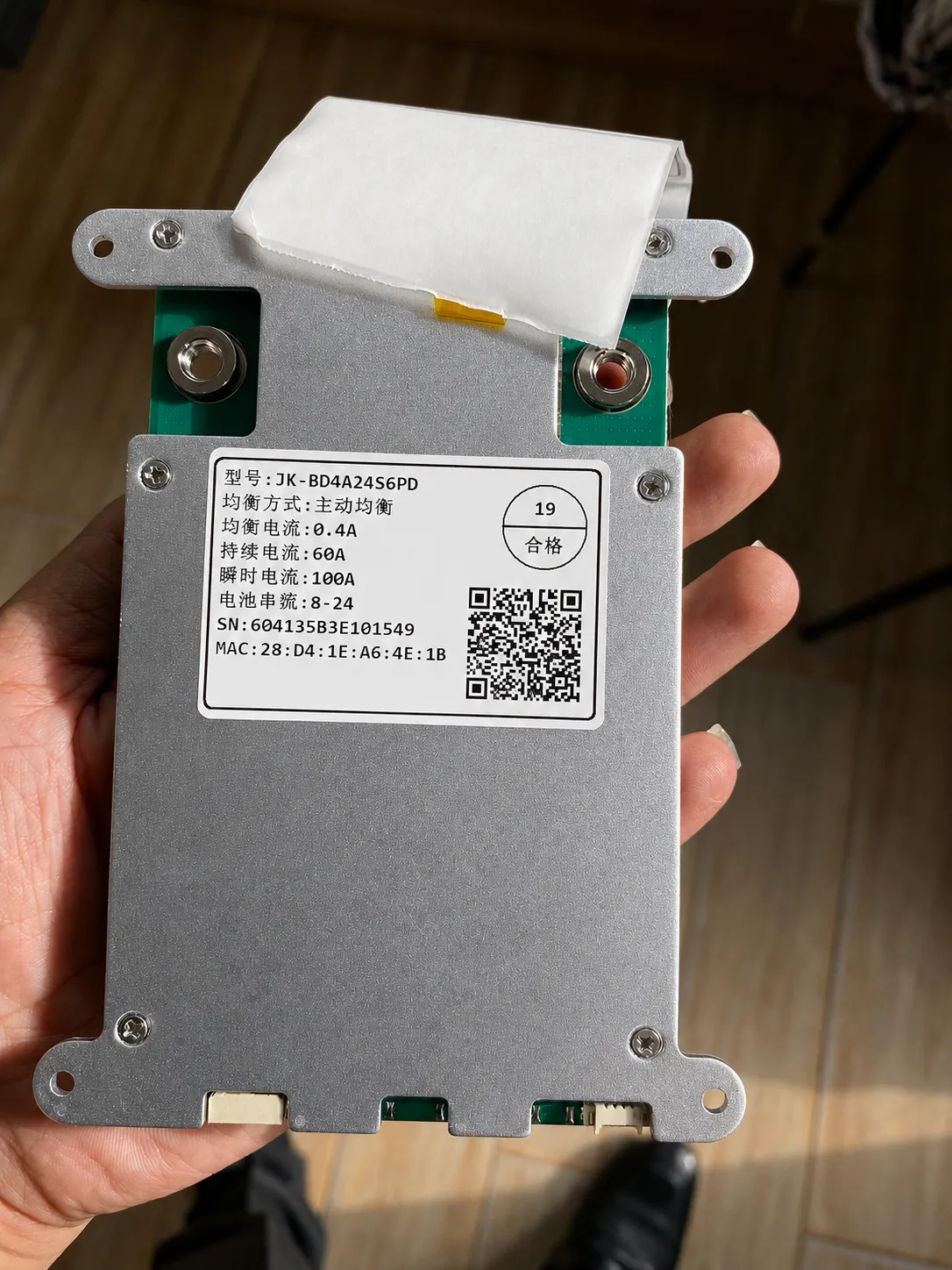

Technical Specifications
Specification Details
Model JK-BD4A24S6P
BMS Type Smart Active Balance BMS
LiFePO4 8S–24S
Lithium-ion 7S–24S
LTO 14S–24S
Continuous Current 60A
Active Balancing Current 0.4A
Balance Method Active Balance
Communication Bluetooth + RS485
Working Voltage Range 20–100V
Temperature Sensors 3
Port Design Common Port
Size Approx. 160 × 102 × 20 mm*
Applications
✔ Solar Energy Storage Systems
✔ LiFePO4 Battery Packs
✔ Lithium-ion Battery Packs
✔ LTO Battery Packs
✔ Electric Vehicles (EV)
✔ Electric Bikes & Scooters
✔ UPS Backup Systems
✔ Inverter Battery Systems
✔ Home Energy Storage
✔ DIY Lithium Battery Projects
✔ Industrial Energy Storage
