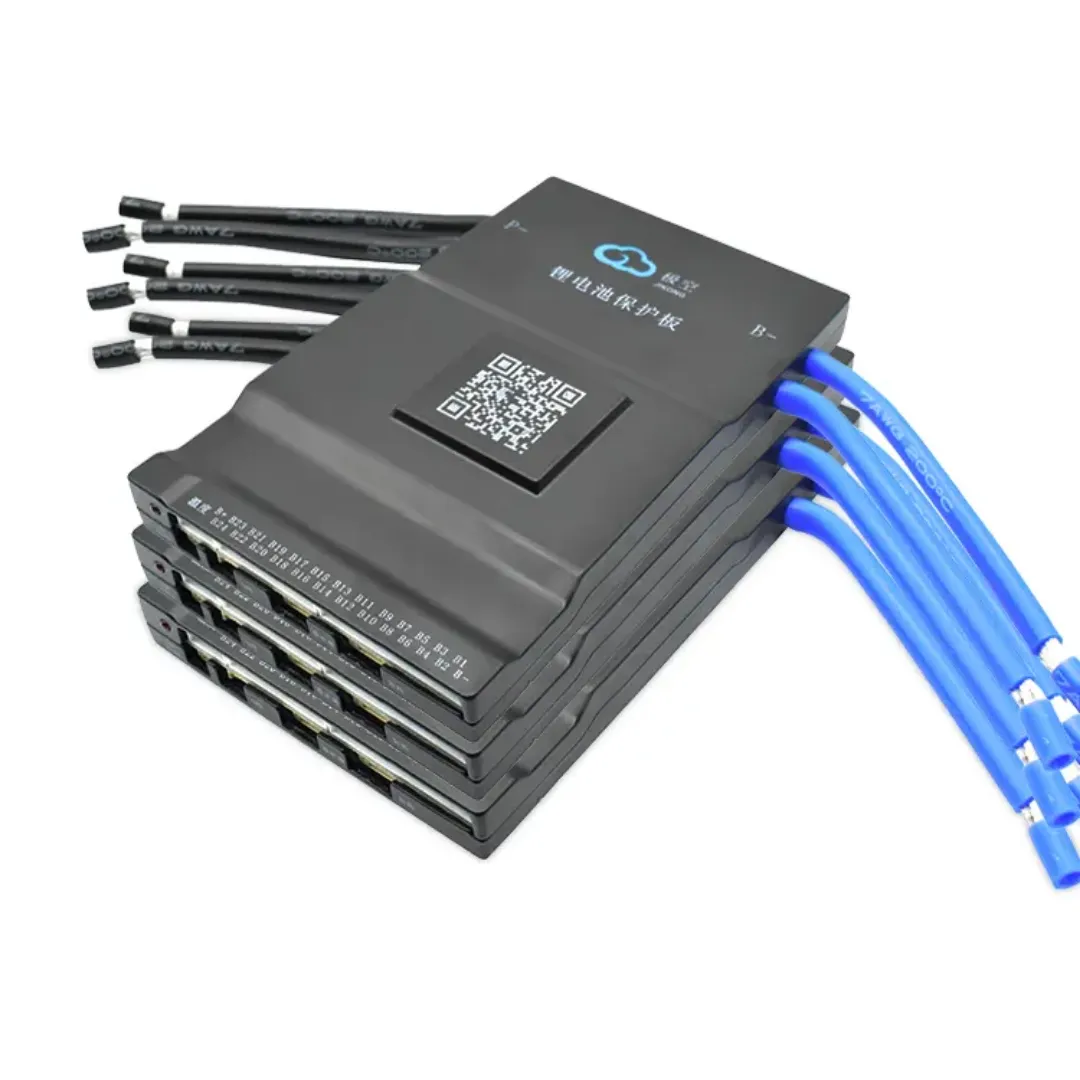

JK-BD6A24S15P Smart BMS 150A with 0.6A Active Balancer 8S-24S
Category: BMS
Product Description
The JK-BD6A24S15P Smart Active Balance BMS is a high-performance Battery Management System designed for 8S–24S lithium battery packs. It provides 150A continuous charge/discharge current, 0.6A Active Cell Balancing, Bluetooth monitoring and support for compatible communication interfaces.
The BMS supports LiFePO4, Lithium-Ion and LTO batteries, making it an excellent choice for solar energy storage, inverter batteries, electric vehicles, electric bikes, UPS systems and high-performance lithium battery packs.
Product Highlights
✅ Model: JK-BD6A24S15P
✅ 150A Continuous Charge & Discharge Current
✅ 300A Peak / Maximum Discharge Current
✅ 0.6A Active Balancing
✅ 8S–24S Battery Support
✅ LiFePO4 Battery Compatible
✅ Lithium-Ion Battery Compatible
✅ LTO Battery Compatible
✅ Built-in Bluetooth Monitoring
✅ RS485 Communication Support/Option
✅ LCD Display Options Available
✅ Smart Cell Voltage Monitoring
✅ Temperature Monitoring
✅ Advanced Battery Protection
✅ Common Port Design
Product Features
0.6A Active Cell Balancing
The built-in 0.6A Active Balancer transfers energy between cells to reduce
voltage differences and improve battery consistency, usable capacity and
overall battery lifespan.
Powerful 150A Performance
With 150A continuous charge/discharge capability and up to 300A maximum
instantaneous discharge, the JK-BD6A24S15P is suitable for high-power battery
and energy-storage applications.
Wide Battery Configuration
Supports a broad range of battery
configurations:
LiFePO4: 8S–24S
Lithium-Ion: 7S–24S
LTO: 12S–24S
This makes it suitable for various 24V, 36V, 48V, 60V and 72V-class battery
systems, depending on chemistry and series configuration.
Bluetooth Smart Monitoring
Monitor important battery parameters through the JK BMS mobile application,
including cell voltage, pack voltage, current, temperature, SOC and
protection status.

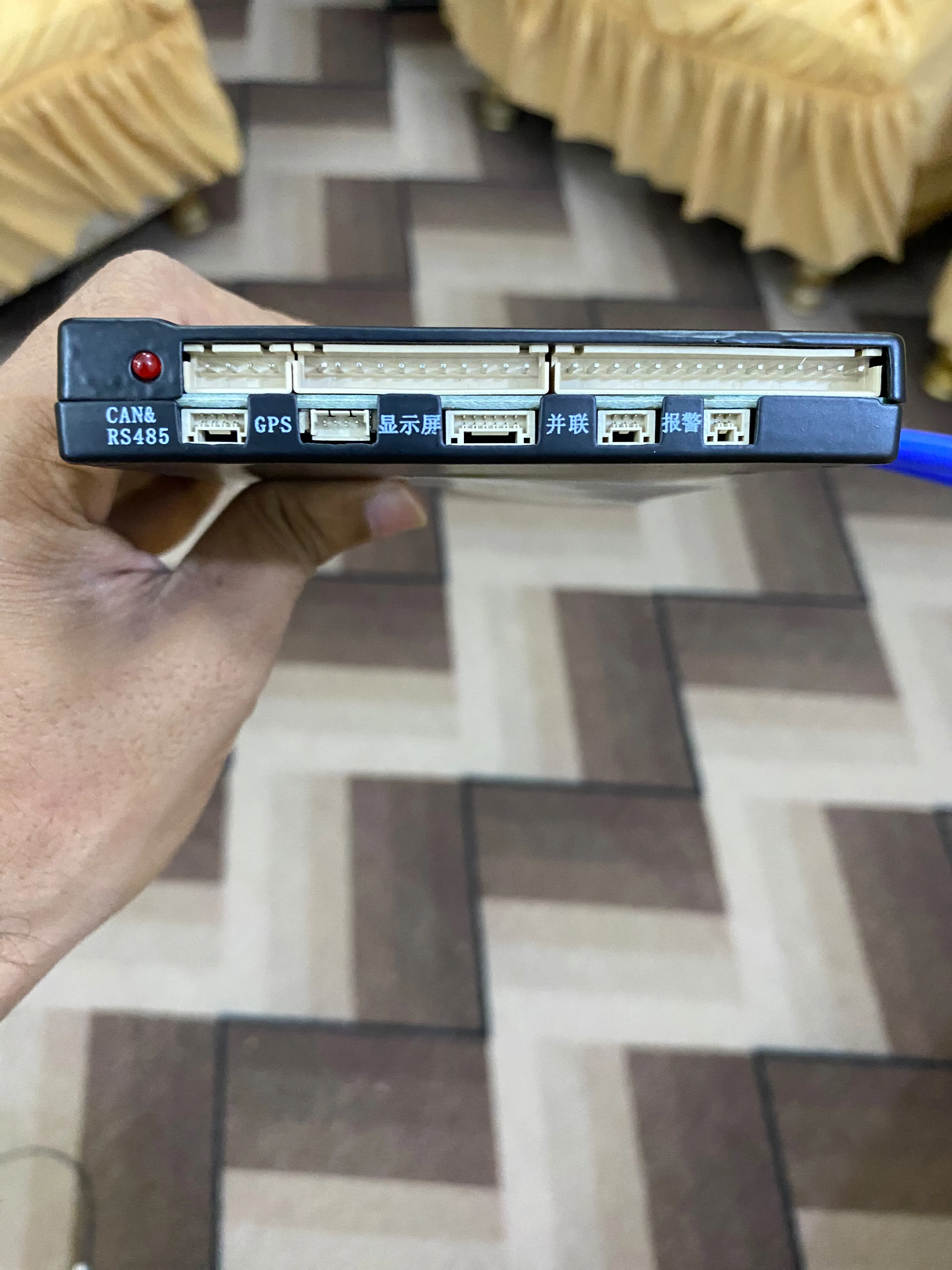

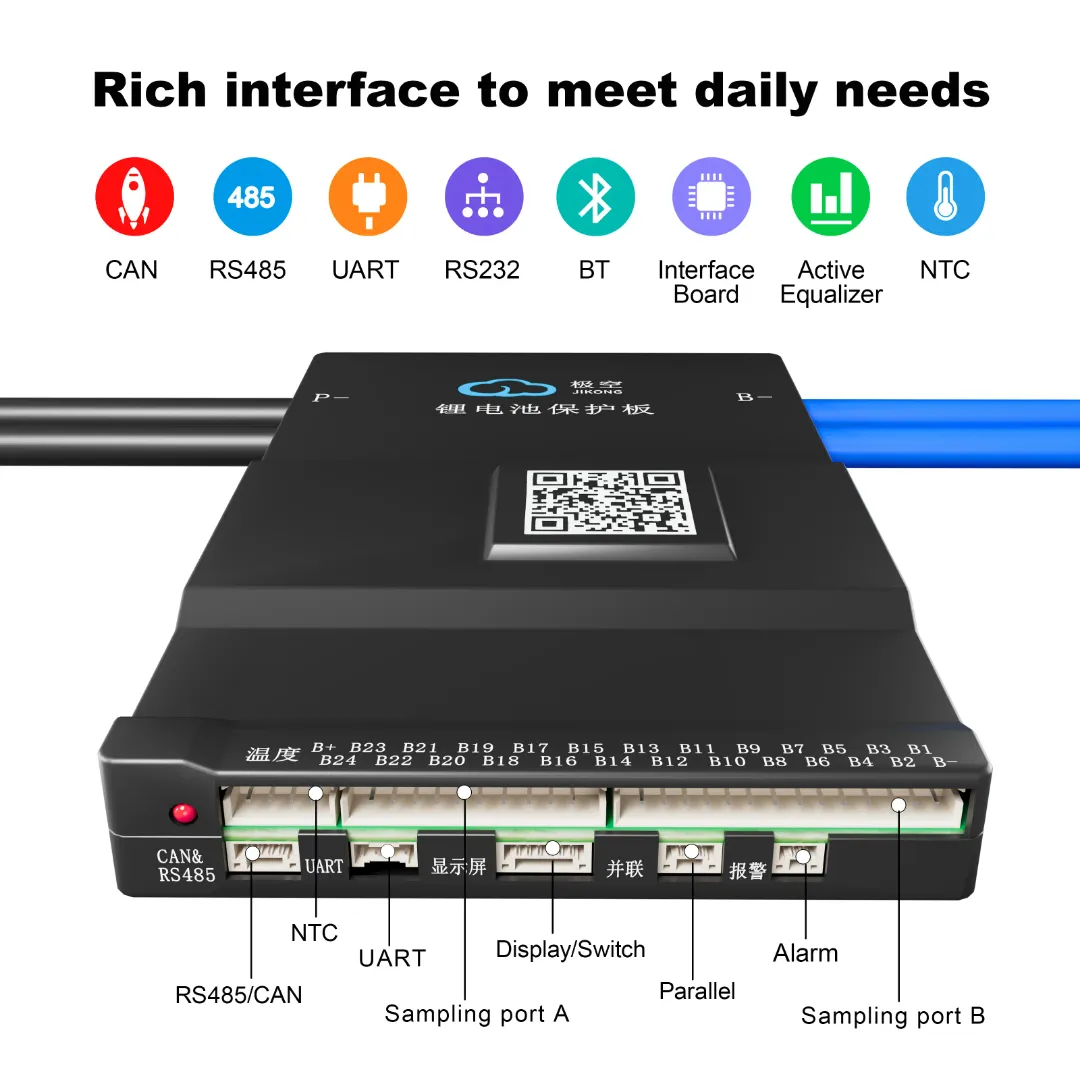

Communication Support
The model is available with Bluetooth, while RS485 and CAN can depend on
the selected hardware/version. For a product listing, specify the exact
communication interface of your physical unit.
Advanced Battery Protection
The BMS provides protection against:
The official/current product listings confirm the 8–24S, 150A and 0.6A
configuration; some versions list RS485 as standard while CAN is offered as
an option.
Protection Functions
✔ Over Charge Protection
✔ Over Discharge Protection
✔ Over Current Protection
✔ Short Circuit Protection
✔ Over Temperature Protection
✔ Cell Voltage Protection
✔ Active Cell Balancing
✔ Temperature Monitoring
✔ Adjustable Protection Parameters
Applications
✔ Solar Energy Storage Systems
✔ Home Inverter Batteries
✔ Hybrid & Off-Grid Solar Systems
✔ Electric Vehicles (EV)
✔ Electric Bikes & Scooters
✔ 48V LiFePO4 Battery Packs
✔ 60V Lithium Battery Systems
✔ 72V Battery Systems
✔ UPS Backup Systems
✔ RV & Camper Batteries
✔ DIY Lithium Battery Projects
✔ Industrial Energy Storage
