JK Smart LCD Display 4.3 Inch Touch Screen
Category: BMS
Product Description
Product Highlights
- 4.3 Inch TFT Touch Screen
- V19 Version – Dedicated for JK PB Series BMS
- 480 × 272 Resolution
- Real-Time Battery Voltage & Current Monitoring
- Displays Battery SOC / Charging Percentage
- Displays Individual Cell Voltage
- Shows Maximum & Minimum Cell Voltage
- Displays Battery Capacity & Remaining Capacity
- Displays Battery Temperature
- Shows Charging & Discharging Status
- Supports Multiple Battery Pack Monitoring
- English & Multi-Language Interface
- TTL / UART Communication
- Wide 9V–36V Working Voltage
- Suitable for LiFePO4, Lithium-Ion & LTO Battery Systems when used with a compatible JK PB V19 BMS
- Ideal for Home Energy Storage, Solar Systems, Inverter Batteries & Energy Storage Cabinets
The documented display specifications include 480×272 resolution, 9–36V supply range, LED backlight and -20°C to +70°C operating temperature.
Product Description
JK 4.3 Inch Touch LCD Display V19 is a smart monitoring display designed specifically for JK PB Series V19 Inverter BMS. It provides a clear and convenient way to monitor important battery parameters directly from the battery or energy-storage system.
The large 4.3-inch TFT touch screen can display battery total voltage, current, SOC, individual cell voltage, battery capacity, remaining capacity, temperature and charging/discharging status. It also provides information about connected battery packs, making it useful for home energy storage and inverter battery applications.
The display uses TTL/UART communication with the compatible JK PB V19 BMS and supports a default communication baud rate of 115200bps. The interface supports multiple languages, including English.
Compatible JK BMS Models
This display is designed for the following JK PB Series V19 BMS models:
JK-PB1A16S10P V19
JK-PB1A16S15P V19
JK-PB2A16S15P V19
JK-PB2A16S20P V19
JK-PB2A16S30P V19
Important: This V19 display should be used only with compatible JK PB Series V19 BMS models.
Technical Specifications
```` Details
Brand: JK / JIKONG
Product Type: Smart Touch LCD Display
Version: V19
Display Size: 4.3 Inch
Display Type: TFT LCD Touch Screen
Resolution: 480 × 272
Backlight: LED
Brightness: 300 nits
Working Voltage: 9V – 36V
Communication :TTL / UART
Default Baud Rate :115200 bps
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Language Support: English + Multiple Languages
Application: JK PB V19 Inverter BMS
Compatible Series: JK PB Series V19
Touch Control: Yes
Display Interface: Battery Monitoring & Settings
Specifications such as display size, resolution, brightness, voltage range and temperature range are based on the available V19 display documentation.

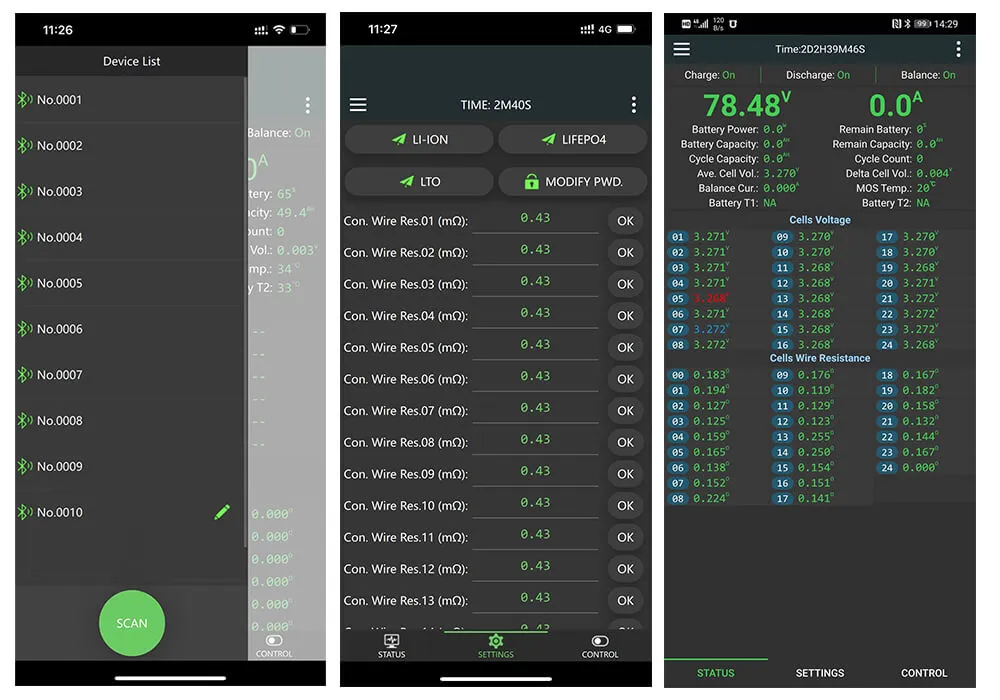

What Can Be Monitored?
The JK 4.3-inch display provides information such as:
Battery Information
Total Battery Voltage
Battery Current
Battery SOC %
Battery Capacity
Remaining Capacity
Battery Power
Cell Information
Individual Cell Voltage
Maximum Cell Voltage
Minimum Cell Voltage
Cell Voltage Difference
Temperature & Status
Battery Temperature
Charging Status
Discharging Status
Alarm Status
Battery Pack Status
Multi-Pack Information
Connected Battery Packs
Pack Status
Charge/Discharge information
Applications
Solar Energy Storage Systems
Home Energy Storage
LiFePO4 Battery Packs
Inverter Batteries
48V / 51.2V Energy Storage Batteries
Residential ESS
Commercial Energy Storage
Battery Cabinets
Solar Inverter Systems
Backup Power Systems
